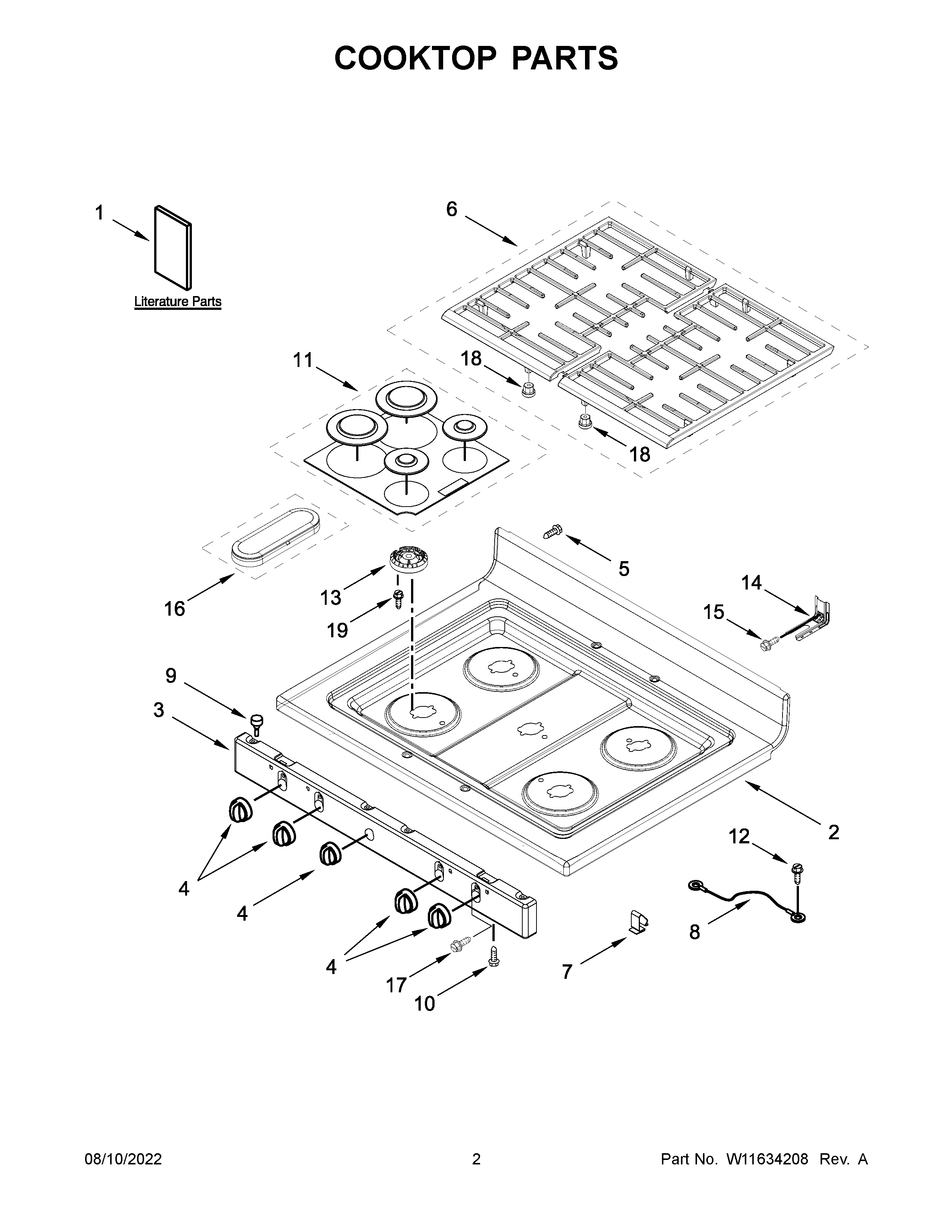

WFG505M0MB0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11465032 Whirlpool Wire Harness
NI	WP3391018 Whirlpool Wire Tie
NI	CLIP, WIRE
NI	INSULATION, MANIFOLD
NI	98015022 Whirlpool Bushing Assembly
NI	549193 Whirlpool Refrigerator Power Clamp
NI	CABINET (NOT A SERVICEABLE PART)
1A	GUIDE, USE AND CARE
1B	Safer Cooking Tips
1C	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
2A	COOKTOP (WHITE)
2	W11620479 Whirlpool Cooktop
3A	PANEL, MANIFOLD (WHITE)
3	PANEL, MANIFOLD (BLACK)
4A	W11620708 Whirlpool Knob
4	W11620491 Whirlpool Knob
5	WP98007225 Whirlpool Screw Assembly
6	W11603169 Whirlpool Burner Grate
7	CLIP, COOKTOP
8	3184020 Whirlpool Oven Wire
9	W10831827 Whirlpool Bumper
10	SCREW
11	W11605759 Whirlpool Burner Cap
12	W10850756 Whirlpool Screw
13	W11435630 Whirlpool Oven Burner Head
13B	W11435657 Whirlpool Burner Head
13A	W11435659 Whirlpool Burner Head
14	WPW10613666 Whirlpool Bracket
15	SCREW, ANTI-TIP KIT
16	W11475513 Whirlpool Top Burner Assembly
17	SCREW (STAINLESS)
18	W10919249 Whirlpool Burner Grate Foot
19	WP8273062 Whirlpool Screw
