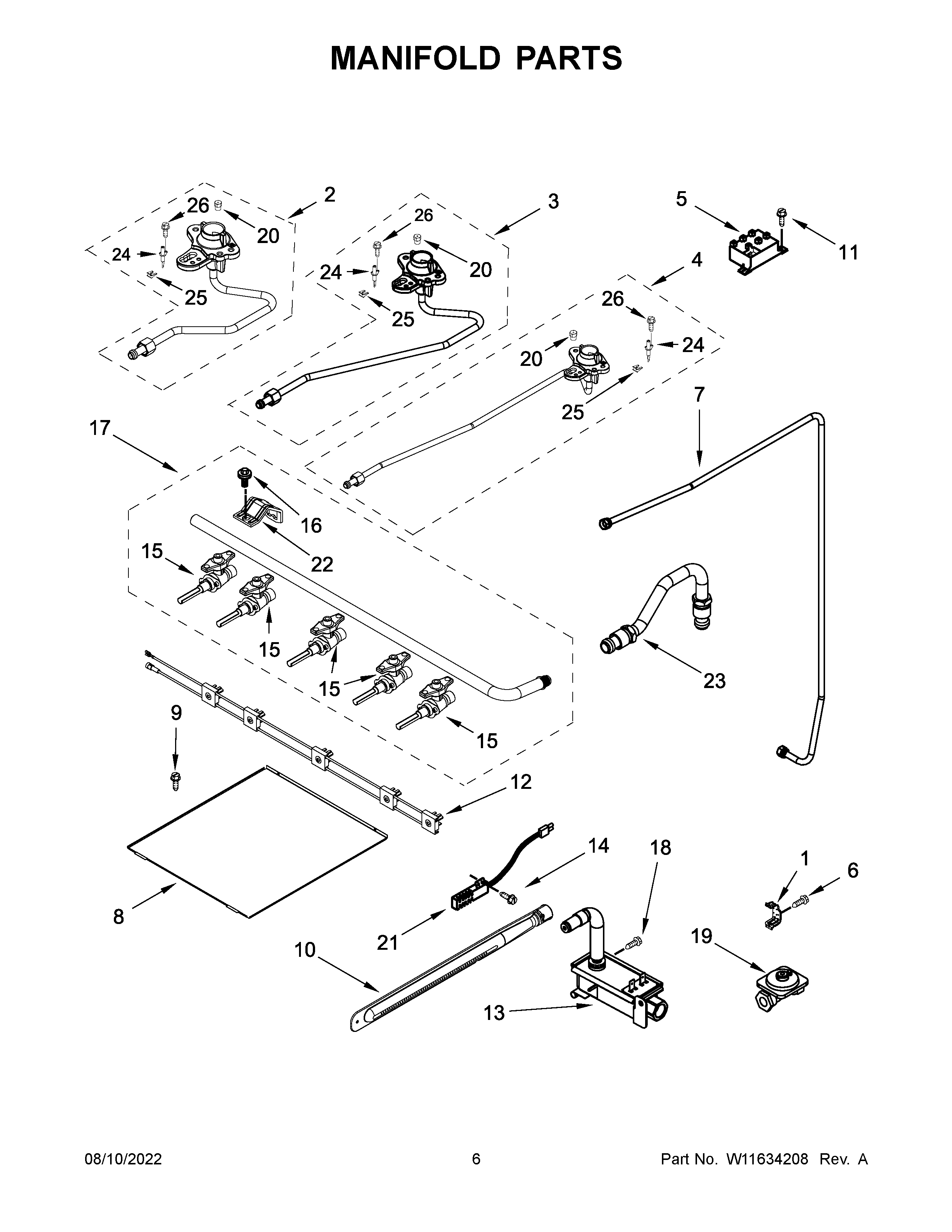

WFG505M0MB0 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11630808 Whirlpool Spud Orifice
1	98007410 Whirlpool Oven Mounting Bracket
2	W11590058 Whirlpool Orifice Holder
2A	W11590059 Whirlpool Orifice Holder
3	W11495381 Whirlpool Orifice Holder
4	W11590060 Whirlpool Orifice Holder
4A	W11590248 Whirlpool Orifice Holder
5	W11565127 Whirlpool Spark Module
6	WP98007225 Whirlpool Screw Assembly
7	W11628651 Whirlpool Gas Tubing
8	W11688713 Whirlpool Burner Baffle
9	WP3400832 Whirlpool Screw
10	W11220387 Whirlpool Oven Burner
11	W10837731 Whirlpool Screw Assembly
12	W11620480 Whirlpool Wire Harness
13	W11590251 Whirlpool Gas Valve
14	W11676351 Whirlpool Screw
15	W11620420 Whirlpool Burner Valve
15A	W11620109 Whirlpool Burner Valve
15B	W11620424 Whirlpool Burner Valve
16	98017517 Whirlpool Oven Screw
17	W11509588 Whirlpool Manifold Pipe
18	98013634 Whirlpool Oven Screw
19	W11590292 Whirlpool Regulator
20	W11700316 Whirlpool Orifice
20C	W11712434 Whirlpool Orifice
20A	W11620473 Whirlpool Orifice
20B	W11590293 Whirlpool Orifice Spud
21	IGNTR-OVEN
22	W10574737 Whirlpool Mounting Bracket
23	W11684515 Whirlpool Range Gas Tubing
24A	W11688146 Whirlpool Surface Igniter
24	W11666003 Whirlpool Range Surface Igniter
25	W11684564 Whirlpool Clip Assembly
26	W11241230 Whirlpool Screw
