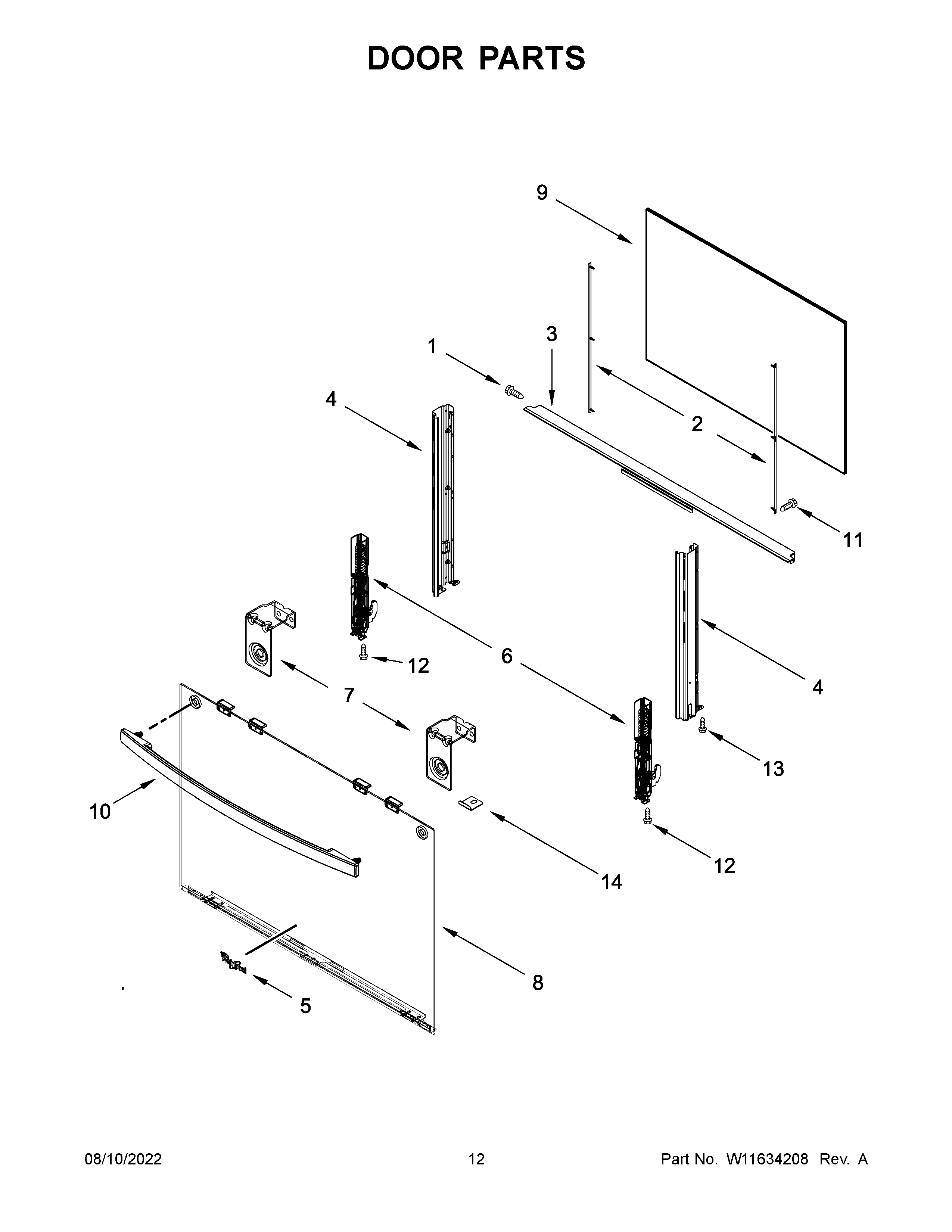

WFG505M0MB0 07 – DOOR PARTS

Products

Position	Product
1	WPW10277003 Whirlpool Screw
2	W11104748 Whirlpool Door Gasket
3	W11105139 Whirlpool Glass Bracket
4	W11620487 Whirlpool Door Hinge
4A	W11620488 Whirlpool Door Trim
5	W11178521 Whirlpool Dishwasher Nameplate
6	W10857234 Whirlpool Door Hinge
7	W11712435 Whirlpool Mounting Bracket
8A	W11620553 Whirlpool Door Glass
8	W11620483 Whirlpool Door Glass
9	W11620489 Whirlpool Door Glass
10	W11620485 Whirlpool Door Handle
10A	W11620554 Whirlpool Door Handle
11	W11206744 Whirlpool Screw
12	W10837674 Whirlpool Screw
13	W10837731 Whirlpool Screw Assembly
14A	W11170320 Whirlpool Mounting Bracket
14	W10883315 Whirlpool Mounting Bracket
