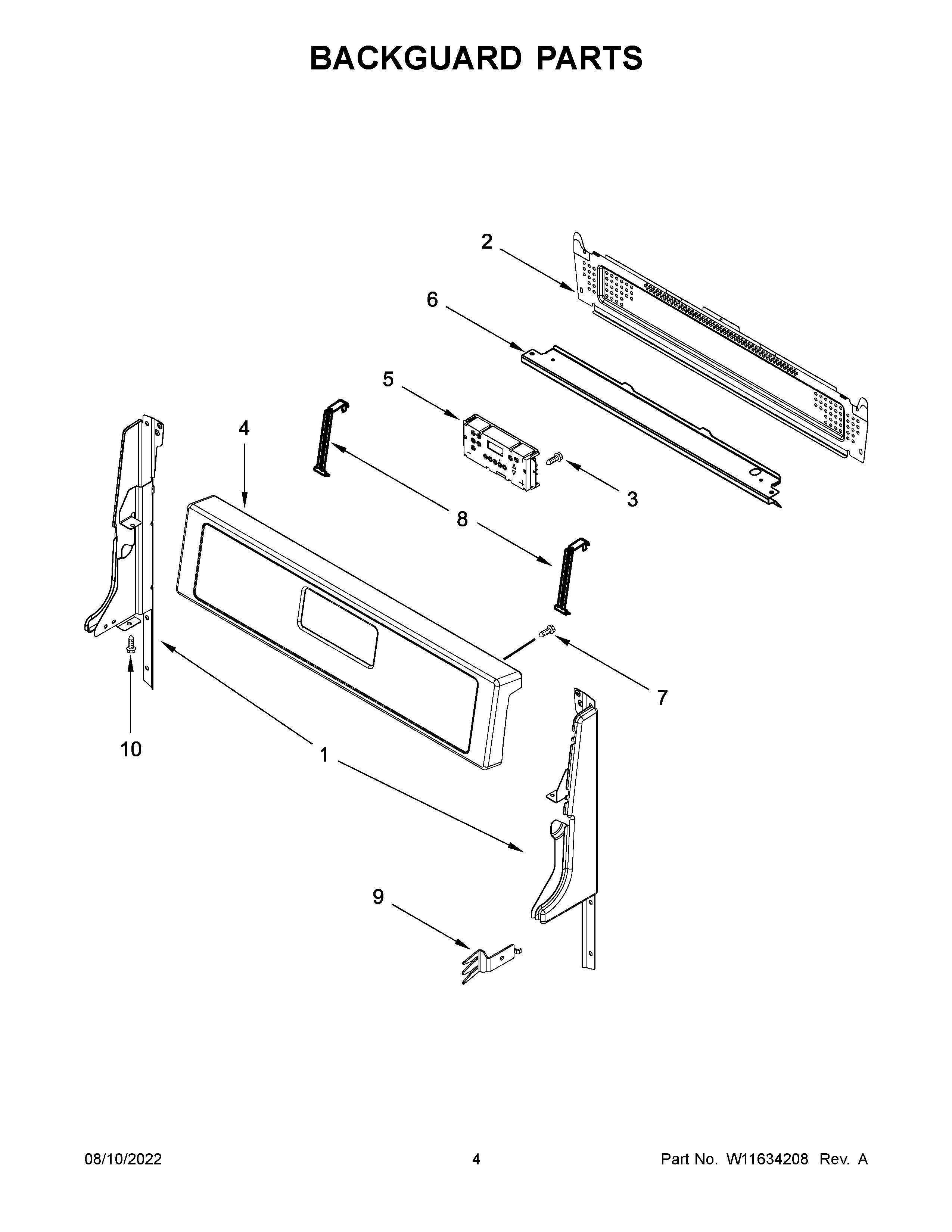

WFG505M0MW0 03 – BACKGUARD PARTS

WFG505M0MW0 03 – BACKGUARD PARTS

Written by

in

WFG505M0MW0 03 – BACKGUARD PARTS

Products

PositionProduct
1W10873109 Whirlpool Endcap Panel
1AW10873441 Whirlpool Panel Endcap
1BW10873107 Whirlpool Panel Endcap
1CW10873438 Whirlpool Endcap Panel
2W10588614 Whirlpool Rear Cover Assembly
3SCREW
4AW11620556 Whirlpool Control Panel
4W11620513 Whirlpool Control Panel
5AW11620552 Whirlpool Electronic Control
5CNTRL-ELEC
6W10535746 Whirlpool Deflector
7WP98008545 Whirlpool Screw
7AWP98008544 Whirlpool Screw Assembly
8BRACKET, CONTROL
9W10535815 Whirlpool Mounting Bracket
10W10837731 Whirlpool Screw Assembly
