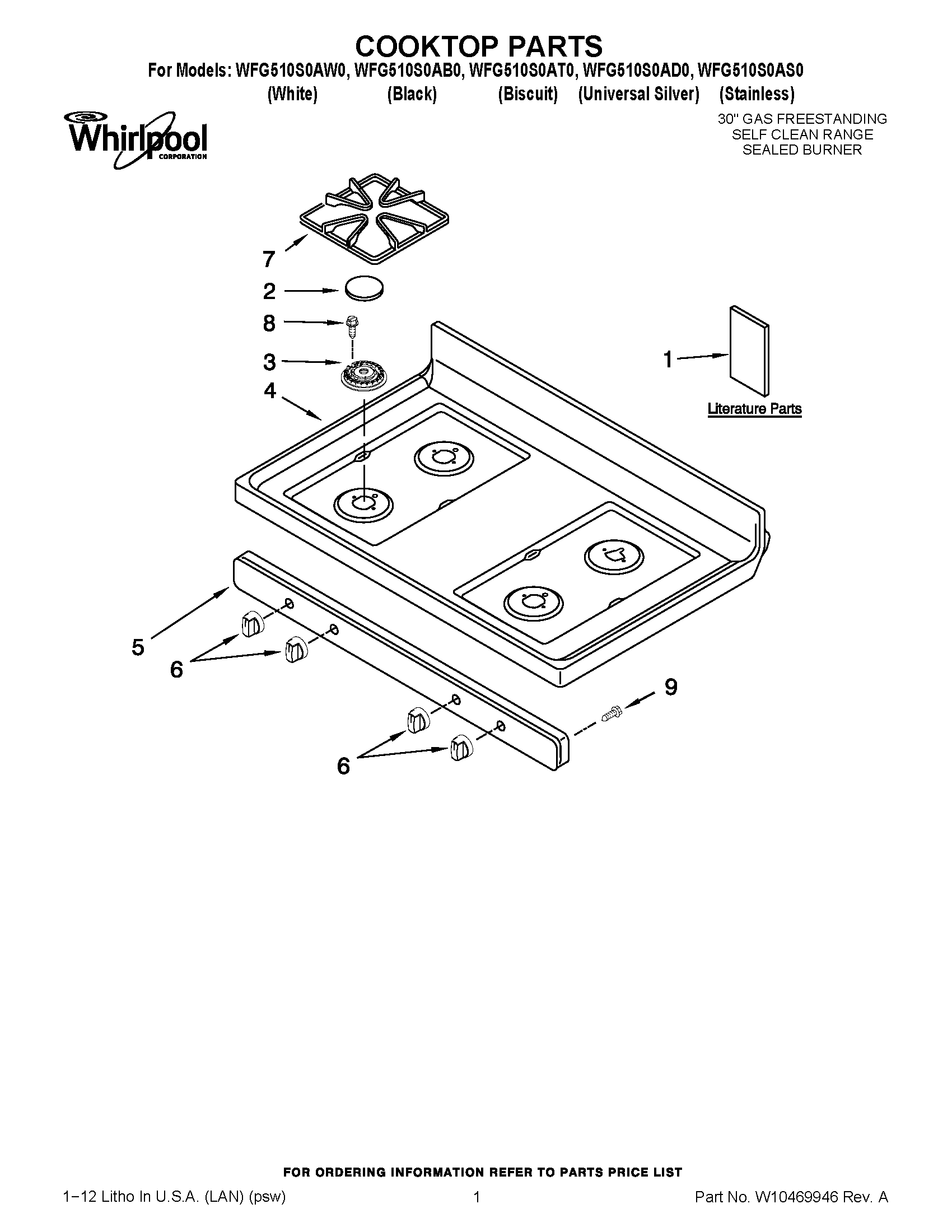

WFG510S0AB0 01 – COOKTOP PARTS

WFG510S0AB0 01 – COOKTOP PARTS

Written by

in

WFG510S0AB0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1INSTALLATION INSTRUCTIONS
1TECH SHEET (ENGLISH)
1GUIDE, USE AND CARE
2WPW10225168 Whirlpool Burner Cap
2WPW10225167 Whirlpool Surface Burner Cap
3WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
3WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
3WPW10406243 Whirlpool Burner Head Auxiliary 6K
48195546 Whirlpool Oven Cooktop O/S2
4W11213959 Whirlpool Cooktop
4W11213958 Whirlpool Oven Cooktop
5W10444449 Whirlpool Manufactured Panel
5W10444450 Whirlpool Manifold Panel
5W10444451 Whirlpool Manifold Panel
6WPW10339444 Whirlpool Knob Assembly
6WPW10339443 Whirlpool Knob
6WPW10339442 Whirlpool Range Black Burner Control Knob
7WPW10447925 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
