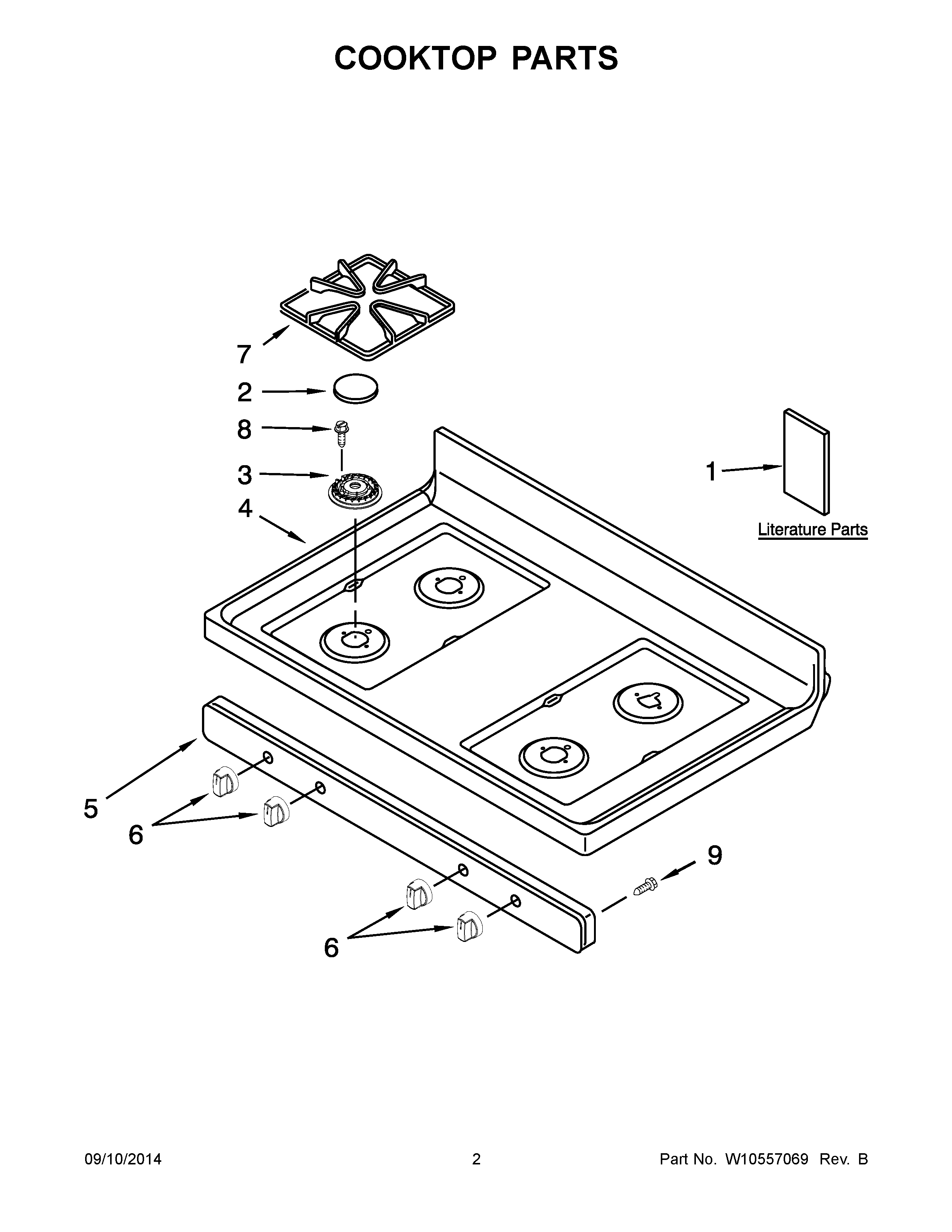

WFG510S0AB1 02 – COOKTOP PARTS

WFG510S0AB1 02 – COOKTOP PARTS

Written by

in

WFG510S0AB1 02 – COOKTOP PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1CSAFER COOKING TIPS (ENGLISH
1BTECH SHEET (ENGLISH)
1AGUIDE, USE AND CARE
2WPW10225168 Whirlpool Burner Cap
2AWPW10225167 Whirlpool Surface Burner Cap
3BWPW10406243 Whirlpool Burner Head Auxiliary 6K
3AWPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
3WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4W11213959 Whirlpool Cooktop
4AW11213958 Whirlpool Oven Cooktop
4B8195546 Whirlpool Oven Cooktop O/S2
5AW10444450 Whirlpool Manifold Panel
5W10444449 Whirlpool Manufactured Panel
5BW10444451 Whirlpool Manifold Panel
6BWPW10339444 Whirlpool Knob Assembly
6WPW10339443 Whirlpool Knob
6AWPW10339442 Whirlpool Range Black Burner Control Knob
7AWPW10447925 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
