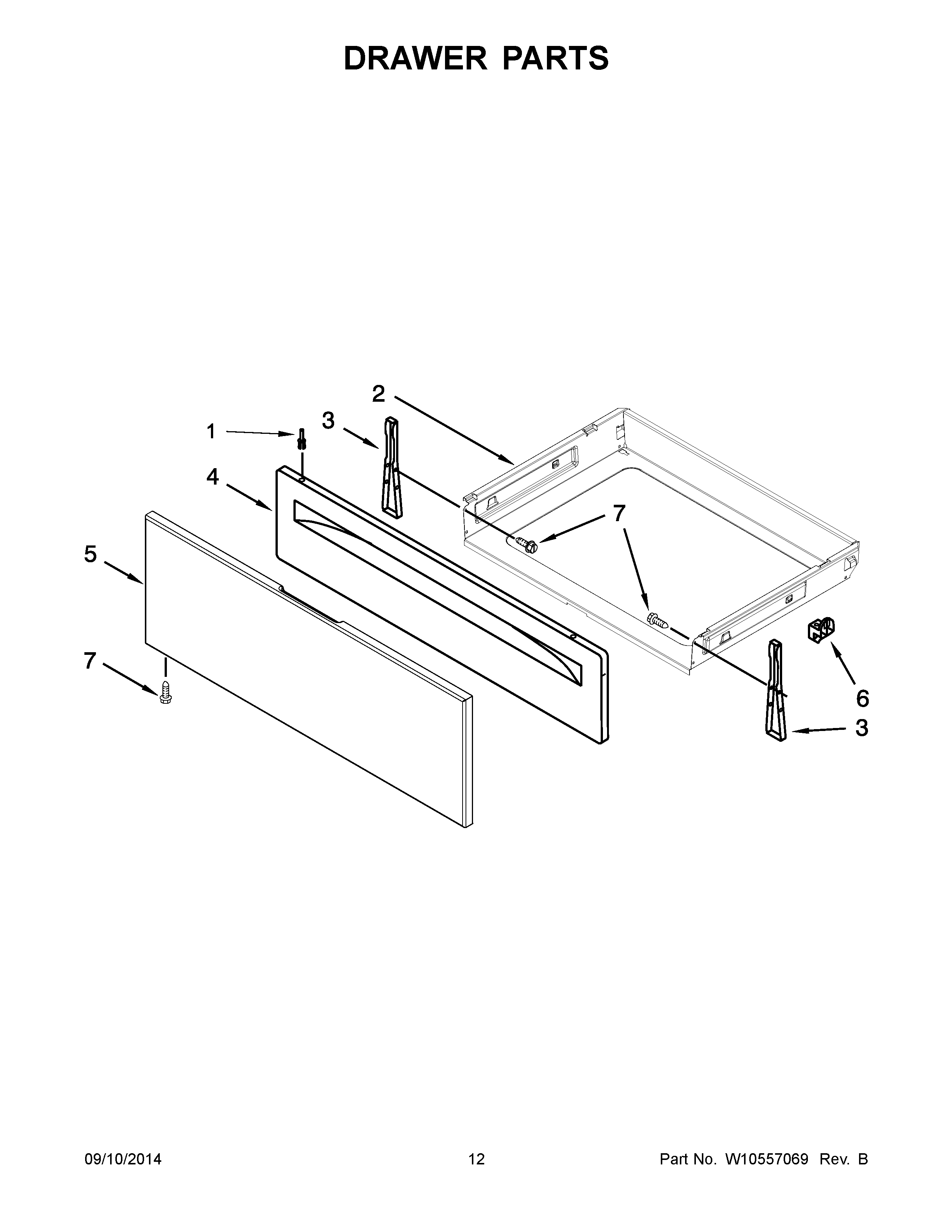

WFG510S0AB1 07 – DRAWER PARTS

WFG510S0AB1 07 – DRAWER PARTS

Written by

in

WFG510S0AB1 07 – DRAWER PARTS

Products

PositionProduct
1AWP3196813 Whirlpool Rivet
1WP3196814 Whirlpool Rivet
2W10813962 Whirlpool Utility Drawer
3W10462911 Whirlpool Bracket Mounting
3ABRKT-MNTG
4AW11230490 Whirlpool Drawer Panel
4W11230486 Whirlpool Drawer Panel
4CW11226776 Whirlpool Drawer Panel
4BPANEL, DRAWER FRONT (BISCUIT)
5W11256444 Whirlpool Drawer Panel
6GLIDE-RANGE DRAWER KIT
7WP3196175 Whirlpool Screw
