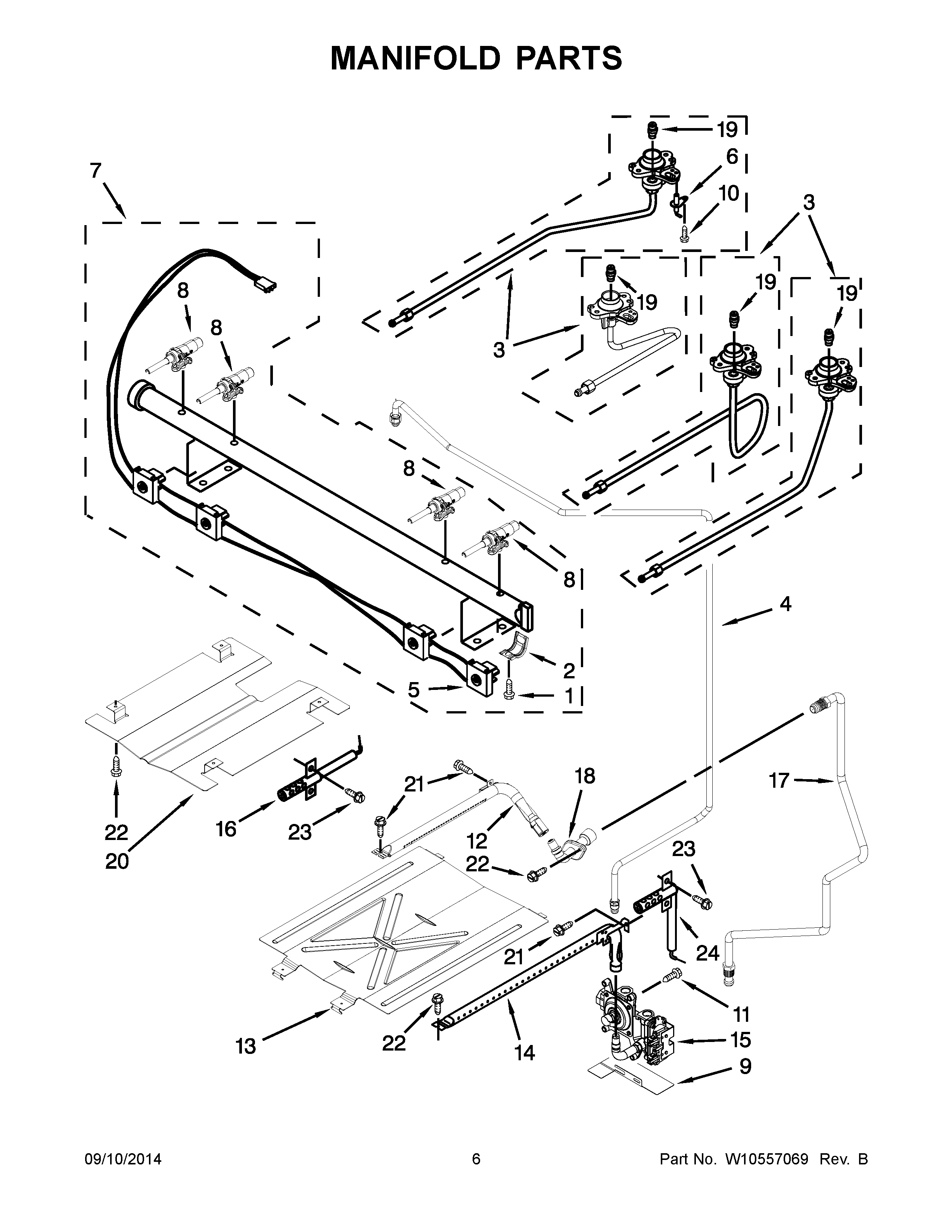

WFG510S0AD1 04 – MANIFOLD PARTS

WFG510S0AD1 04 – MANIFOLD PARTS

Written by

in

WFG510S0AD1 04 – MANIFOLD PARTS

Products

PositionProduct
NIWPW10400495 Whirlpool Orifice Assembly
NICABINET (NOT A SERVICEABLE PART)
NIWPW10170531 Whirlpool Spud Orifice
NIW10758273 Whirlpool Orifice
1W10295997 Whirlpool Screw
2W10949105 Whirlpool Mounting Bracket
3BW10462945 Whirlpool Orifice Holder
3W10462928 Whirlpool Orifice Holder
3CW10462940 Whirlpool Orifice Holder
3AW10462938 Whirlpool Orifice Holder
4W11680399 Whirlpool Gas Tubing
5WPW10295998 Whirlpool Wire Harness
6WPW10216419 Whirlpool Surface Igniter
7W10314242 Whirlpool Manifold Pipe
8AWPW10247744 Whirlpool Burner Valve
8WPW10279614 Whirlpool Burner Valve
9W10224921 Whirlpool Bracket Mounting
10WP8273062 Whirlpool Screw
11WP3400016 Whirlpool Screw Assembly
12WP8054078 Whirlpool Broiler Burner
13WPW10184491 Whirlpool Burner Baffle
14WP9758078 Whirlpool Oven Burner
15WPW10602001 Whirlpool Gas Valve
16WP8054129 Whirlpool Oven Igniter
17W10420040 Whirlpool Gas Tubing
18FITTING, BROILER
19BWPW10170506 Whirlpool Orifice Spud
19WPW10170508 Whirlpool Orifice Spud
19AWPW10185023 Whirlpool Spud Orifice
20W10137062 Whirlpool Burner Baffle
213196265 Whirlpool Oven Screw
22SCREW
23W11684507 Whirlpool Screw
24WP9758079 Whirlpool Oven Igniter
