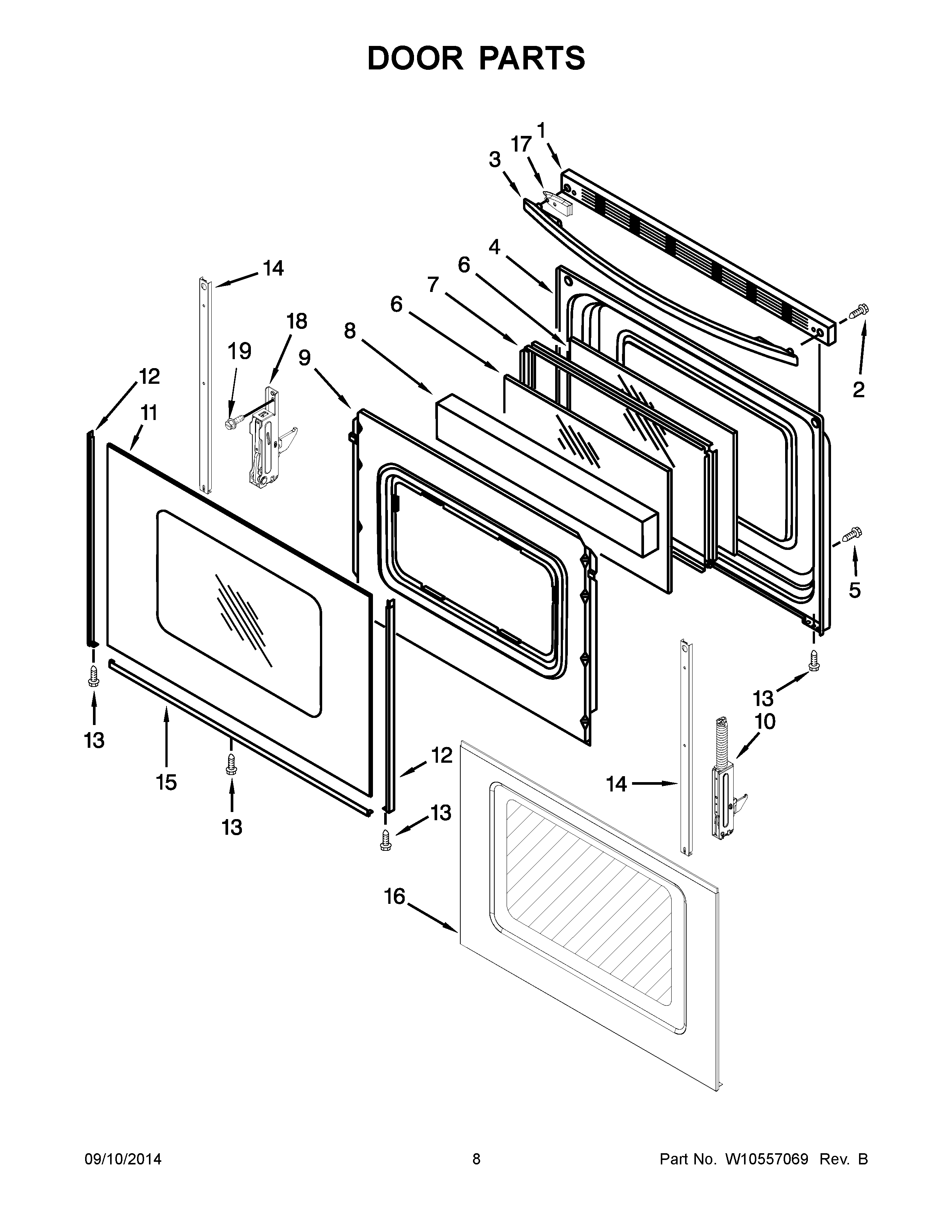

WFG510S0AT1 05 – DOOR PARTS

WFG510S0AT1 05 – DOOR PARTS

Written by

in

WFG510S0AT1 05 – DOOR PARTS

Products

PositionProduct
1ATRIM-VENT
1W10817433 Whirlpool Vent Trim
1BWPW10310923 Whirlpool Vent Trim
2WPW10200660 Whirlpool Range Oven Door Handle Screw
3W10300489 Whirlpool Door Handle
3CWPW10618239 Whirlpool Door Handle
3AW10300490 Whirlpool Door Handle
3BW10300491 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11WPW10409945 Whirlpool Glass Door
11AWPW10409946 Whirlpool Door Glass
11BWPW10409947 Whirlpool Glass Door
11CWPW10409948 Whirlpool Door Glass
12DW10761014 Whirlpool Right Door Trim
12BWP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12EWP8523167 Whirlpool Door Trim Assembly
12CWP8523166 Whirlpool Door Trim
12AW10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15CTrim, Bottom (Universal Silver)
15BWP8523178 Whirlpool Door Trim
15AWP8523177 Whirlpool Door Trim Assembly
15WP8523175 Whirlpool Door Trim Assembly
16ASSEMBLY, DOOR GLASS (STAINLESS ONLY)
17WPW10410341 Whirlpool Spacer
18WPW10299227 Whirlpool Range Door Hinge
