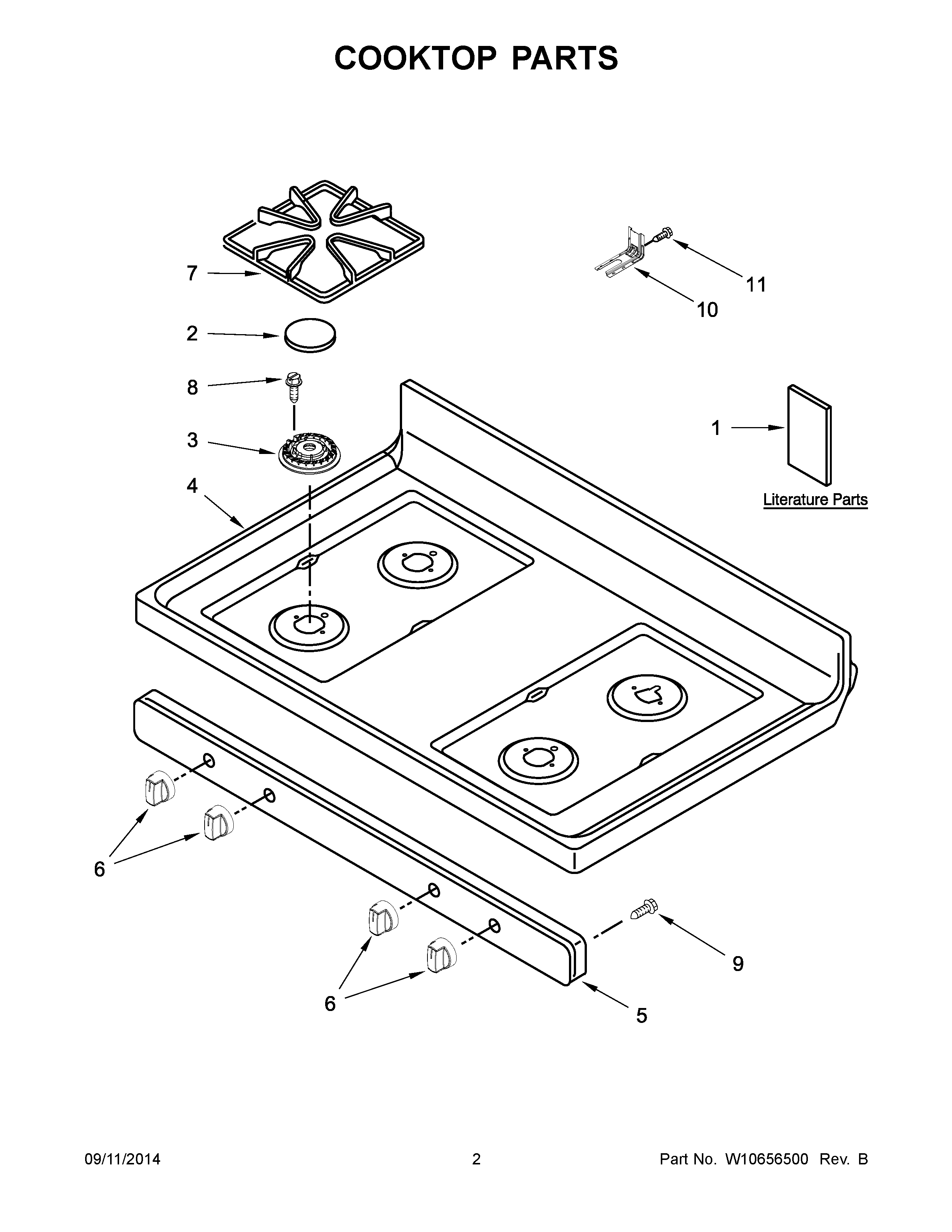

WFG510S0AT2 02 – COOKTOP PARTS

WFG510S0AT2 02 – COOKTOP PARTS

Written by

in

WFG510S0AT2 02 – COOKTOP PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1CTECH SHEET (ENGLISH)
1BSAFER COOKING TIPS (ENGLISH
1AGUIDE, USE AND CARE
2WPW10225168 Whirlpool Burner Cap
2AWPW10225167 Whirlpool Surface Burner Cap
3BWPW10515453 Whirlpool Burner Head
3WPW10515452 Whirlpool Burner Head
3AWPW10515454 Whirlpool Burner Head
4AW11213958 Whirlpool Oven Cooktop
4B8195546 Whirlpool Oven Cooktop O/S2
4W11213959 Whirlpool Cooktop
5W10444449 Whirlpool Manufactured Panel
5BW10444451 Whirlpool Manifold Panel
5AW10444450 Whirlpool Manifold Panel
6BWPW10339444 Whirlpool Knob Assembly
6WPW10339443 Whirlpool Knob
6AWPW10339442 Whirlpool Range Black Burner Control Knob
7AWPW10447925 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
