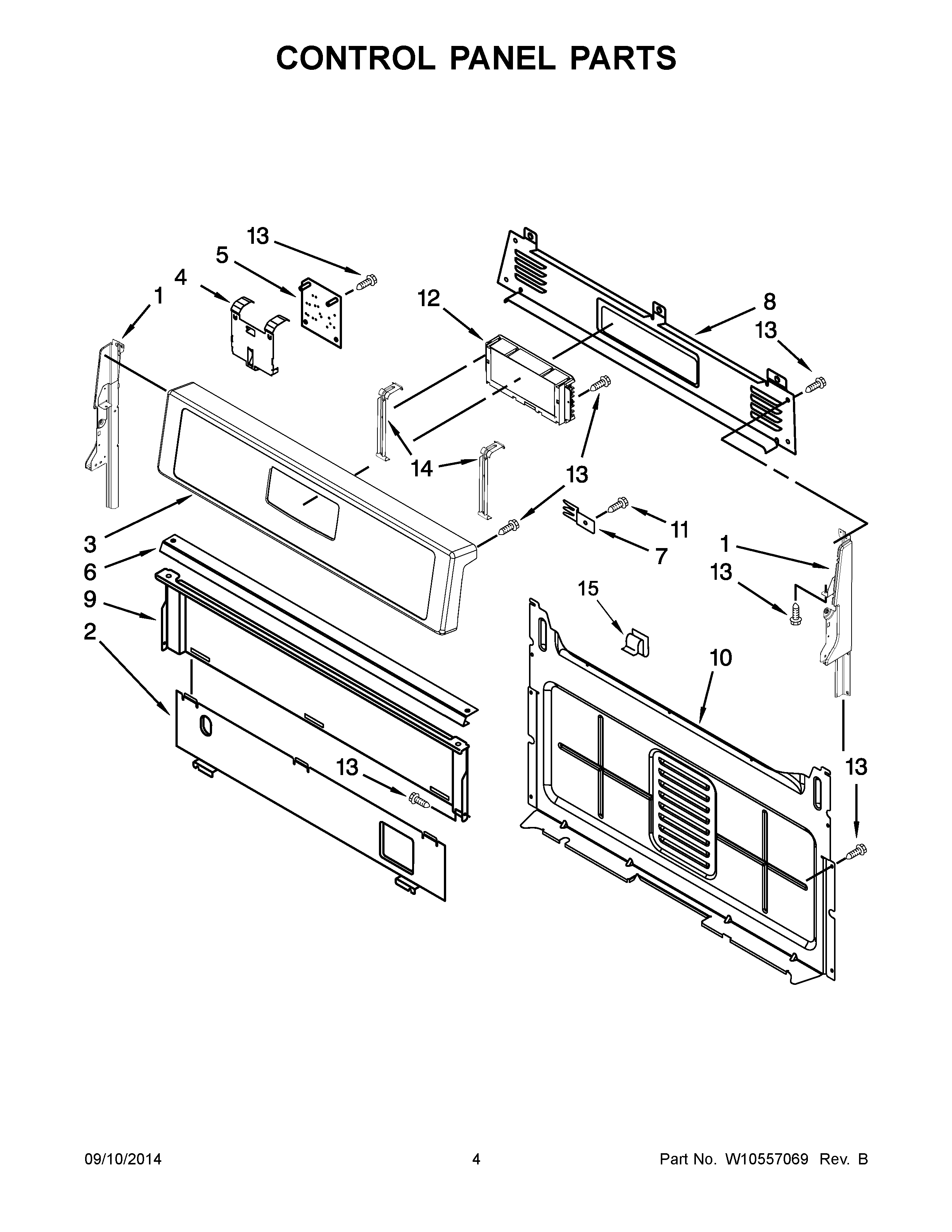

WFG510S0AW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219370 Whirlpool Endcap Panel
1B	W11230611 Whirlpool Panel Endcap
1E	W11230612 Whirlpool Panel End Cap
1A	W11219664 Whirlpool Endcap Panel
1D	W11219665 Whirlpool Panel Endcap
1	W11219365 Whirlpool Panel Endcap
2	8053505 Whirlpool Oven Shield
3B	W10370183 Whirlpool Control Panel
3D	W11231628 Whirlpool Control Panel
3	W11234436 Whirlpool Control Panel
3A	W11234434 Whirlpool Control Panel
3C	W11234435 Whirlpool Control Panel
4	W10516577 Whirlpool Bracket Mounting
5	WPW10331686 Whirlpool Oven Spark Module
6	W10516123 Whirlpool Mounting Bracket
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	COVER, BACK
11	WP3196557 Whirlpool Screw
12C	WPW10424890 Whirlpool Electronic Control Board + Core
12	WPW10348710-includeCORE Whirlpool WPW10348710 Refrigerator Electronic Control Board + Core
12A	WPW10348656-includeCORE Whirlpool WPW10348656 Refrigerator Electronic Control Board + Core
12B	WPW10413072-includeCORE Whirlpool WPW10413072 Refrigerator Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	W10334923 Whirlpool Clip
