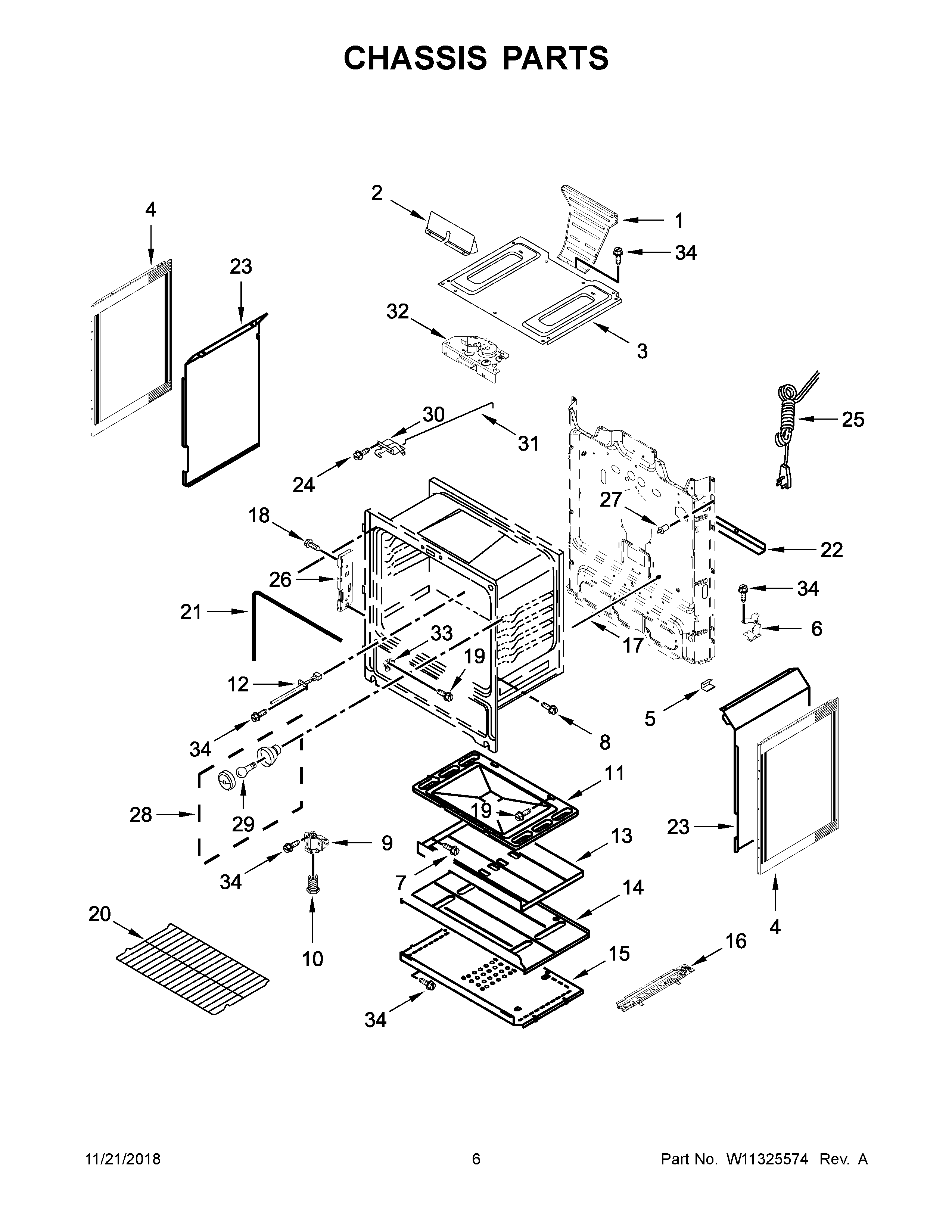

WFG510S0HB1 04 – CHASSIS PARTS

Products

Position	Product
NI	W11688737 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684915 Whirlpool Insulation
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	W11379351 Whirlpool Burner Box
4A	WPW10575396 Whirlpool Side Panel
4	W11730303 Whirlpool Side Panel
5	W10137382 Whirlpool Clip
6	8523249 Whirlpool Oven Support Bracket
9	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	SENSOR-RANGE
13	8053967 Whirlpool Oven Heat Baffle
14	8053969 Whirlpool Heat Shield
15	8053968 Whirlpool Oven Heat Shield
16A	WPW10306546 Whirlpool Base Rail
17	9757239 Whirlpool Oven Door Rod
18	W10777162 Whirlpool Screw
19	Screw
20	RACK-OVEN
21	W11542153 Whirlpool Door Gasket
22	W10435470 Whirlpool Brace
23A	9761448 Whirlpool Oven Retainer
23	9761449 Whirlpool Oven Retainer
24	W11169708 Whirlpool Screw
25	W11582239 Whirlpool Range Power Cord
26	W10647259 Whirlpool Hinge Receiver
27	WP9757262 Whirlpool Light Switch
28	W11594027 Whirlpool Range Oven Light Socket
29	BULB-LIGHT
30	WP9761013 Whirlpool Door Latch
31	W10078370 Whirlpool Latch Rod
32	WPW10107820 Whirlpool Door Latch
33	W10807823 Whirlpool Drawer Glide
34	SCREW
