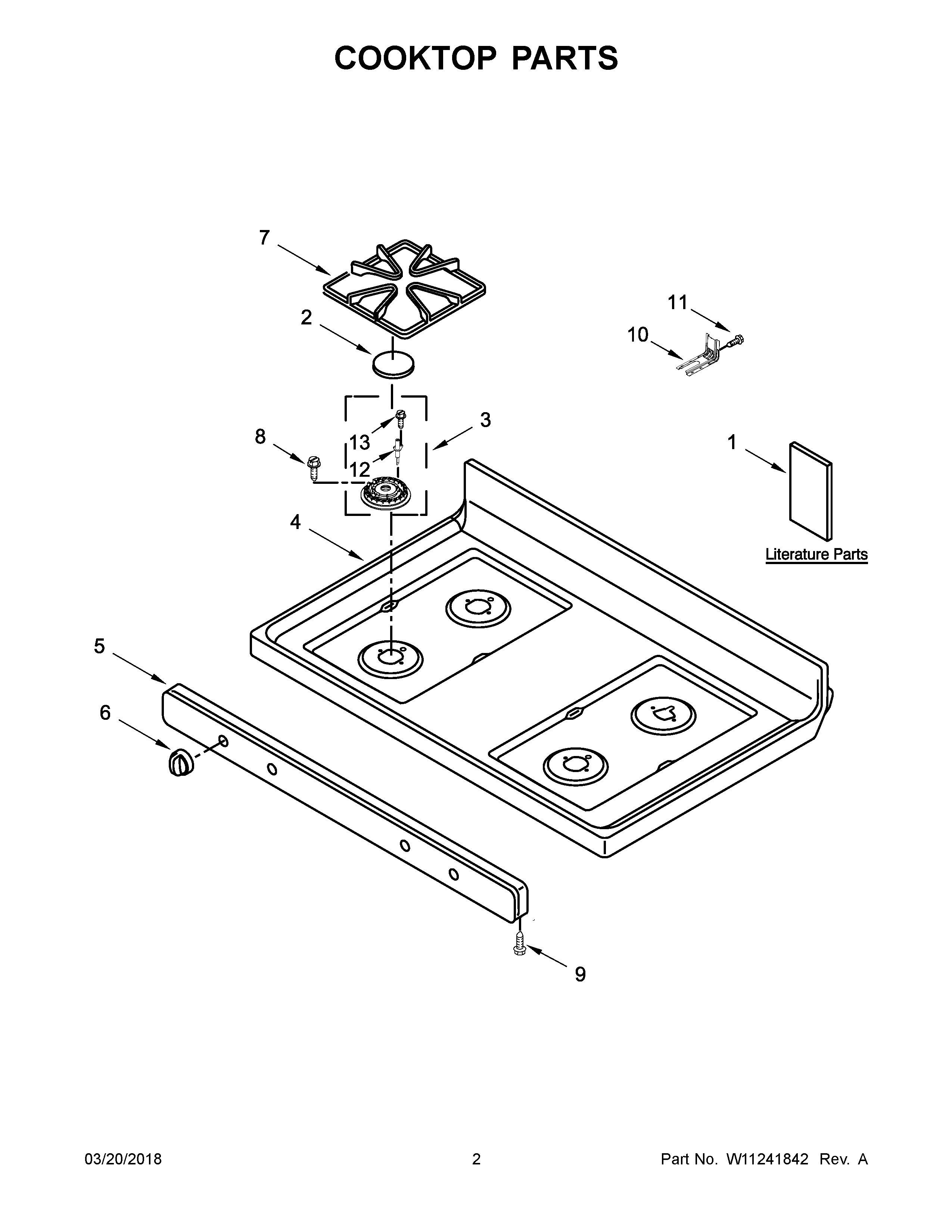

WFG510S0HS0 02 – COOKTOP PARTS

Products

PositionProduct
NIW10334923 Whirlpool Clip
NI3196896 Whirlpool Clip
NIW11161843 Whirlpool Wire Harness
NIW10809927 Whirlpool Wire Harness
NIW10842520 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NICABINET (NOT A SERVICEABLE PART)
1BSHEET, TECH (ENGLISH)
1CDIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION
1AGUIDE, USE AND CARE
2WPW10183375 Whirlpool Burner Cap
3WPW10515455 Whirlpool Burner Head
3AWPW10515454 Whirlpool Burner Head
3BWPW10515453 Whirlpool Burner Head
4W11213958 Whirlpool Oven Cooktop
5PANEL, MANIFOLD (BLACK)
6W11159631 Whirlpool Knob Assembly
7W10915784 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12WPW10515459 Whirlpool Surface Igniter
13WP8273062 Whirlpool Screw
