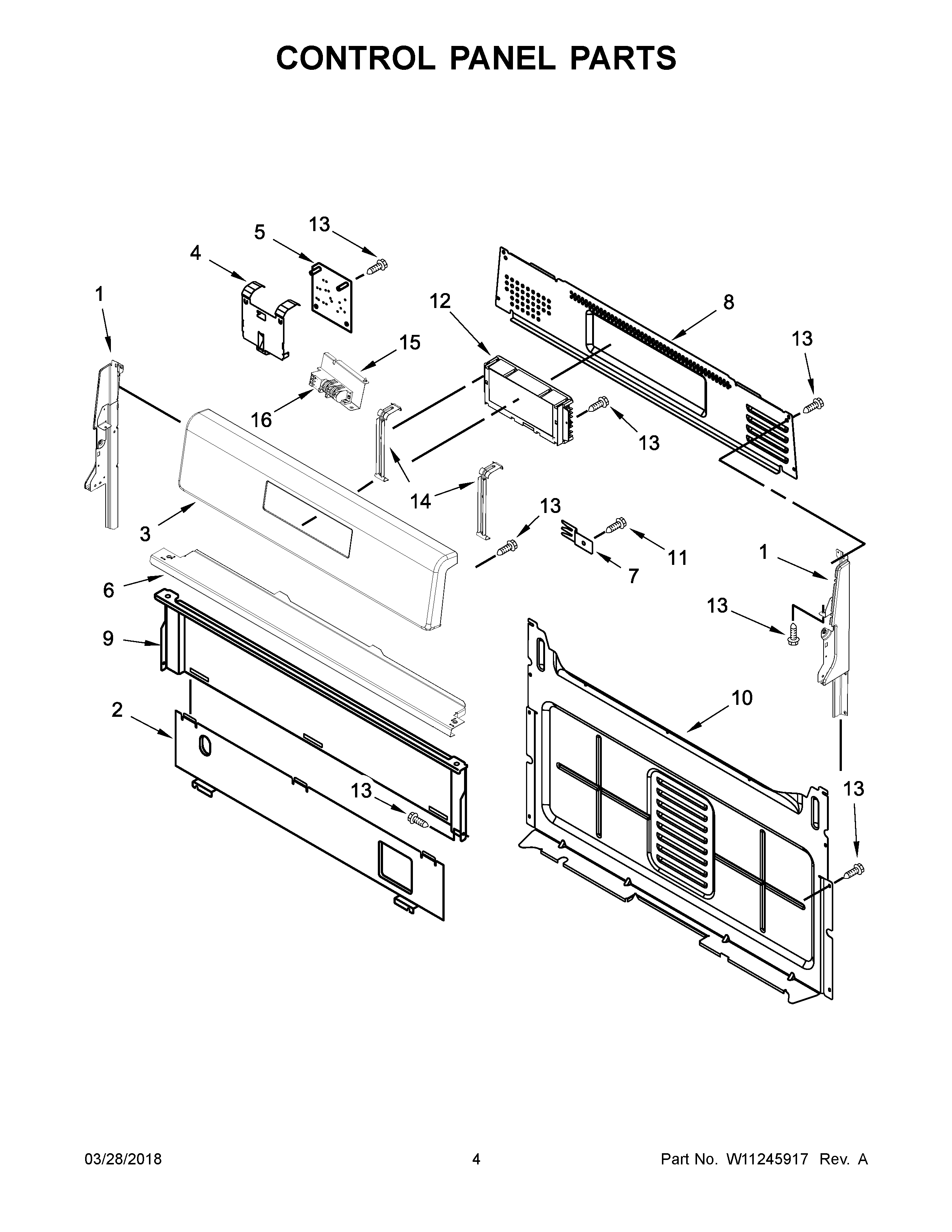

WFG510S0HW0 03 – CONTROL PANEL PARTS

WFG510S0HW0 03 – CONTROL PANEL PARTS

Written by

in

WFG510S0HW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1AW11219370 Whirlpool Endcap Panel
28053505 Whirlpool Oven Shield
3W11101500 Whirlpool Control Panel
4W10762981 Whirlpool Mounting Bracket Assembly
5W11162730 Whirlpool Spark Module
6W10516123 Whirlpool Mounting Bracket
78523412 Whirlpool Mounting Bracket
8W10198745 Whirlpool Rear Cover
9W10192841 Whirlpool Heat Shield
10COVER, BACK
11WP3196557 Whirlpool Screw
12W11317839 Whirlpool Electronic Control Board + Core
13SCREW
14W11230932 Whirlpool Bracket Mounting
15W10901176 Whirlpool Bracket Assembly
16WPW10110491 Whirlpool Spark Module
