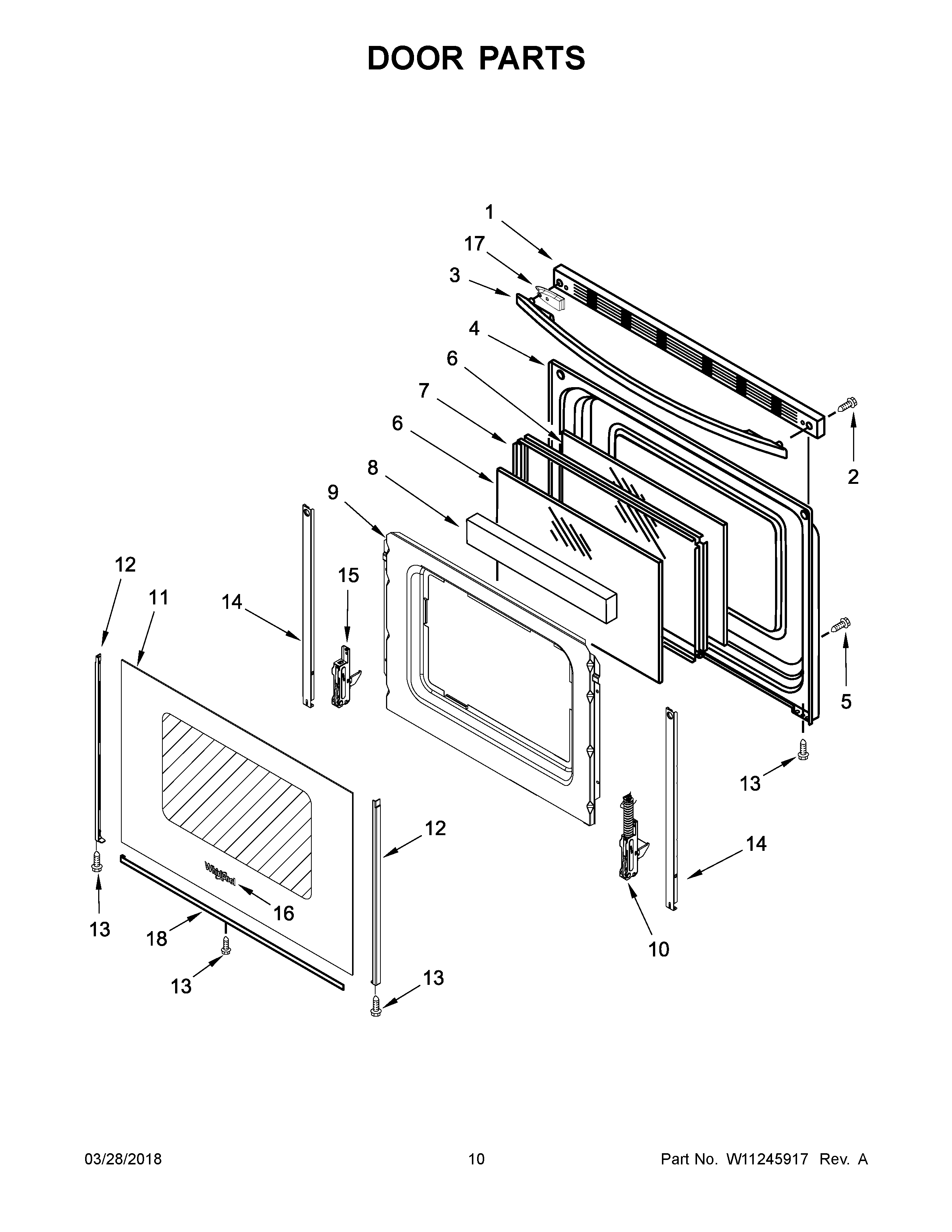

WFG510S0HW0 06 – DOOR PARTS

WFG510S0HW0 06 – DOOR PARTS

Written by

in

WFG510S0HW0 06 – DOOR PARTS

Products

PositionProduct
1W10817433 Whirlpool Vent Trim
2W10831019 Whirlpool Stove Door Screw
3W11107407 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6W11159620 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11WPW10409945 Whirlpool Glass Door
12AWP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13WP355214 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10299227 Whirlpool Range Door Hinge
16W11178521 Whirlpool Dishwasher Nameplate
17W11590861 Whirlpool Door Handle
18WP8523175 Whirlpool Door Trim Assembly
