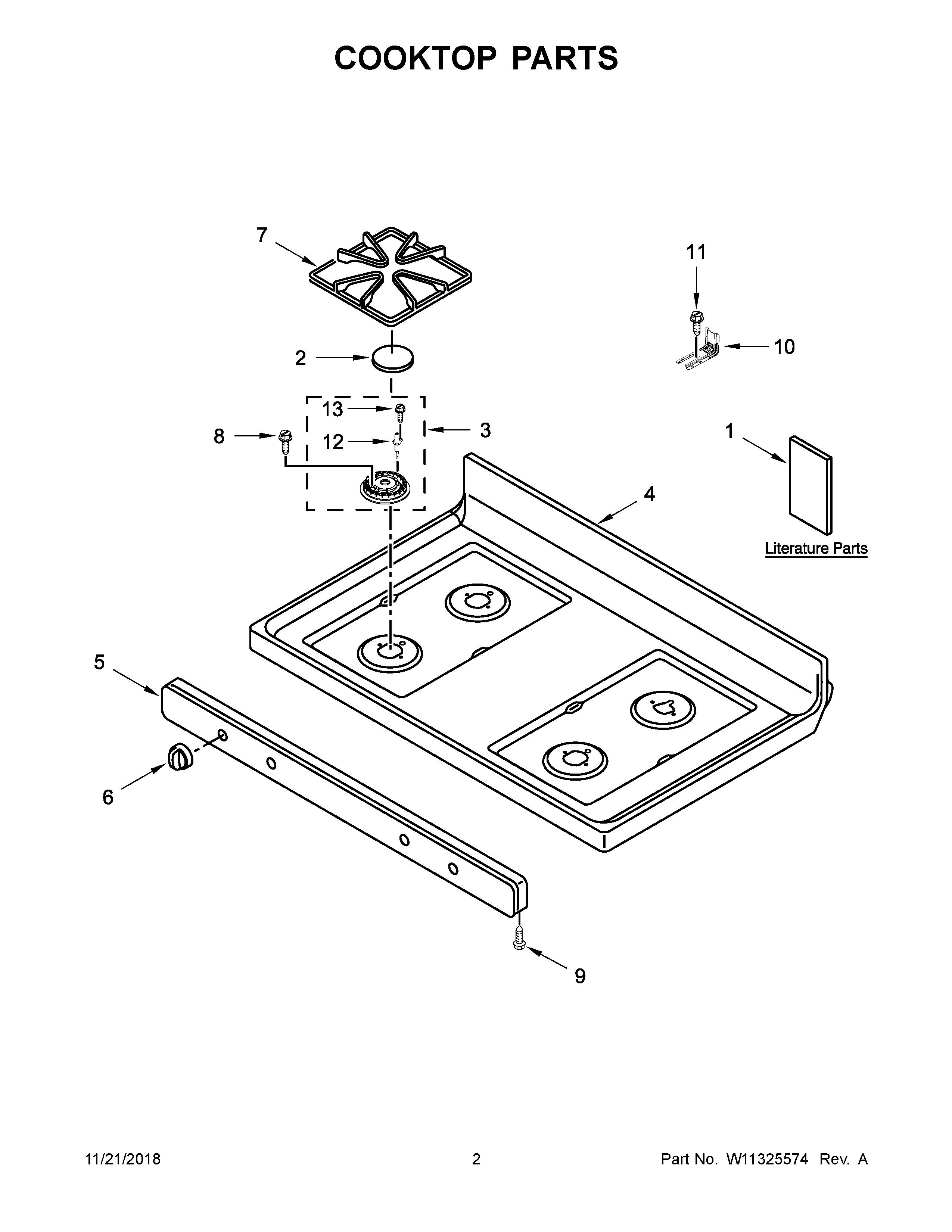

WFG510S0HW1 02 – COOKTOP PARTS

Products

Position	Product
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11161843 Whirlpool Wire Harness
NI	W10809927 Whirlpool Wire Harness
NI	W10842520 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	CABINET (NOT A SERVICEABLE PART)
1B	SHEET, TECH (ENGLISH)
1C	DIAGRAM, WIRING
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE AND CARE
2	WPW10183375 Whirlpool Burner Cap
3	WPW10515455 Whirlpool Burner Head
3A	WPW10515454 Whirlpool Burner Head
3B	WPW10515453 Whirlpool Burner Head
4A	W11213959 Whirlpool Cooktop
4	W11213958 Whirlpool Oven Cooktop
5A	W11246787 Whirlpool Manifold Panel
5	PANEL, MANIFOLD (BLACK)
6	W11159631 Whirlpool Knob Assembly
6A	W11023142 Whirlpool Knob
7	W10915784 Whirlpool Grate Kit
8	WP3368921 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12A	WPW10515459 Whirlpool Surface Igniter
13	WP8273062 Whirlpool Screw
