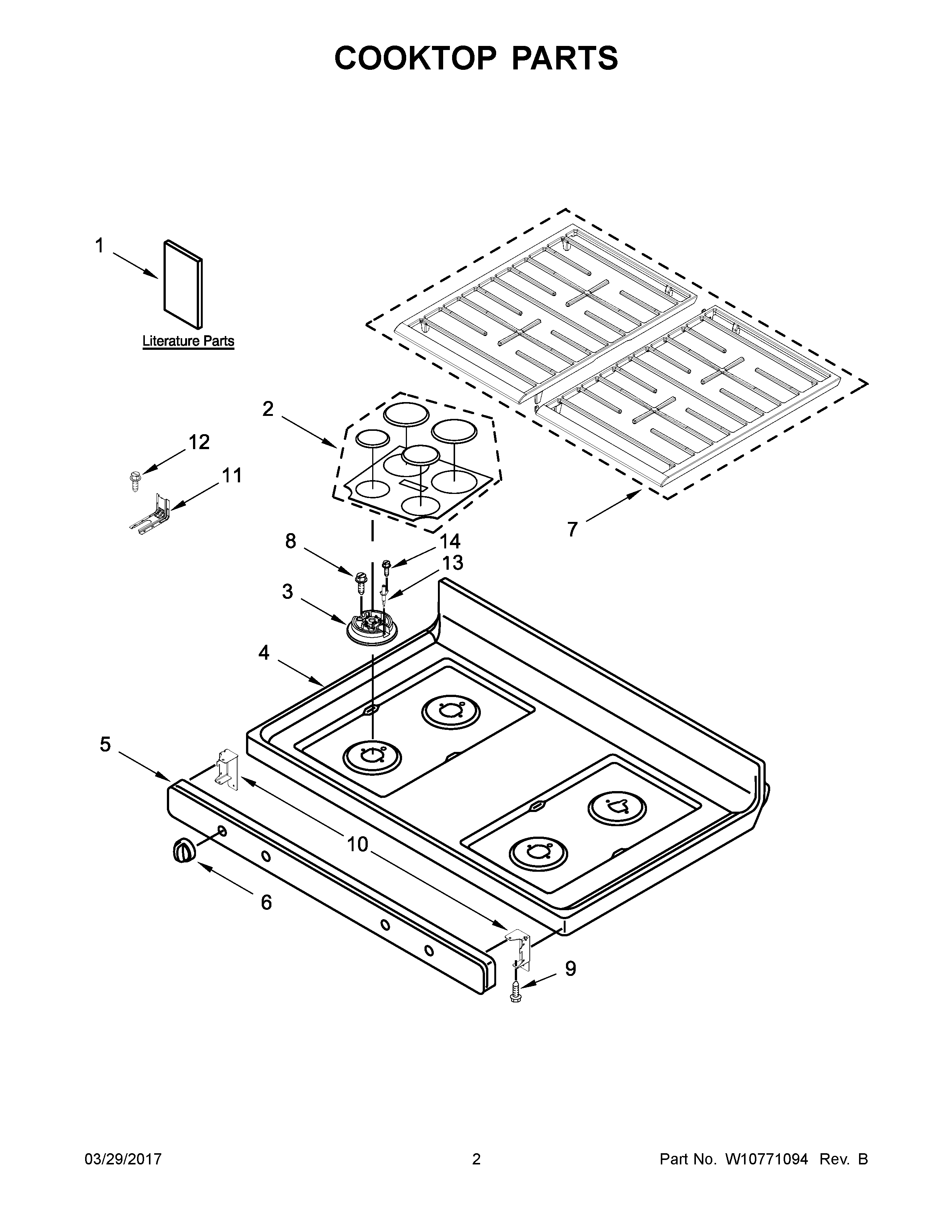

WFG515S0EB0 02 – COOKTOP PARTS

WFG515S0EB0 02 – COOKTOP PARTS

Written by

in

WFG515S0EB0 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, COOKTOP
NIW11161843 Whirlpool Wire Harness
NIW10625534 Whirlpool Wire Harness
NIW10519920 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
NIWPW10182767 Whirlpool Wire Tie
NICABINET (NOT A SERVICEABLE PART)
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
1INSTRUCTIONS, INSTALLATION
1AGUIDE, USE AND CARE
1BSAFER COOKING TIPS (ENGLISH
1CTECH SHEET (ENGLISH)
2WPW10183375 Whirlpool Burner Cap
3AWPW10515454 Whirlpool Burner Head
3WPW10515455 Whirlpool Burner Head
3BWPW10515453 Whirlpool Burner Head
4W10457442 Whirlpool Cooktop
4BW10771754 Whirlpool Cooktop
4AW10457443 Whirlpool Cooktop Assembly
5AW10444446 Whirlpool Manifold Panel
5BPANEL, MANIFOLD (BISCUIT)
5W10444447 Whirlpool Manifold Panel
6W10819917 Whirlpool Knob
6BW10676220 Whirlpool Knob
6AW10909673 Whirlpool Knob Assembly
7W11394363 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
108523249 Whirlpool Oven Support Bracket
11W11447673 Whirlpool Range Tip Anchor
12SCREW, ANTI-TIP KIT
13WPW10515459 Whirlpool Surface Igniter
14WP8273062 Whirlpool Screw
