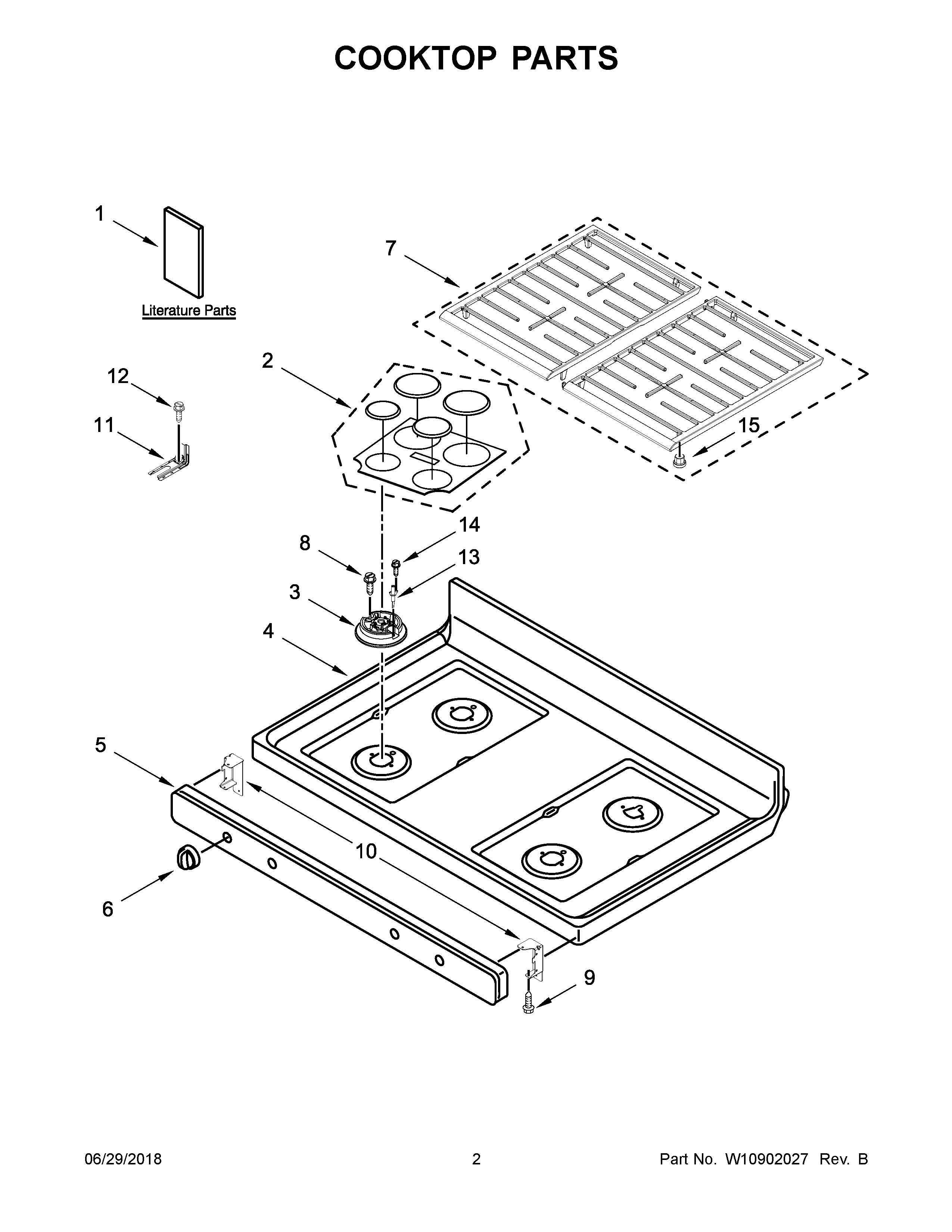

WFG515S0ET1 02 – COOKTOP PARTS

Products

Position	Product
NI	W10797422 Whirlpool Wire Harness
NI	W11161843 Whirlpool Wire Harness
NI	W10809927 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	3400964 Whirlpool Oven Clip
1B	TECH SHEET (ENGLISH)
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
2	WPW10183375 Whirlpool Burner Cap
3A	WPW10515454 Whirlpool Burner Head
3	WPW10515455 Whirlpool Burner Head
3B	WPW10515453 Whirlpool Burner Head
4	W10457442 Whirlpool Cooktop
4B	W10771754 Whirlpool Cooktop
4A	W10457443 Whirlpool Cooktop Assembly
5	W10444447 Whirlpool Manifold Panel
5A	W10444446 Whirlpool Manifold Panel
5B	PANEL, MANIFOLD (BISCUIT)
6	W10819917 Whirlpool Knob
6A	W10909673 Whirlpool Knob Assembly
6B	W10676220 Whirlpool Knob
7	W11394363 Whirlpool Grate Kit
8	WP3368921 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	8523249 Whirlpool Oven Support Bracket
11	W11447673 Whirlpool Range Tip Anchor
12	SCREW, ANTI-TIP KIT
13	WPW10515459 Whirlpool Surface Igniter
14	WP8273062 Whirlpool Screw
15	W10919249 Whirlpool Burner Grate Foot
