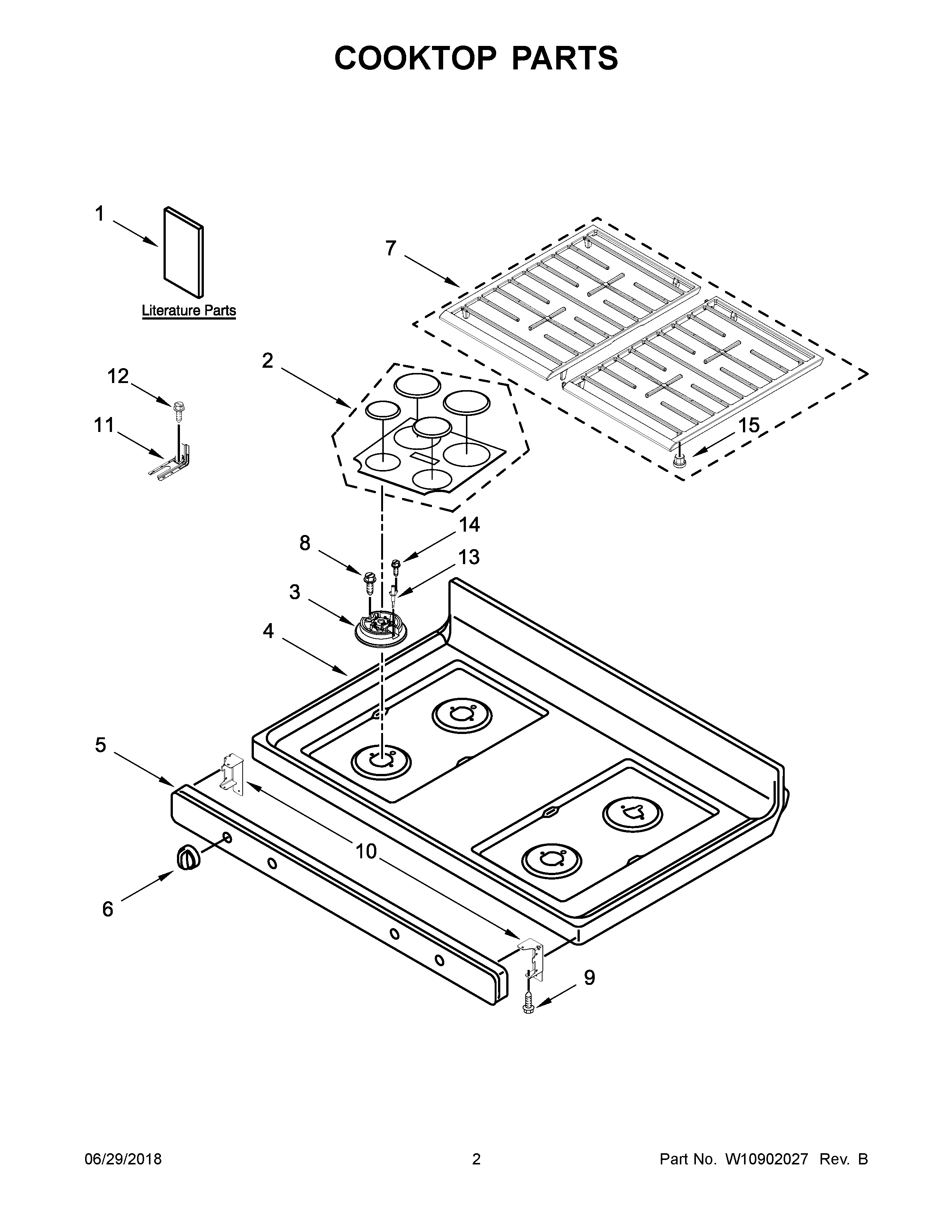

WFG515S0EW1 02 – COOKTOP PARTS

Products

PositionProduct
NIW10797422 Whirlpool Wire Harness
NIW11161843 Whirlpool Wire Harness
NIW10809927 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
NI16515 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
NI3400964 Whirlpool Oven Clip
1BTECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
1AGUIDE, USE & CARE
2WPW10183375 Whirlpool Burner Cap
3AWPW10515454 Whirlpool Burner Head
3WPW10515455 Whirlpool Burner Head
3BWPW10515453 Whirlpool Burner Head
4W10457442 Whirlpool Cooktop
4BW10771754 Whirlpool Cooktop
4AW10457443 Whirlpool Cooktop Assembly
5W10444447 Whirlpool Manifold Panel
5AW10444446 Whirlpool Manifold Panel
5BPANEL, MANIFOLD (BISCUIT)
6W10819917 Whirlpool Knob
6AW10909673 Whirlpool Knob Assembly
6BW10676220 Whirlpool Knob
7W11394363 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
108523249 Whirlpool Oven Support Bracket
11W11447673 Whirlpool Range Tip Anchor
12SCREW, ANTI-TIP KIT
13WPW10515459 Whirlpool Surface Igniter
14WP8273062 Whirlpool Screw
15W10919249 Whirlpool Burner Grate Foot
