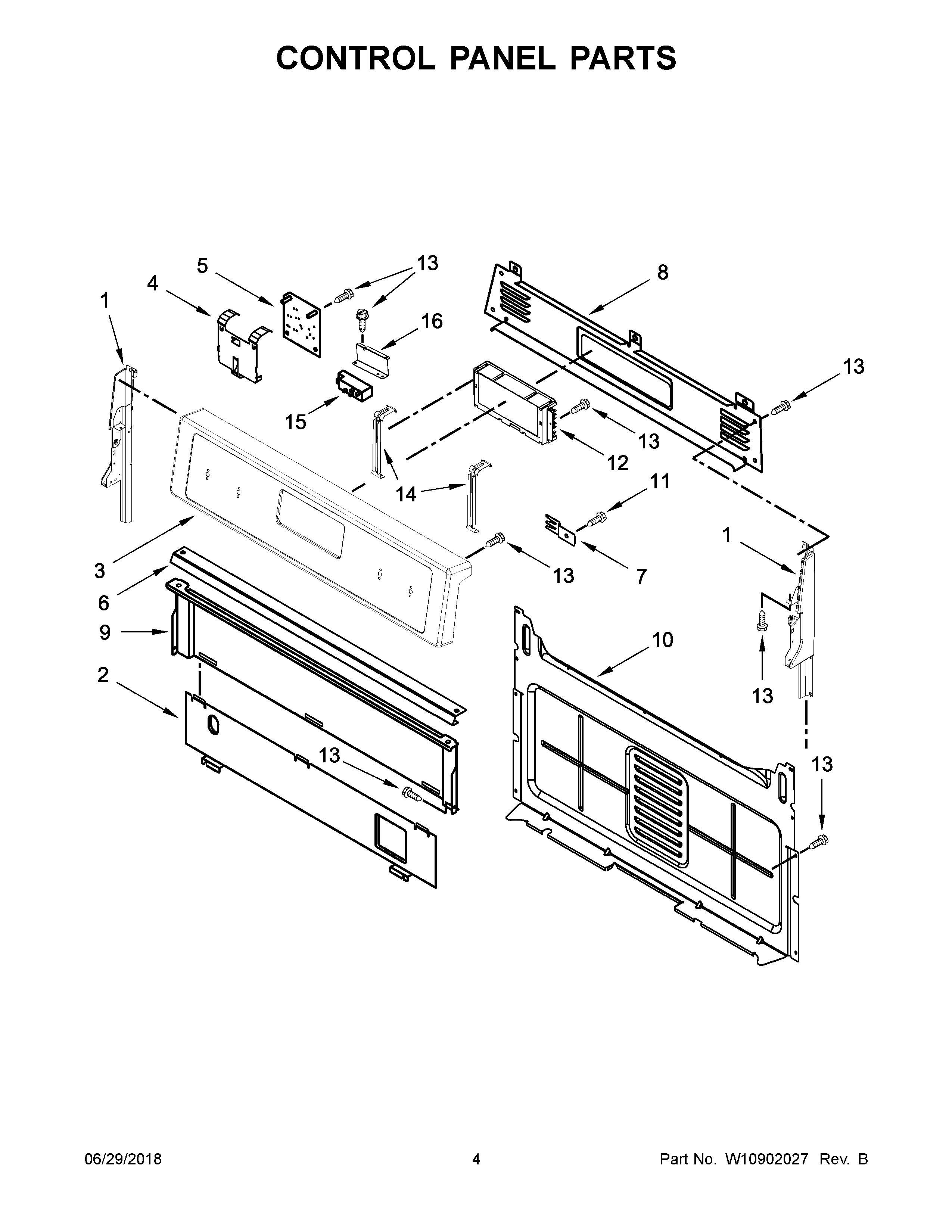

WFG515S0EW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	W11219365 Whirlpool Panel Endcap
1C	W11219370 Whirlpool Endcap Panel
1D	W11230611 Whirlpool Panel Endcap
1E	W11230612 Whirlpool Panel End Cap
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	8053505 Whirlpool Oven Shield
3	W11234434 Whirlpool Control Panel
3D	W11231628 Whirlpool Control Panel
3C	W11234435 Whirlpool Control Panel
3B	W11234449 Whirlpool Control Panel
3A	W11234436 Whirlpool Control Panel
4	W10762981 Whirlpool Mounting Bracket Assembly
5	W11162730 Whirlpool Spark Module
6	W10516123 Whirlpool Mounting Bracket
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	COVER, BACK
11	WP3196557 Whirlpool Screw
12	WPW10348656-includeCORE Whirlpool WPW10348656 Refrigerator Electronic Control Board + Core
12C	WPW10424890 Whirlpool Electronic Control Board + Core
12B	WPW10413072-includeCORE Whirlpool WPW10413072 Refrigerator Electronic Control Board + Core
12A	WPW10348710-includeCORE Whirlpool WPW10348710 Refrigerator Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	WPW10110491 Whirlpool Spark Module
16	W10901176 Whirlpool Bracket Assembly
