WFG515S0JS1 02 – COOKTOP PARTS
Written by
in

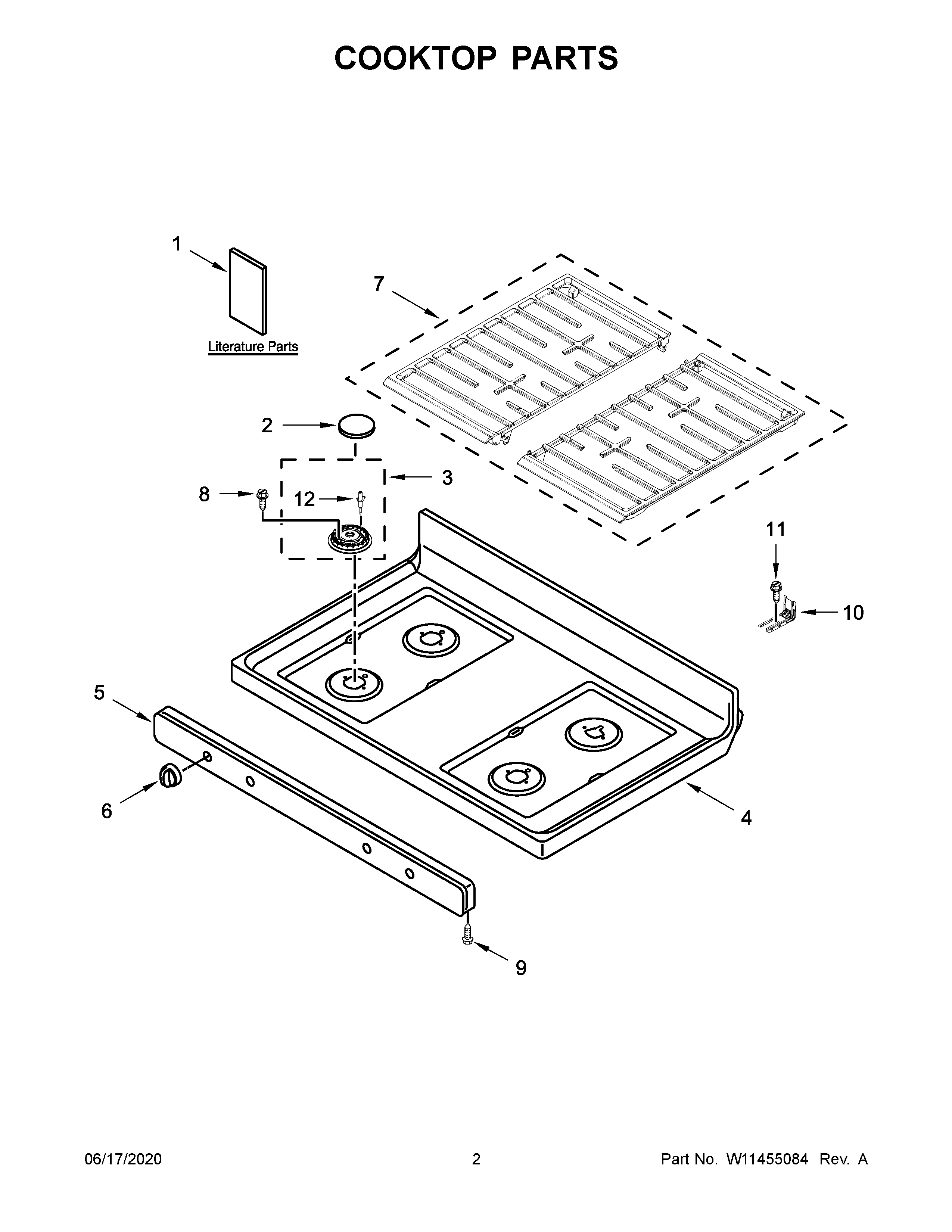

WFG515S0JS1 02 – COOKTOP PARTS
Products
Position
Product
NI
FOLLOWING PARTS NOT ILLUSTRATED
NI
3196896 Whirlpool Clip
NI
W10334923 Whirlpool Clip
NI
W11161843 Whirlpool Wire Harness
NI
W10797422 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
NI
3400964 Whirlpool Oven Clip
1A
USE AND CARE GUIDE
1
INSTALLATION INSTRUCTIONS
1B
TECH SHEET
1C
WIRING DIAGRAM
2
W11455147 Whirlpool Surface Burner Cap
3B
W11435657 Whirlpool Burner Head
3A
W11435659 Whirlpool Burner Head
3
W11435630 Whirlpool Oven Burner Head
4
W11455651 Whirlpool Cooktop
5
PANEL, MANIFOLD (BLACK)
6
W11159631 Whirlpool Knob Assembly
7
W11394363 Whirlpool Grate Kit
8
W11241230 Whirlpool Screw
9
WP3196557 Whirlpool Screw
10
W11447673 Whirlpool Range Tip Anchor
11
SCREW, ANTI-TIP KIT
12
W11453940 Whirlpool Surface Igniter
12A
W11453920 Whirlpool Surface Igniter
←
