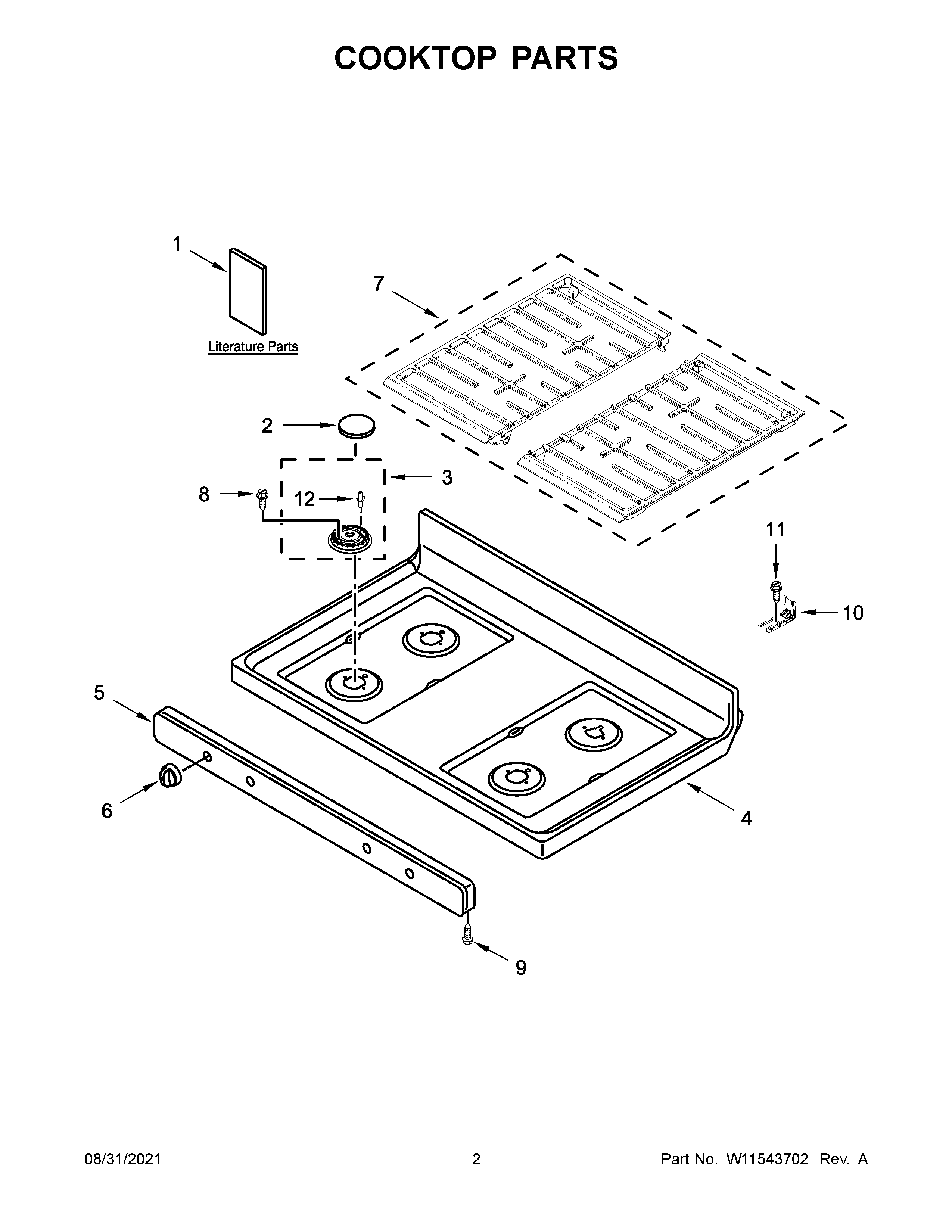

WFG515S0JS2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11645866 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11507573 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
1	OWNER'S MANUAL
1B	TECH SHEET
1A	QUICK START GUIDE
2	W11455147 Whirlpool Surface Burner Cap
3B	W11435657 Whirlpool Burner Head
3A	W11435659 Whirlpool Burner Head
3	W11435630 Whirlpool Oven Burner Head
4	W11455651 Whirlpool Cooktop
5	PANEL, MANIFOLD (BLACK)
6	W11159631 Whirlpool Knob Assembly
7	W11394363 Whirlpool Grate Kit
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12A	W11453920 Whirlpool Surface Igniter
12	W11453940 Whirlpool Surface Igniter
