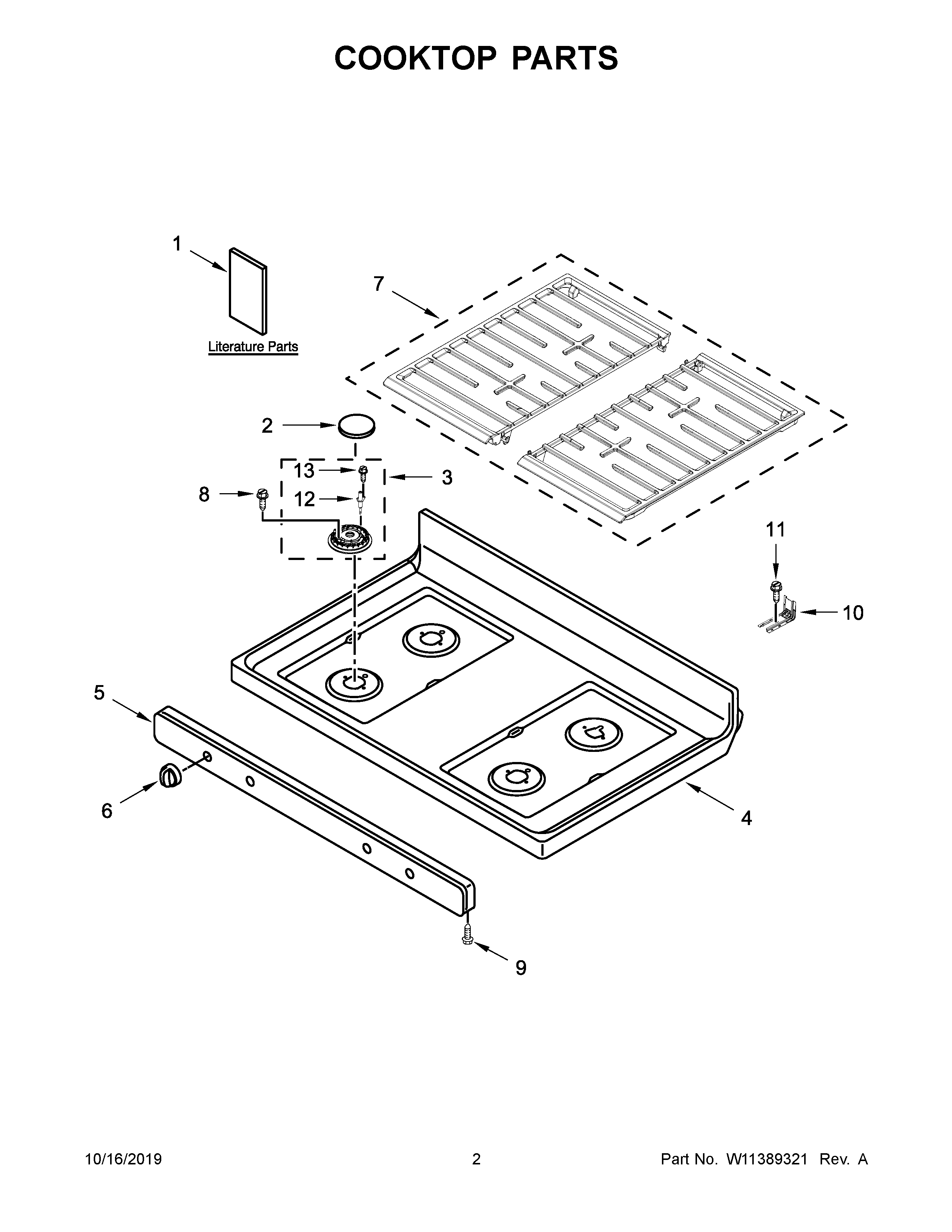

WFG515S0JW0 02 – COOKTOP PARTS
Written by
in
WFG515S0JW0 02 – COOKTOP PARTS
Products
Position
Product
NI
W10809927 Whirlpool Wire Harness
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11161843 Whirlpool Wire Harness
NI
3400964 Whirlpool Oven Clip
NI
16515 Whirlpool Clip
NI
W10334923 Whirlpool Clip
NI
W10797422 Whirlpool Wire Harness
NI
3196896 Whirlpool Clip
1A
GUIDE, USE AND CARE
1
INSTRUCTIONS, INSTALLATION
1C
WIRING DIAGRAM
1B
TECH SHEET
2
WPW10183375 Whirlpool Burner Cap
3B
WPW10515453 Whirlpool Burner Head
3A
WPW10515454 Whirlpool Burner Head
3
WPW10515455 Whirlpool Burner Head
4A
W10457443 Whirlpool Cooktop Assembly
4
W10457442 Whirlpool Cooktop
5A
W11246787 Whirlpool Manifold Panel
5
PANEL, MANIFOLD (BLACK)
6A
W11023142 Whirlpool Knob
6
W11159631 Whirlpool Knob Assembly
7
W11394363 Whirlpool Grate Kit
8
WP3368921 Whirlpool Screw
9
WP3196557 Whirlpool Screw
10
W11447673 Whirlpool Range Tip Anchor
11
SCREW, ANTI-TIP KIT
12A
WPW10515459 Whirlpool Surface Igniter
13
WP8273062 Whirlpool Screw
←
