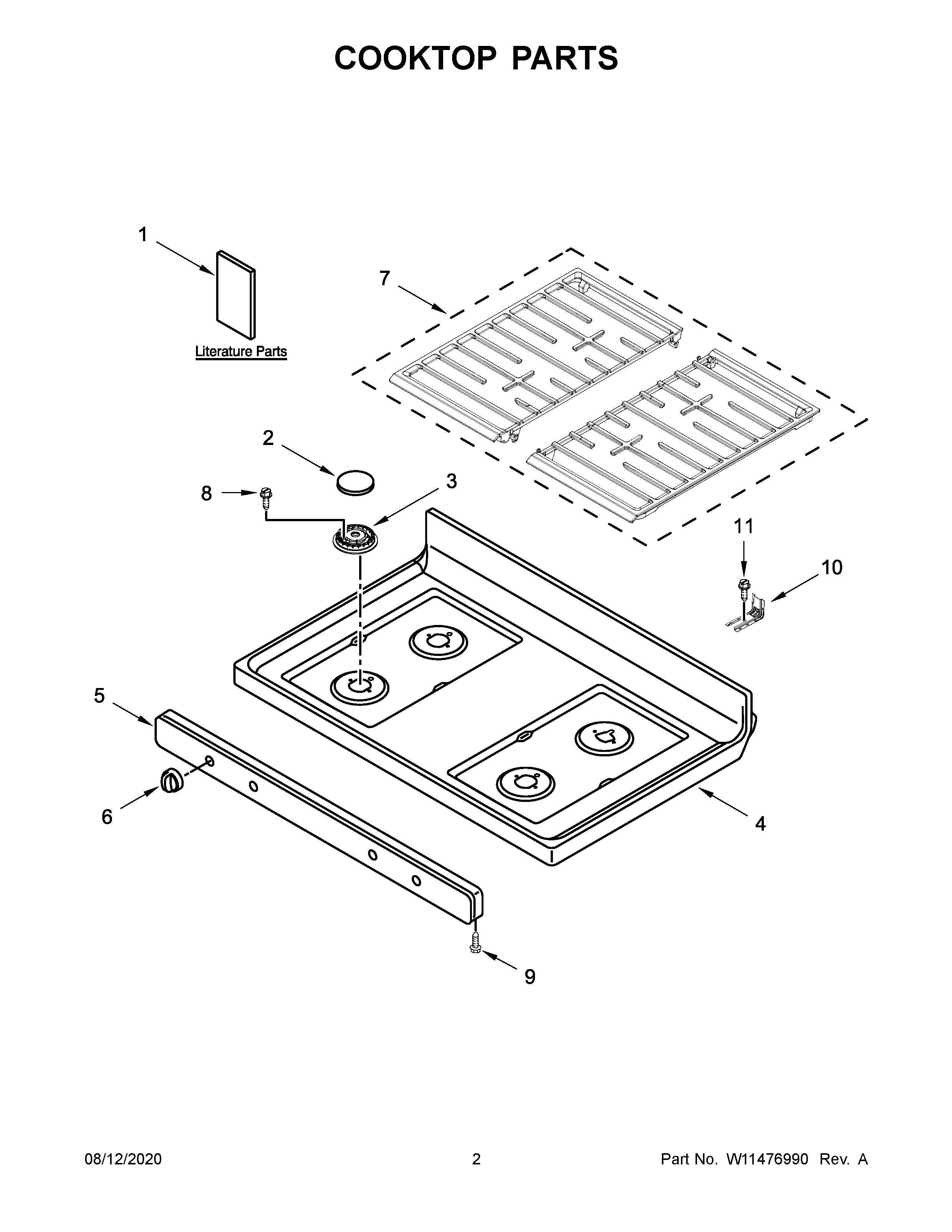

WFG515S0JW1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10797422 Whirlpool Wire Harness
NI	W11161843 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
1	INSTALLATION INSTRUCTIONS
1A	USE AND CARE GUIDE
1B	TECH SHEET
1C	WIRING DIAGRAM
2	W11455147 Whirlpool Surface Burner Cap
3B	W11435657 Whirlpool Burner Head
3A	W11435659 Whirlpool Burner Head
3	W11435630 Whirlpool Oven Burner Head
4	COOKTOP (WHITE)
5	W11246787 Whirlpool Manifold Panel
6	W11023142 Whirlpool Knob
7	W11394363 Whirlpool Grate Kit
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
