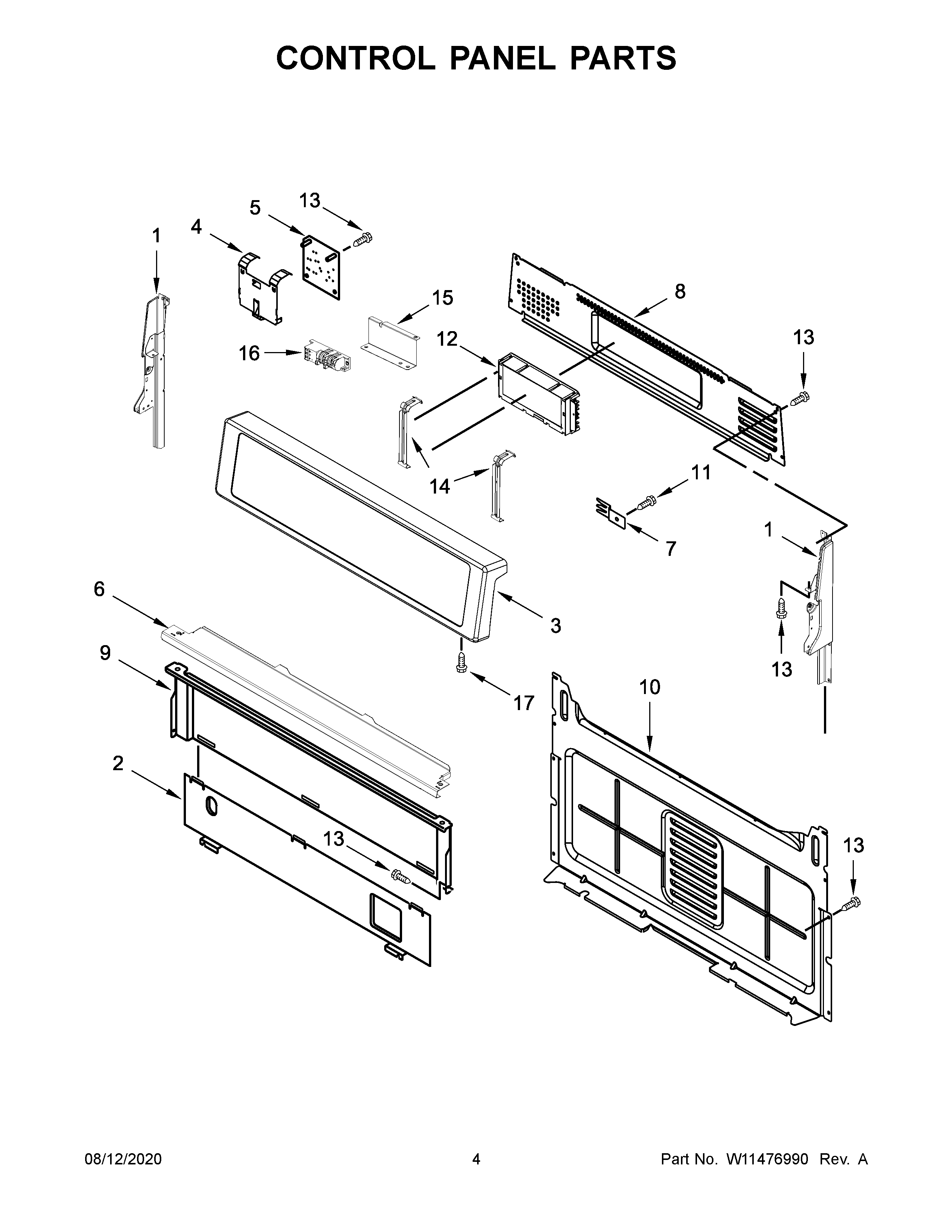

WFG515S0JW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1A	W11219370 Whirlpool Endcap Panel
2	8053505 Whirlpool Oven Shield
3	PANEL, CONTROL (WHITE)
4	W10762981 Whirlpool Mounting Bracket Assembly
5	W11162730 Whirlpool Spark Module
6	W10516123 Whirlpool Mounting Bracket
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	COVER, BACK
11	WP3196557 Whirlpool Screw
12	W11393092 Whirlpool Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	W10901176 Whirlpool Bracket Assembly
16	WPW10110491 Whirlpool Spark Module
17	WP3196175 Whirlpool Screw
