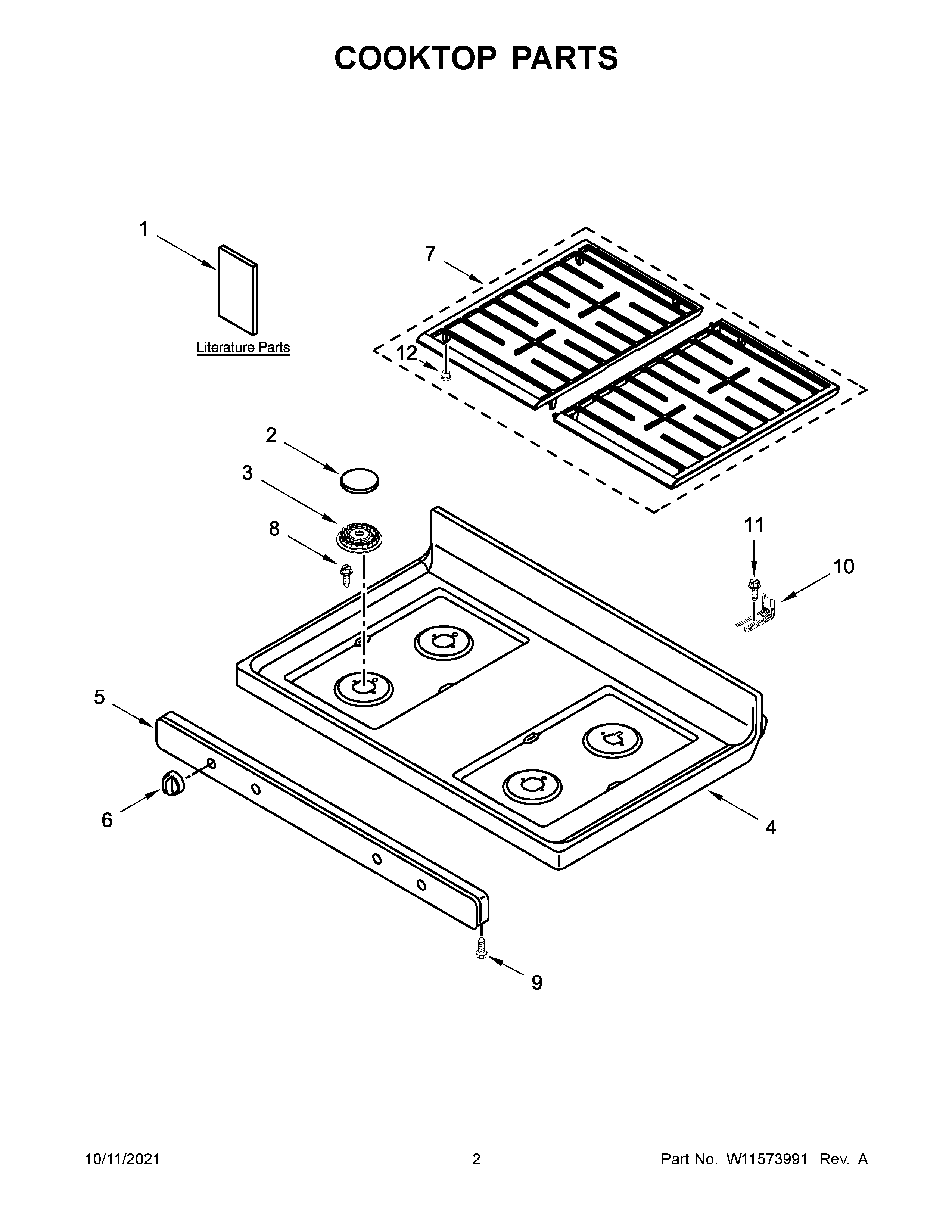

WFG515S0JW2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11645866 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
NIW11244557 Whirlpool Screw
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NIW11507573 Whirlpool Wire Harness
1BTECH SHEET
1OWNER'S MANUAL
1AQUICK START GUIDE
2W11455147 Whirlpool Surface Burner Cap
3BW11435657 Whirlpool Burner Head
3AW11435659 Whirlpool Burner Head
3W11435630 Whirlpool Oven Burner Head
4COOKTOP (WHITE)
5W11246787 Whirlpool Manifold Panel
6W11023142 Whirlpool Knob
7W11394363 Whirlpool Grate Kit
8W11241230 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12W10919249 Whirlpool Burner Grate Foot
