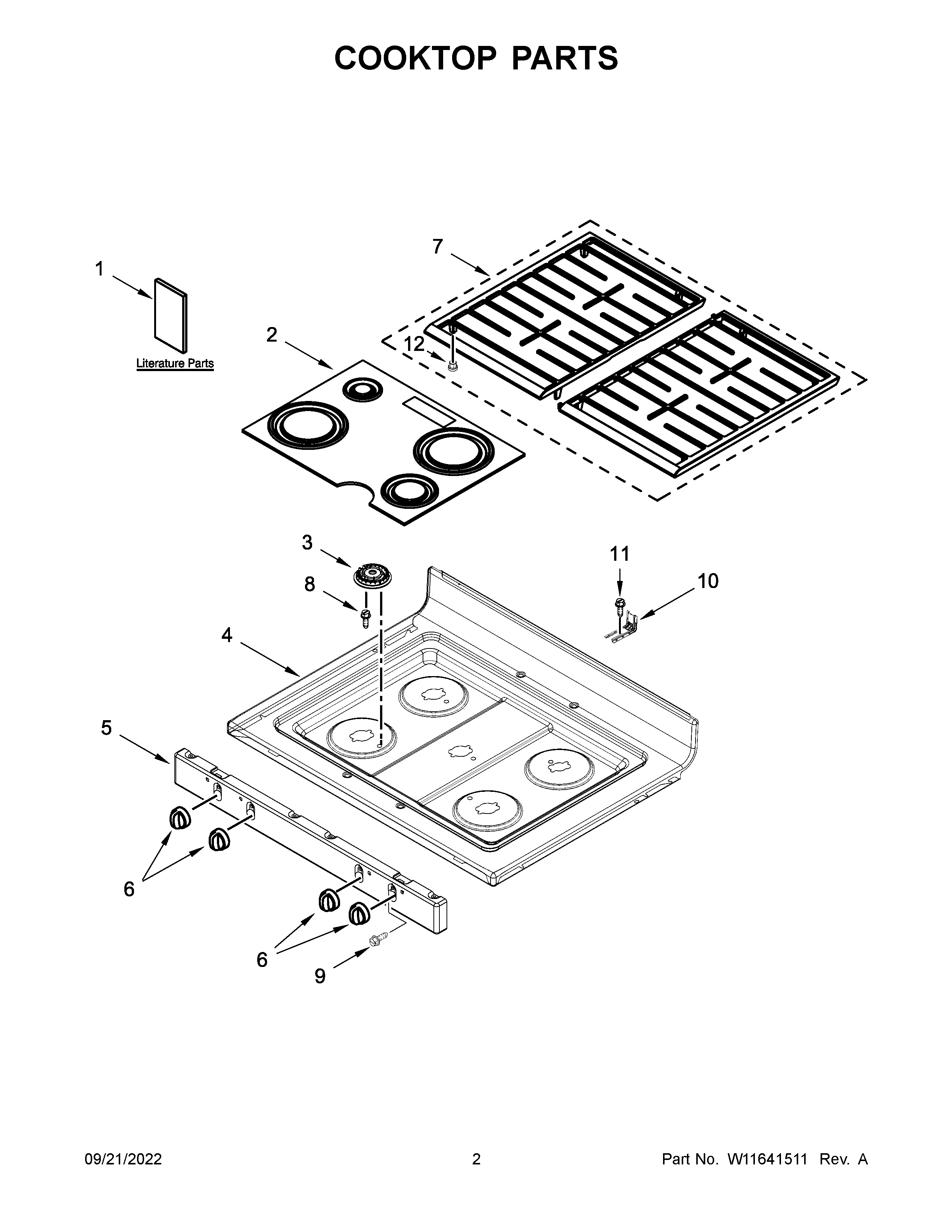

WFG515S0MB0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11645866 Whirlpool Wire Harness
NI	W11457167 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11244557 Whirlpool Screw
1A	TECH SHEET
1	OWNER'S MANUAL
1B	QUICK START GUIDE
2	W11455147 Whirlpool Surface Burner Cap
3A	W11435659 Whirlpool Burner Head
3B	W11435657 Whirlpool Burner Head
3	W11435630 Whirlpool Oven Burner Head
4	W11455651 Whirlpool Cooktop
4A	COOKTOP (WHITE)
5	PANEL, MANIFOLD (BLACK)
5A	W11246787 Whirlpool Manifold Panel
6	W11620557 Whirlpool Knob
6A	KNOB, CONTROL (WHITE)
7	W11603169 Whirlpool Burner Grate
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	W10919249 Whirlpool Burner Grate Foot
