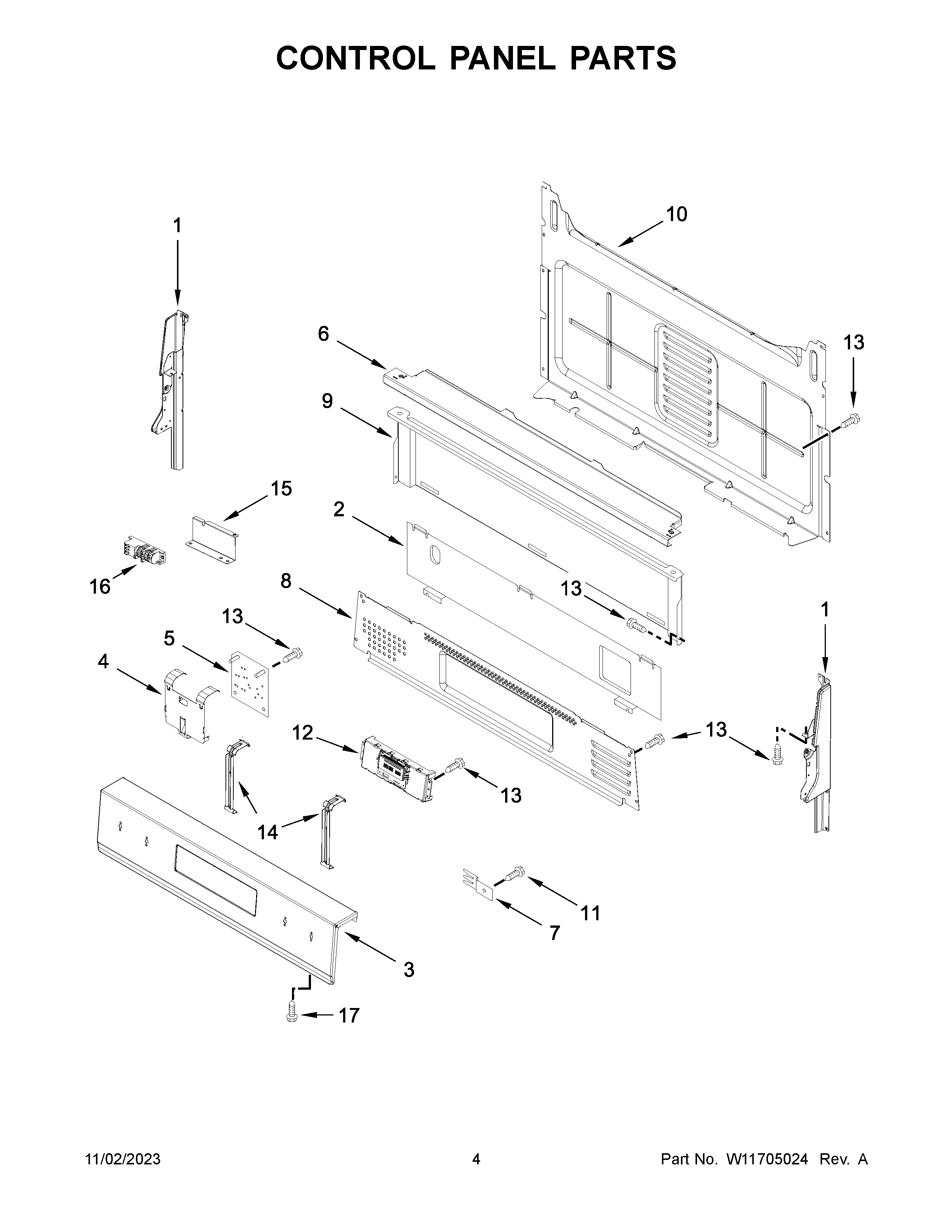

WFG515S0MW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1C	W11219370 Whirlpool Endcap Panel
1A	W11219365 Whirlpool Panel Endcap
2	8053505 Whirlpool Oven Shield
3	W11101498 Whirlpool Control Panel
3A	W11101500 Whirlpool Control Panel
4	W10762981 Whirlpool Mounting Bracket Assembly
5	W11162730 Whirlpool Spark Module
6	W10516123 Whirlpool Mounting Bracket
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	COVER, BACK
11	WP3196557 Whirlpool Screw
12A	W11620724-includeCORE Whirlpool W11620724 Electronic Control Board
12	W11620559-includeCORE Whirlpool W11620559 Refrigerator Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	W10901176 Whirlpool Bracket Assembly
16	WPW10110491 Whirlpool Spark Module
17	WP3196175 Whirlpool Screw
