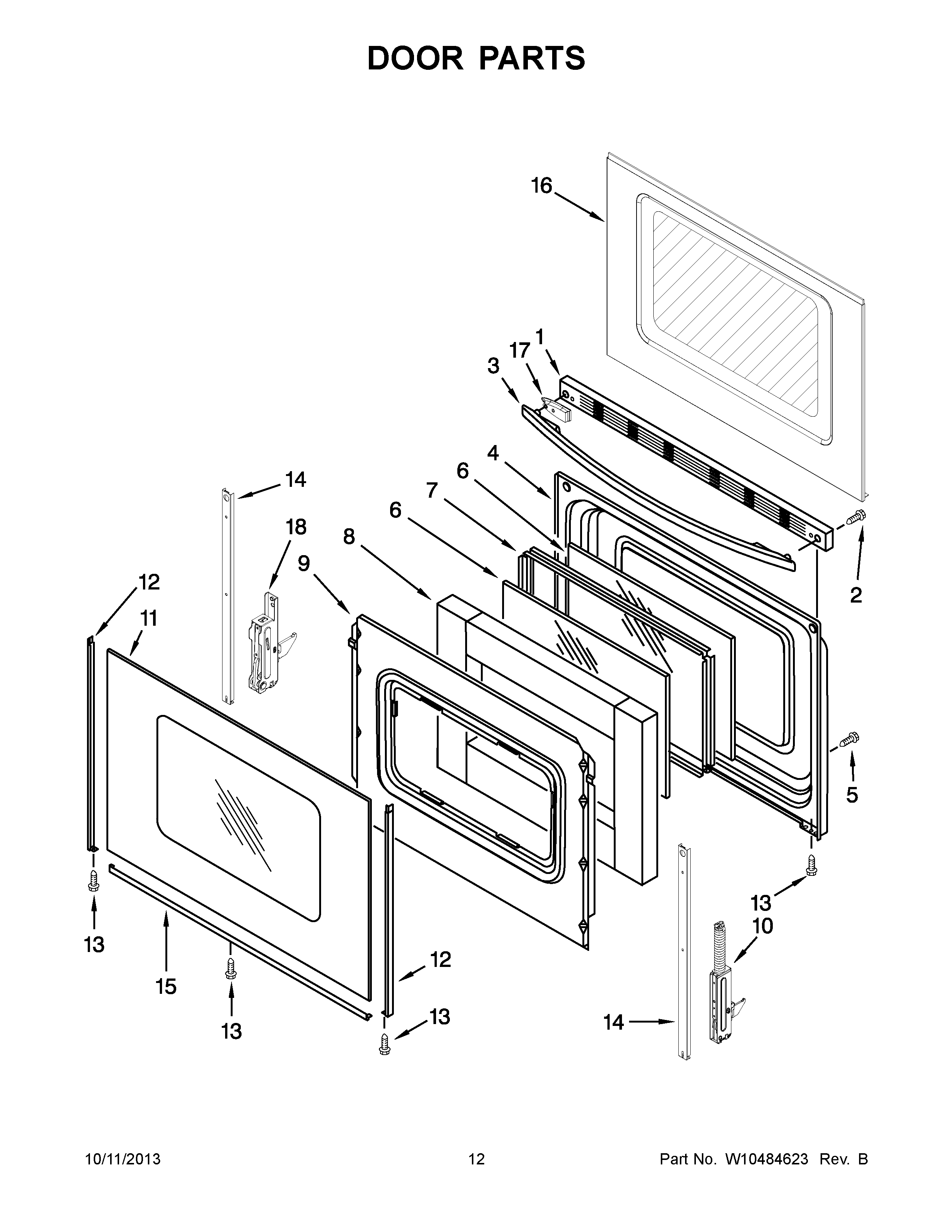

WFG520S0AW0 07 – DOOR PARTS

WFG520S0AW0 07 – DOOR PARTS

Written by

in

WFG520S0AW0 07 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
1W10817433 Whirlpool Vent Trim
2WPW10200660 Whirlpool Range Oven Door Handle Screw
3W10300490 Whirlpool Door Handle
3W10300489 Whirlpool Door Handle
3WPW10618239 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11WPW10409945 Whirlpool Glass Door
11WPW10409946 Whirlpool Door Glass
12WP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523172 Whirlpool Left Door Trim
13SCREW, HANDLE
14W11502236 Whirlpool Door Trim
15WP8523175 Whirlpool Door Trim Assembly
15WP8523177 Whirlpool Door Trim Assembly
16WPW10330077 Whirlpool Door Glass
17WPW10410341 Whirlpool Spacer
17WPW10429492 Whirlpool Spacer
17WPW10254688 Whirlpool Spacer
18WPW10299227 Whirlpool Range Door Hinge
