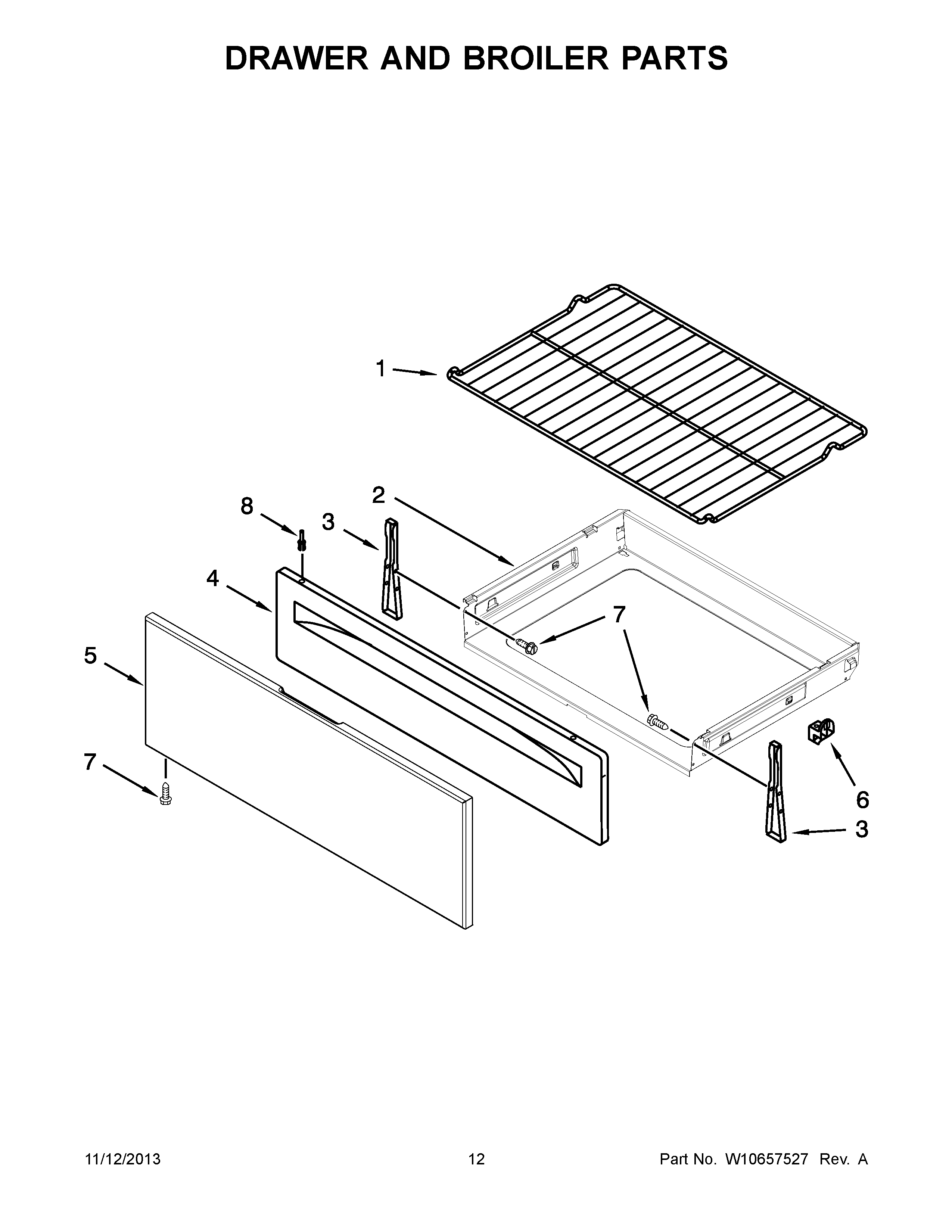

WFG520S0AW2 07 – DRAWER AND BROILER PARTS

WFG520S0AW2 07 – DRAWER AND BROILER PARTS

Written by

in

WFG520S0AW2 07 – DRAWER AND BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2W10813962 Whirlpool Utility Drawer
3W10462911 Whirlpool Bracket Mounting
3BRKT-MNTG
4W11230486 Whirlpool Drawer Panel
4W11230490 Whirlpool Drawer Panel
5W11256444 Whirlpool Drawer Panel
6GLIDE-RANGE DRAWER KIT
7WP3196175 Whirlpool Screw
8WP3196814 Whirlpool Rivet
8WP3196813 Whirlpool Rivet
