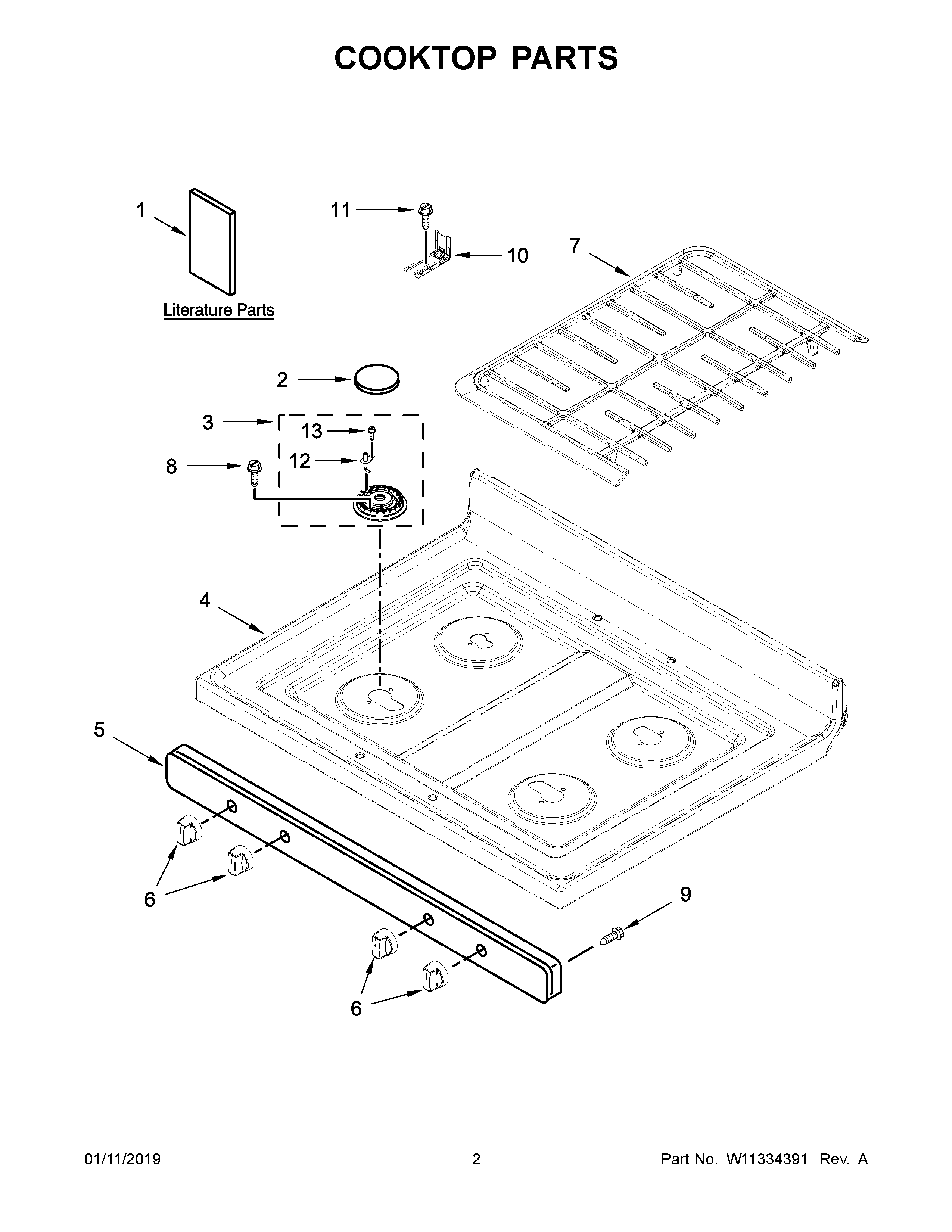

WFG520S0FS1 02 – COOKTOP PARTS

Products

Position	Product
NI	W10809927 Whirlpool Wire Harness
NI	W10849001 Whirlpool Wire Harness
NI	W11161843 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11244557 Whirlpool Screw
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
1B	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
1A	GUDE, USE & CARE
1C	DIAGRAM, WIRING
2	WPW10183375 Whirlpool Burner Cap
3	WPW10515455 Whirlpool Burner Head
3A	WPW10515454 Whirlpool Burner Head
3B	WPW10515453 Whirlpool Burner Head
4	W10457442 Whirlpool Cooktop
5	W11026861 Whirlpool Manifold Panel
6	W11122880 Whirlpool Range Surface Control Knob
7	W11394363 Whirlpool Grate Kit
8	WP3368921 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12A	WPW10515459 Whirlpool Surface Igniter
13	WP8273062 Whirlpool Screw
