WFG524SLAB1 06 – DRAWER & BROILER PARTS

WFG524SLAB1 06 – DRAWER & BROILER PARTS

Written by

in

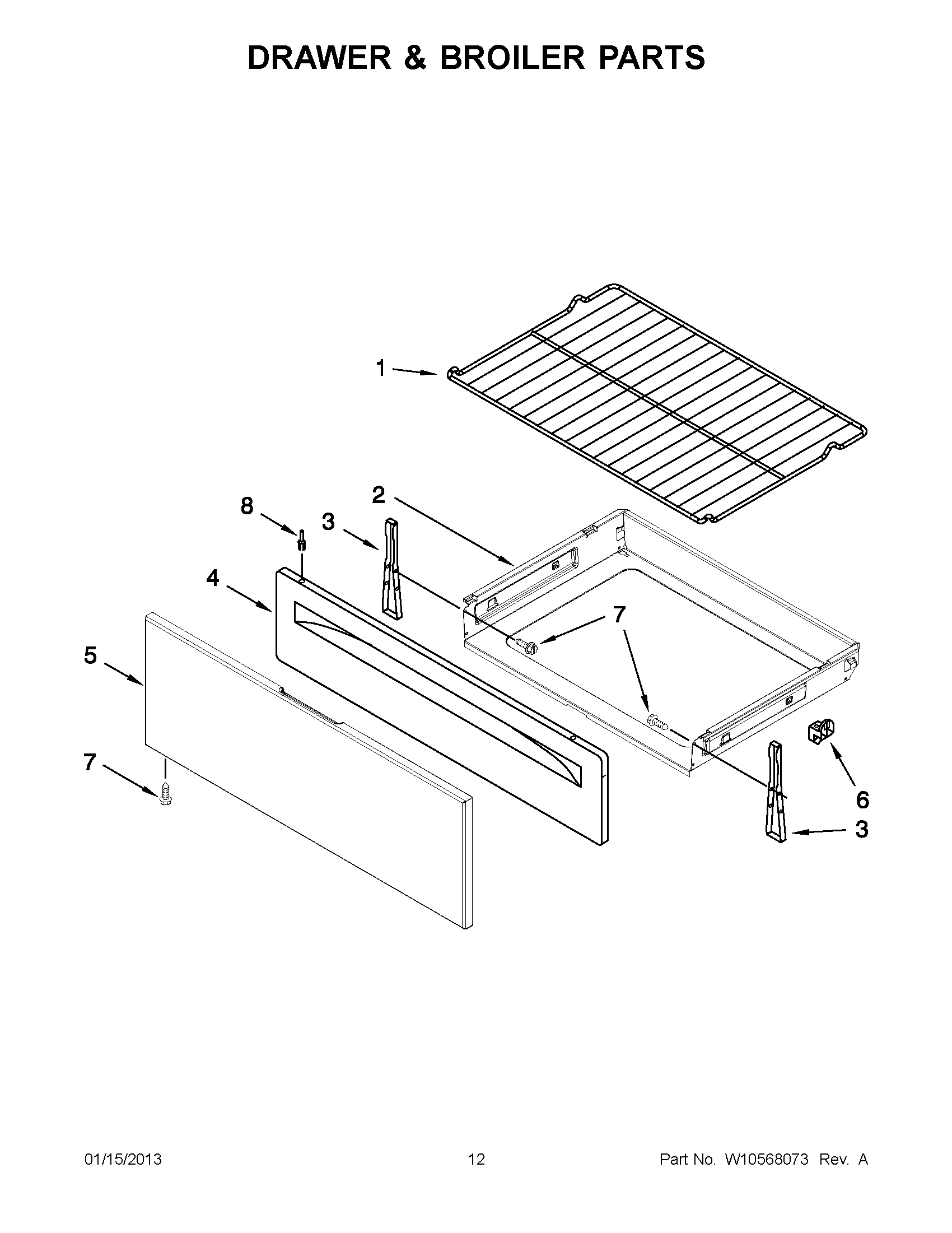

WFG524SLAB1 06 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2W10813962 Whirlpool Utility Drawer
3W10462911 Whirlpool Bracket Mounting
3BRKT-MNTG
4W11230486 Whirlpool Drawer Panel
4W11230490 Whirlpool Drawer Panel
5W11256444 Whirlpool Drawer Panel
6GLIDE-RANGE DRAWER KIT
7WP355214 Whirlpool Screw
8WP3196814 Whirlpool Rivet
8WP3196813 Whirlpool Rivet
