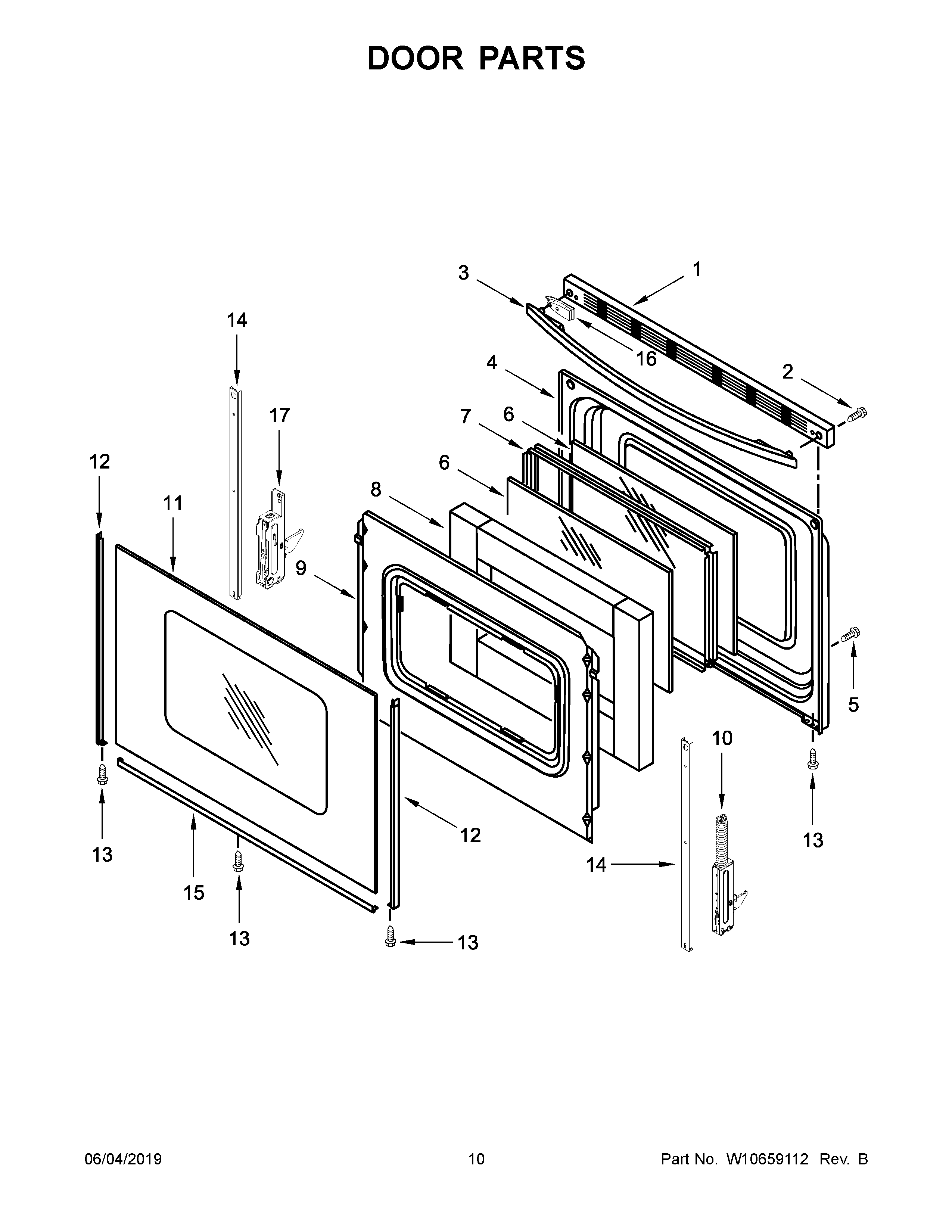

WFG524SLAB2 06 – DOOR PARTS

WFG524SLAB2 06 – DOOR PARTS

Written by

in

WFG524SLAB2 06 – DOOR PARTS

Products

PositionProduct
1W10817433 Whirlpool Vent Trim
1ATRIM-VENT
2WPW10465148 Whirlpool Screw
3BWPW10618239 Whirlpool Door Handle
3AW10300490 Whirlpool Door Handle
3W10300489 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299226 Whirlpool Door Hinge
11BWPW10330077 Whirlpool Door Glass
11WPW10409945 Whirlpool Glass Door
11AWPW10409946 Whirlpool Door Glass
12BWP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12AW10761018 Whirlpool Dishwasher Left Door Trim
12CW10761014 Whirlpool Right Door Trim
13WP355214 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WP8523175 Whirlpool Door Trim Assembly
15AWP8523177 Whirlpool Door Trim Assembly
16WPW10410341 Whirlpool Spacer
17WPW10299227 Whirlpool Range Door Hinge
