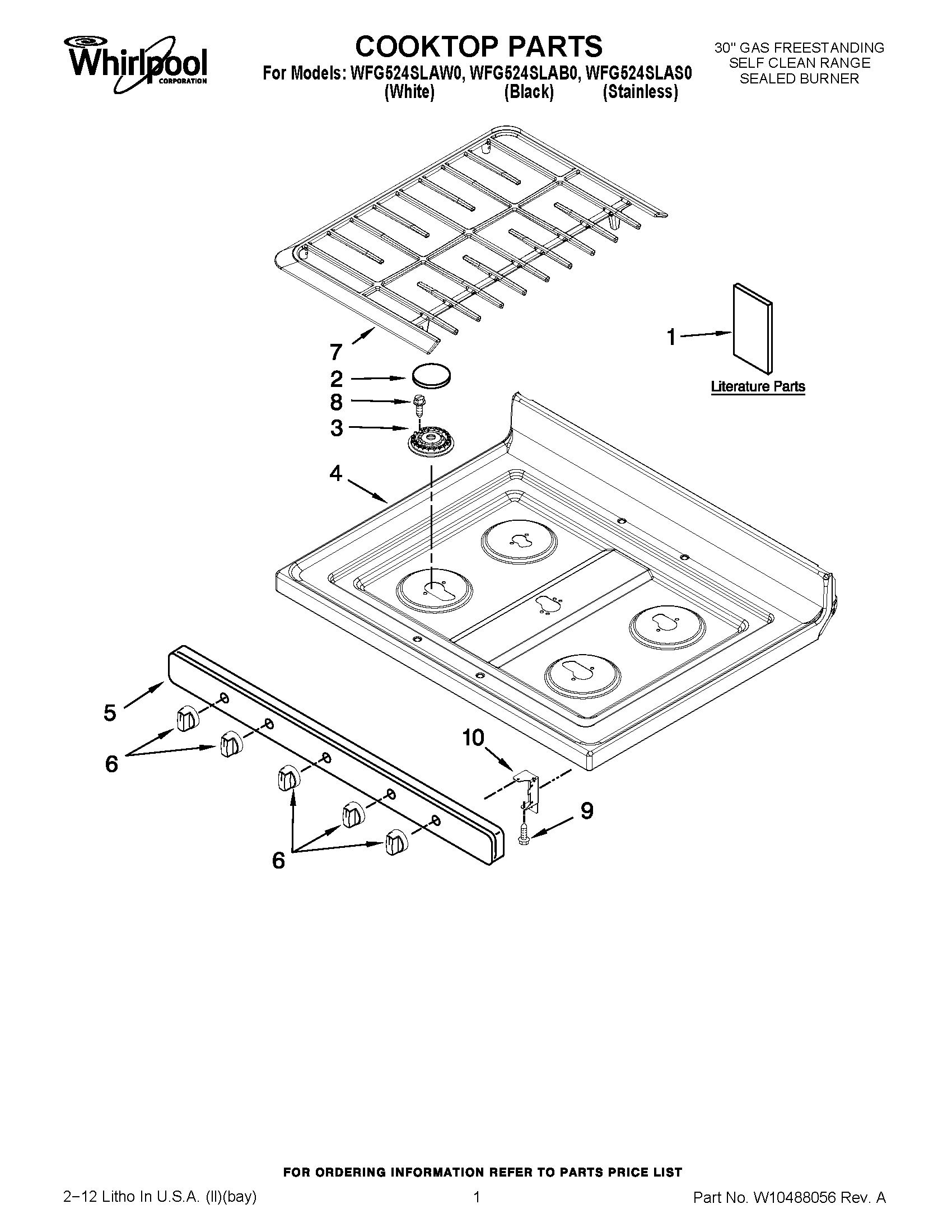

WFG524SLAS0 01 – COOKTOP PARTS

WFG524SLAS0 01 – COOKTOP PARTS

Written by

in

WFG524SLAS0 01 – COOKTOP PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1SAFER COOKING TIPS (ENGLISH
1GUIDE, USE AND CARE
1TECH SHEET (ENGLISH)
2WPW10183374 Whirlpool Burner Cap
3WPW10406243 Whirlpool Burner Head Auxiliary 6K
3WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
3WPW10406878 Whirlpool Burner Base (16K)
4W10457322 Whirlpool Cooktop
4W10457321 Whirlpool Cooktop
5W10444453 Whirlpool Manifold Panel
5W10444452 Whirlpool Manifold Panel
6WPW10339442 Whirlpool Range Black Burner Control Knob
6WPW10339443 Whirlpool Knob
7W11394363 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
108523249 Whirlpool Oven Support Bracket
