WFG524SLAS2 02 – COOKTOP PARTS

WFG524SLAS2 02 – COOKTOP PARTS

Written by

in

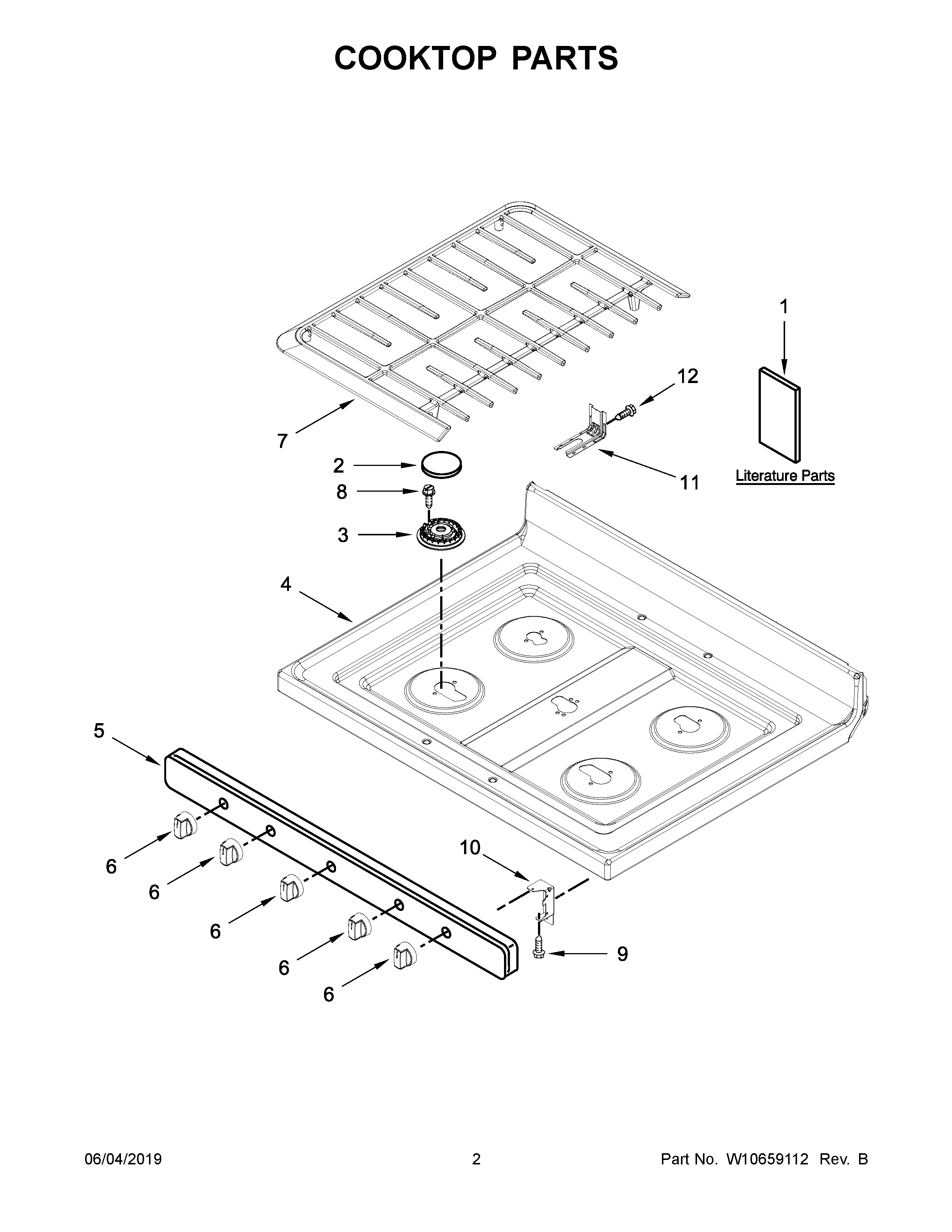

WFG524SLAS2 02 – COOKTOP PARTS

Products

PositionProduct
NIW10625534 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW10519920 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
NI16515 Whirlpool Clip
NIWP3196174 Whirlpool Screw
NIW10738993 Whirlpool Wire Harness
NIW11161843 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
1AGUIDE, USE AND CARE
1BTECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
2WPW10183374 Whirlpool Burner Cap
3WPW10515455 Whirlpool Burner Head
3AWPW10515454 Whirlpool Burner Head
3BWPW10515453 Whirlpool Burner Head
4AW10457321 Whirlpool Cooktop
4W10457322 Whirlpool Cooktop
5AW10444453 Whirlpool Manifold Panel
5W10444452 Whirlpool Manifold Panel
6WPW10339443 Whirlpool Knob
6AWPW10339442 Whirlpool Range Black Burner Control Knob
7W11394363 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
108523249 Whirlpool Oven Support Bracket
11W11447673 Whirlpool Range Tip Anchor
12SCREW, ANTI-TIP KIT
