WFG524SLAS2 03 – CONTROL PANEL PARTS
Written by
in

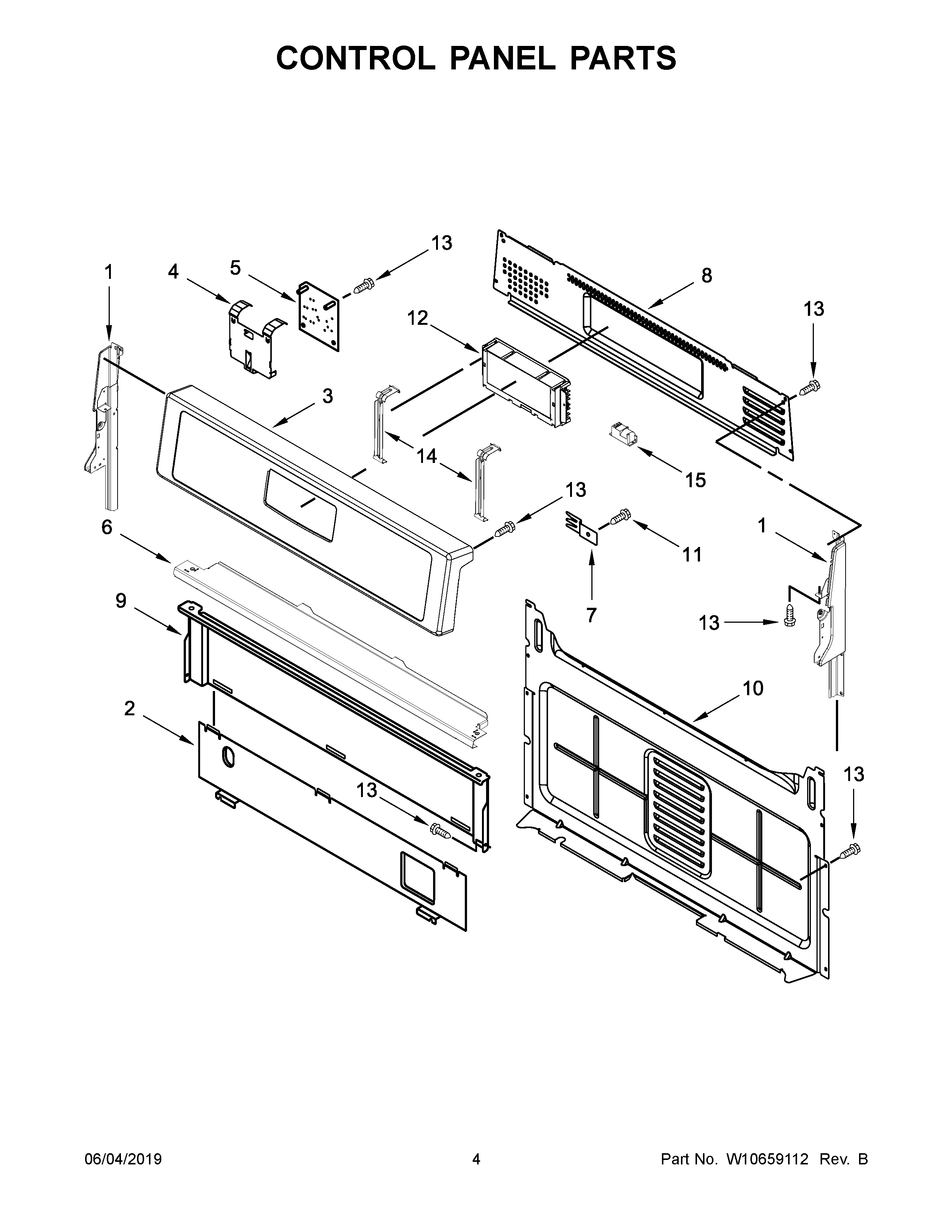

WFG524SLAS2 03 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219365 Whirlpool Panel Endcap
1A
W11219664 Whirlpool Endcap Panel
1C
W11219665 Whirlpool Panel Endcap
1B
W11219370 Whirlpool Endcap Panel
2
8053505 Whirlpool Oven Shield
3
W11234436 Whirlpool Control Panel
3A
W11234434 Whirlpool Control Panel
3B
W11231628 Whirlpool Control Panel
4
W10762981 Whirlpool Mounting Bracket Assembly
5
W11162730 Whirlpool Spark Module
6
W10516123 Whirlpool Mounting Bracket
7
8523412 Whirlpool Mounting Bracket
8
W10198745 Whirlpool Rear Cover
9
W10192841 Whirlpool Heat Shield
10
W10184251 Whirlpool Rear Cover
11
WP3196557 Whirlpool Screw
12A
WPW10348656-includeCORE Whirlpool WPW10348656 Refrigerator Electronic Control Board + Core
12
WPW10348710-includeCORE Whirlpool WPW10348710 Refrigerator Electronic Control Board + Core
12B
WPW10424890 Whirlpool Electronic Control Board + Core
13
SCREW
14
W11230932 Whirlpool Bracket Mounting
15
WPW10475149 Whirlpool Spark Module
←
