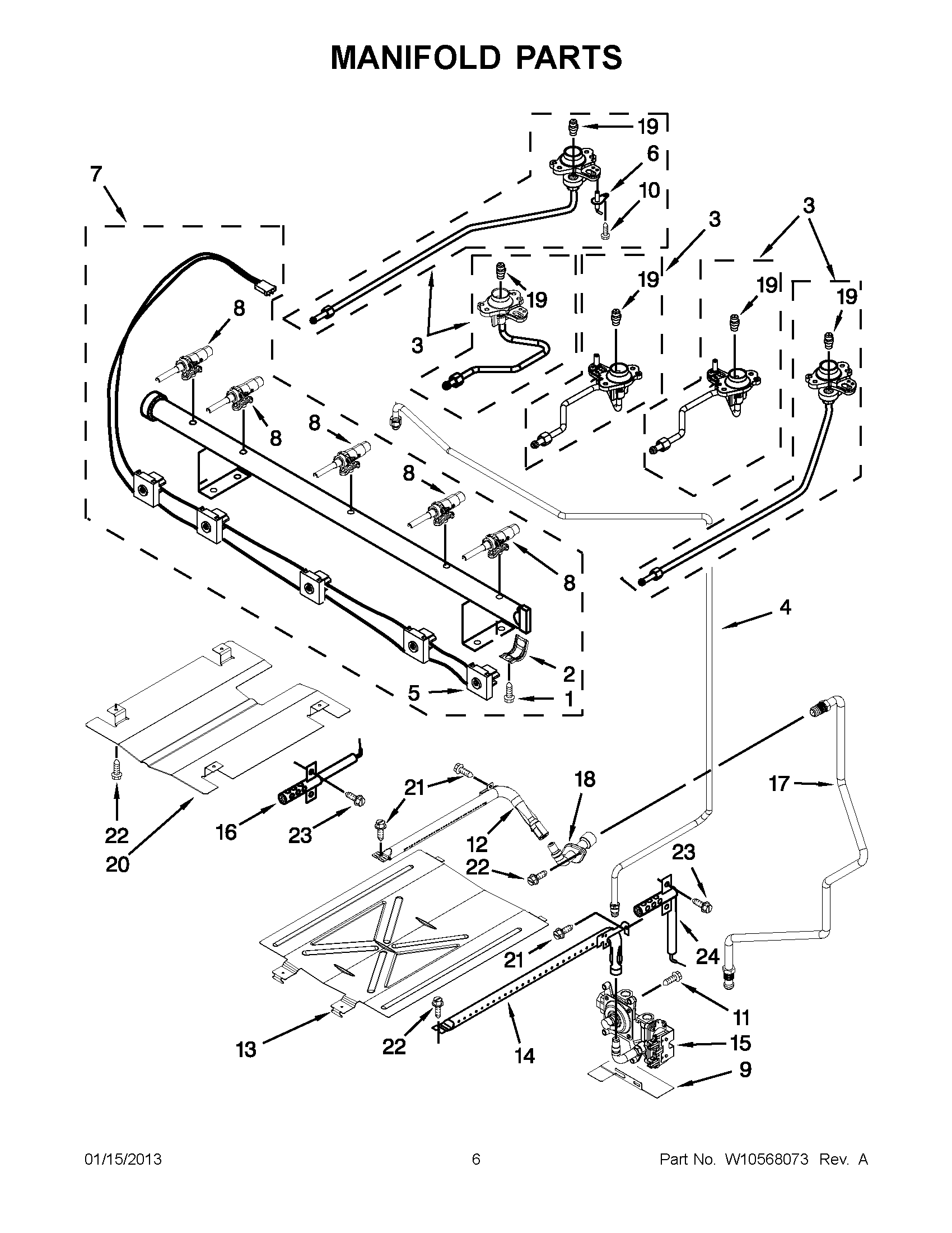

WFG524SLAW1 03 – MANIFOLD PARTS

Products

Position	Product
NI	WPW10400498 Whirlpool Orifice
NI	WPW10400495 Whirlpool Orifice Assembly
NI	SPUD-ORFCE
NI	CABINET (NOT A SERVICEABLE PART)
1	W10295997 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3	ORIFICE, HOLDER ASSEMBLY 9.5K (LEFT REAR)
3	ORIFICE, HOLDER ASSEMBLY 5K (RIGHT REAR)
3	W10462946 Whirlpool Orifice Holder
3	W10462943 Whirlpool Orifice Holder
3	WPW10462934 Whirlpool Orifice Holder
4	W11680399 Whirlpool Gas Tubing
5	WPW10413868 Whirlpool Wire Harness
6	WPW10216419 Whirlpool Surface Igniter
7	WPW10413870 Whirlpool Manifold Assembly
8	WPW10279615 Whirlpool Burner Valve
8	WPW10247744 Whirlpool Burner Valve
8	WPW10279614 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	WP8273062 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	WPW10602001 Whirlpool Gas Valve
16	WP8054129 Whirlpool Oven Igniter
17	W10420040 Whirlpool Gas Tubing
18	FITTING, BROILER
19	WPW10170508 Whirlpool Orifice Spud
19	WPW10347414 Whirlpool Orifice Spud
19	WPW10170506 Whirlpool Orifice Spud
20	W10137062 Whirlpool Burner Baffle
21	3196265 Whirlpool Oven Screw
22	SCREW
23	W11684507 Whirlpool Screw
24	WP9758079 Whirlpool Oven Igniter
