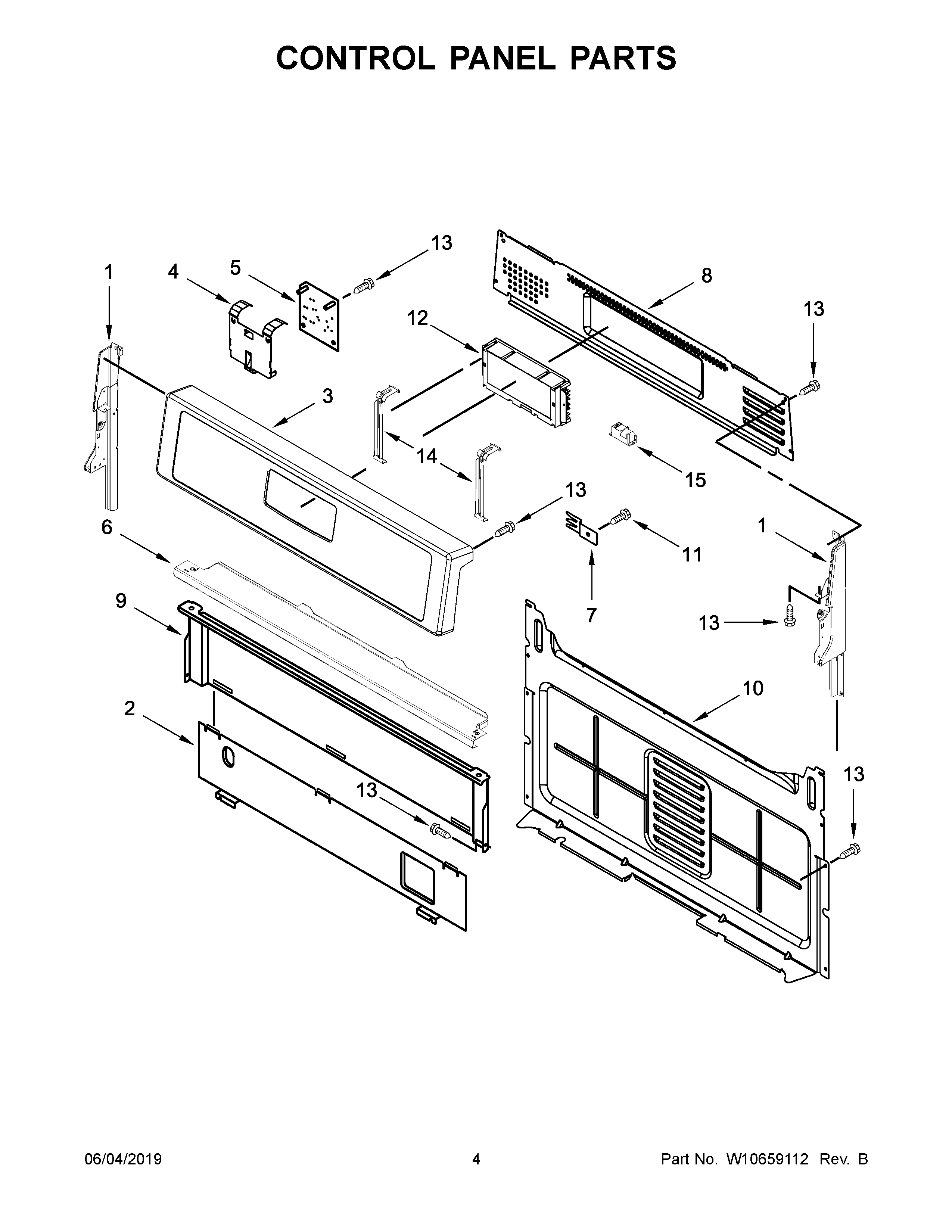

WFG524SLAW2 03 – CONTROL PANEL PARTS

WFG524SLAW2 03 – CONTROL PANEL PARTS

Written by

in

WFG524SLAW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1AW11219664 Whirlpool Endcap Panel
1CW11219665 Whirlpool Panel Endcap
1BW11219370 Whirlpool Endcap Panel
28053505 Whirlpool Oven Shield
3W11234436 Whirlpool Control Panel
3AW11234434 Whirlpool Control Panel
3BW11231628 Whirlpool Control Panel
4W10762981 Whirlpool Mounting Bracket Assembly
5W11162730 Whirlpool Spark Module
6W10516123 Whirlpool Mounting Bracket
78523412 Whirlpool Mounting Bracket
8W10198745 Whirlpool Rear Cover
9W10192841 Whirlpool Heat Shield
10W10184251 Whirlpool Rear Cover
11WP3196557 Whirlpool Screw
12AWPW10348656-includeCORE Whirlpool WPW10348656 Refrigerator Electronic Control Board + Core
12WPW10348710-includeCORE Whirlpool WPW10348710 Refrigerator Electronic Control Board + Core
12BWPW10424890 Whirlpool Electronic Control Board + Core
13SCREW
14W11230932 Whirlpool Bracket Mounting
15WPW10475149 Whirlpool Spark Module
