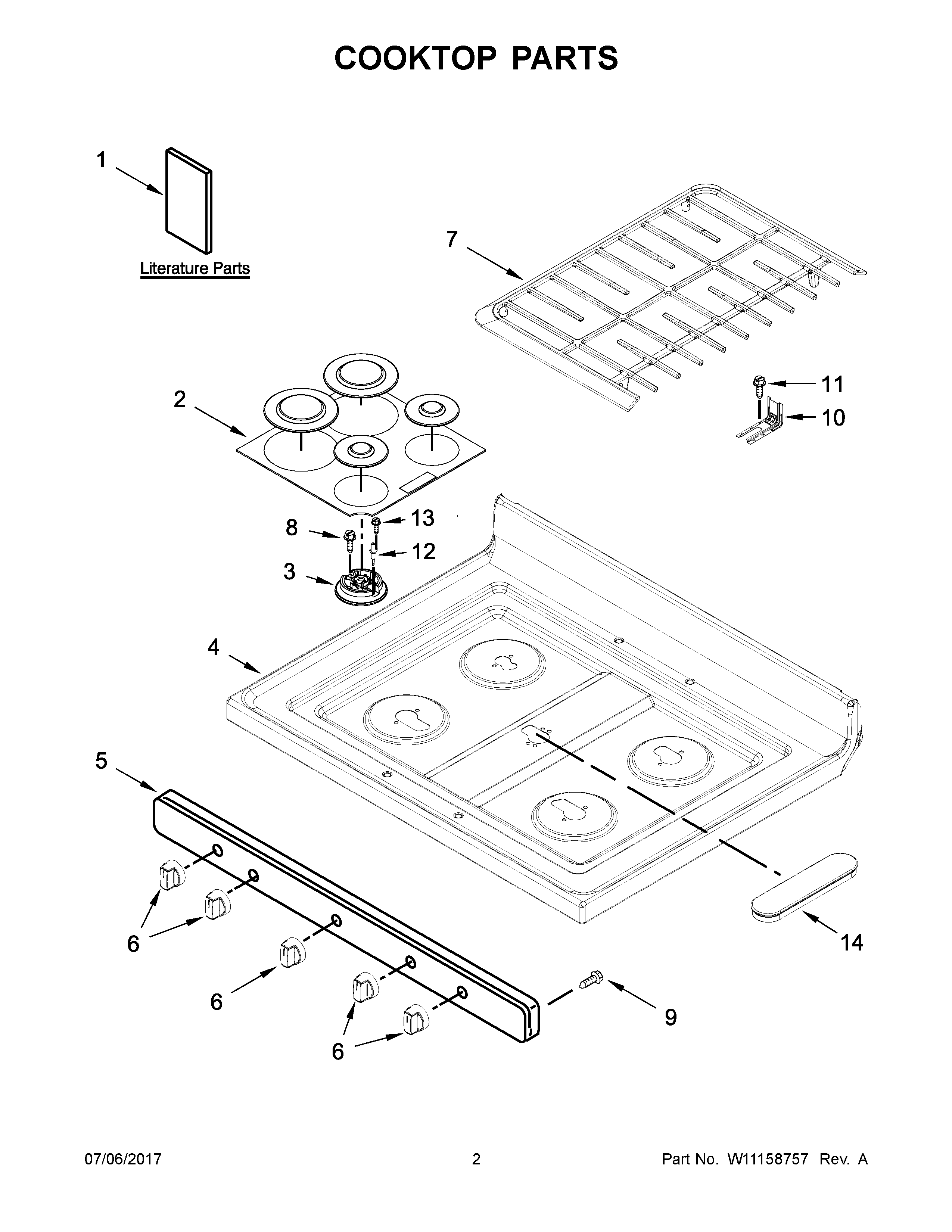

WFG525S0HD0 02 – COOKTOP PARTS

WFG525S0HD0 02 – COOKTOP PARTS

Written by

in

WFG525S0HD0 02 – COOKTOP PARTS

Products

PositionProduct
NIW10334923 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
NIW10842520 Whirlpool Wire Harness
NIW11161843 Whirlpool Wire Harness
NIW10809927 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
NI16515 Whirlpool Clip
1INSTRUCTIONS, INSTALLATION
1BSHEET, TECH (ENGLISH)
1CDIAGRAM, WIRING
1AGUIDE, USE AND CARE
1ESafer Cooking Tips (French)
1DSAFER COOKING TIPS (ENGLISH
2W10881749 Whirlpool Burner Cap
3BWPW10515453 Whirlpool Burner Head
3AWPW10515454 Whirlpool Burner Head
3WPW10515455 Whirlpool Burner Head
4W11032119 Whirlpool Cooktop
5AW11159628 Whirlpool Manifold Panel
5W11159626 Whirlpool Manifold Panel
6AW11159631 Whirlpool Knob Assembly
6KNOB
7W11252165 Whirlpool Burner Grate
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12WPW10515459 Whirlpool Surface Igniter
13WP8273062 Whirlpool Screw
14W11162114 Whirlpool Top Burner Assembly
