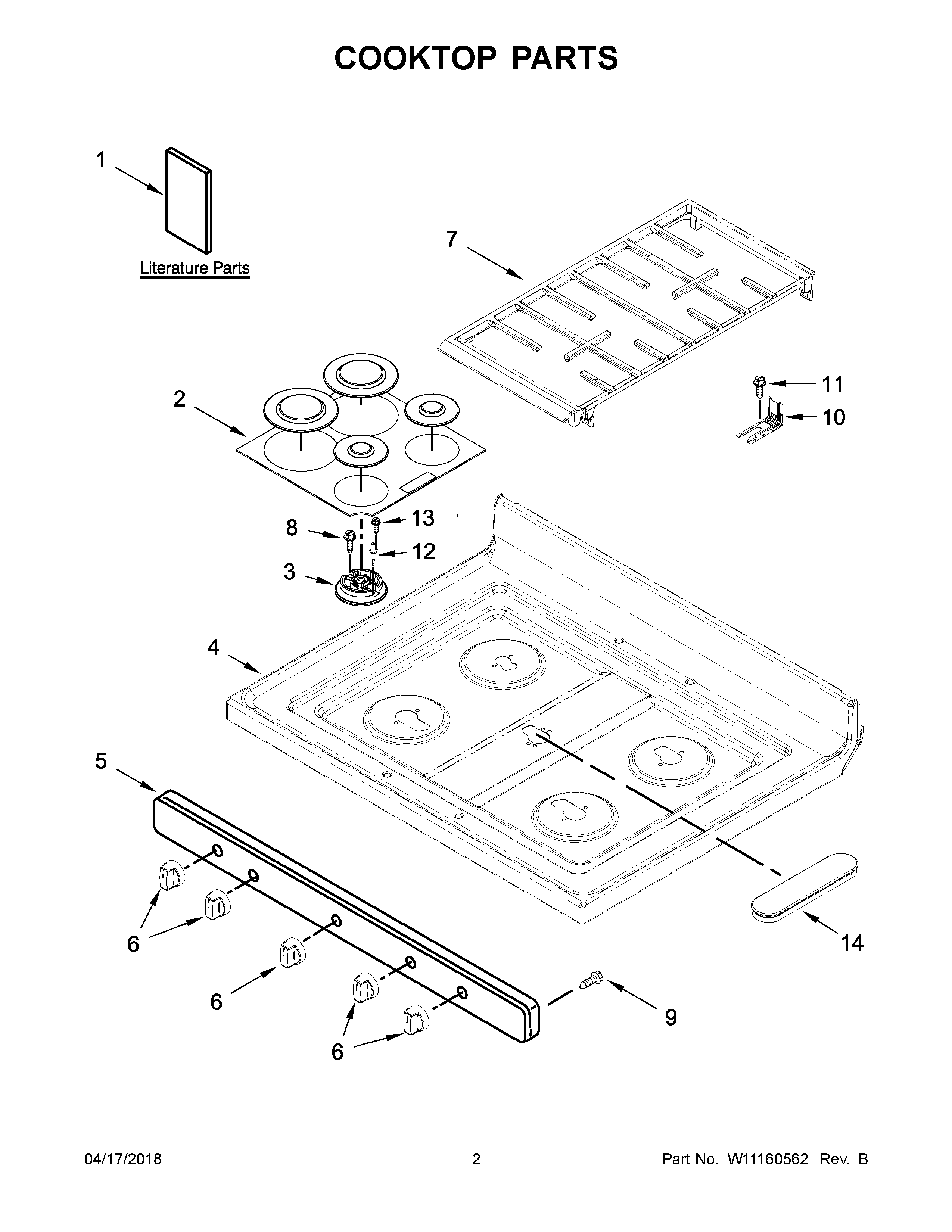

WFG525S0HZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10842520 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
NI	W10334923 Whirlpool Clip
NI	W11161843 Whirlpool Wire Harness
NI	W10809927 Whirlpool Wire Harness
1C	DIAGRAM, WIRING
1A	GUIDE, USE AND CARE
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH (ENGLISH)
2	W10881749 Whirlpool Burner Cap
3A	WPW10515454 Whirlpool Burner Head
3	WPW10515455 Whirlpool Burner Head
3B	WPW10515453 Whirlpool Burner Head
4	W11032119 Whirlpool Cooktop
5	W11165140 Whirlpool Manifold Panel
5A	W11165142 Whirlpool Manifold Panel
6A	KNOB
6	KNOB
7	W11252165 Whirlpool Burner Grate
8	WP3368921 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	WPW10515459 Whirlpool Surface Igniter
13	WP8273062 Whirlpool Screw
14	W11162114 Whirlpool Top Burner Assembly
