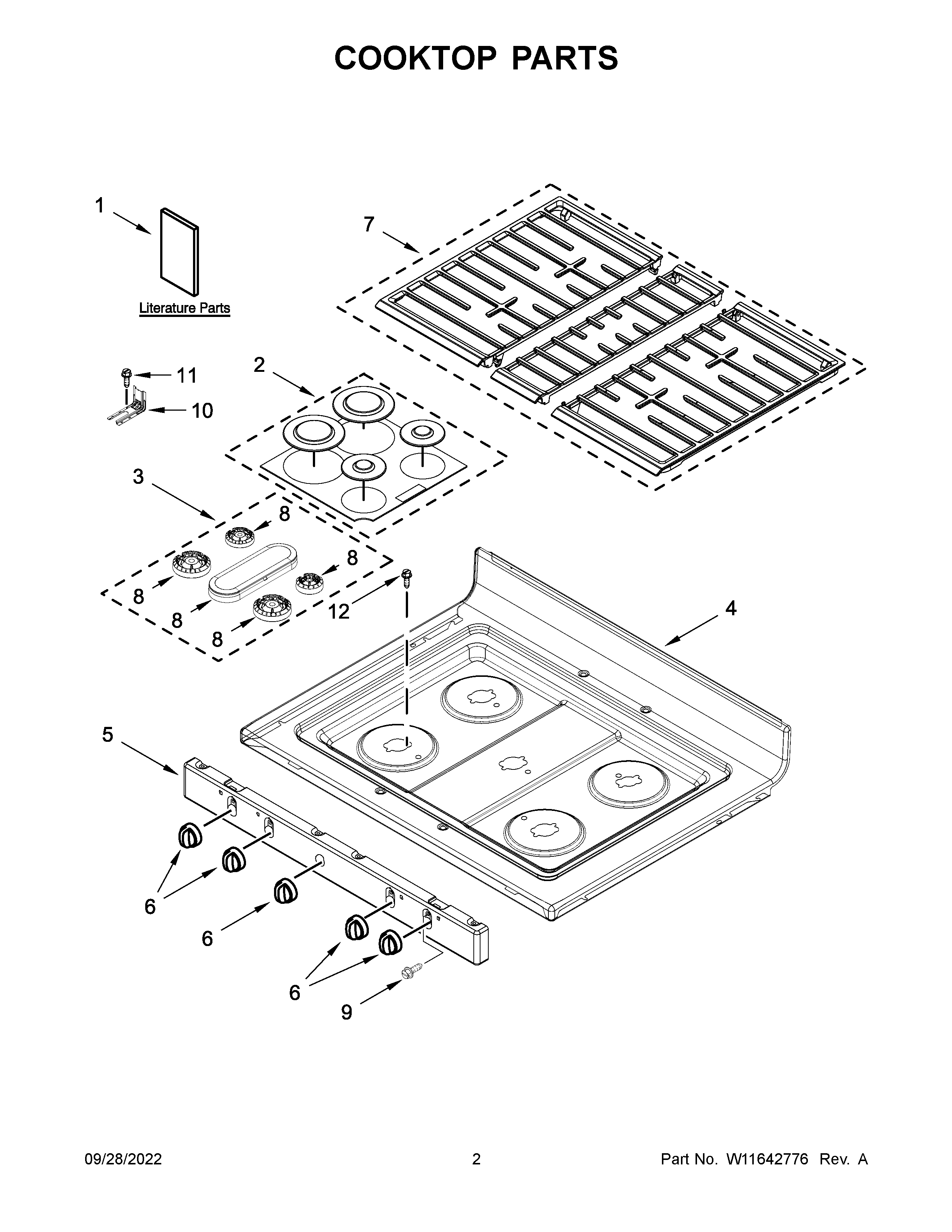

WFG525S0JB5 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11645866 Whirlpool Wire Harness
NI	W11457167 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	WPW10182767 Whirlpool Wire Tie
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	W11244557 Whirlpool Screw
1	OWNER'S MANUAL
1B	WIRING DIAGRAM
1A	QUICK START GUIDE
2	W11455147 Whirlpool Surface Burner Cap
3	W11662402 Whirlpool Range Burner Head
4	W11454367 Whirlpool Cooktop
4A	W11478143 Whirlpool Cooktop Assembly
5A	W11089577 Whirlpool Manifold Panel
5	W11159628 Whirlpool Manifold Panel
6A	KNOB, CONTROL (WHITE)
6	W11620557 Whirlpool Knob
7	W11252165 Whirlpool Burner Grate
8	W11435630 Whirlpool Oven Burner Head
8A	W11435659 Whirlpool Burner Head
8B	W11435657 Whirlpool Burner Head
8C	W11475513 Whirlpool Top Burner Assembly
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	W11241230 Whirlpool Screw
