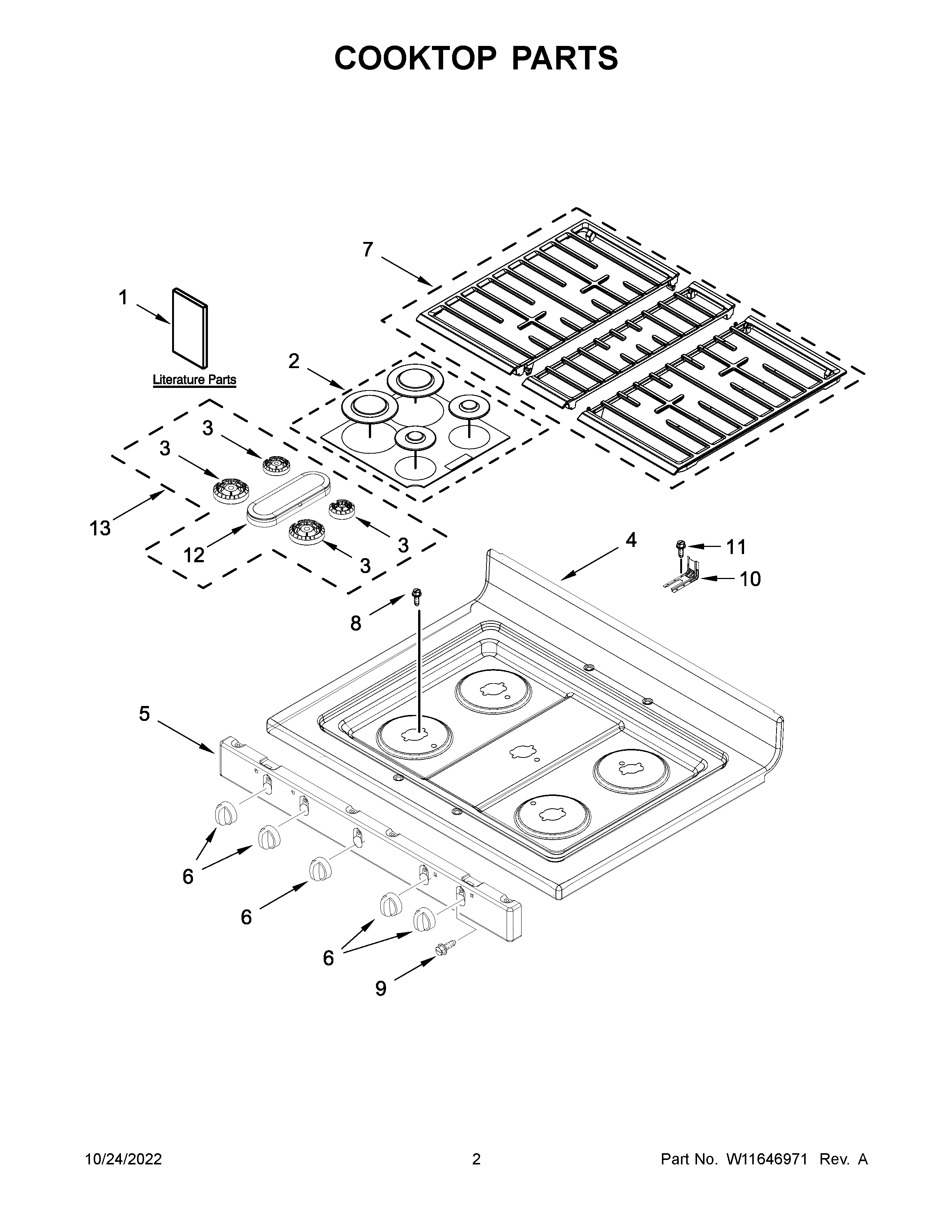

WFG525S0JS5 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11645866 Whirlpool Wire Harness
NI	W11457167 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11244557 Whirlpool Screw
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1B	WIRING DIAGRAM
1	QUICK START GUIDE
1A	OWNER'S MANUAL
2	W11455147 Whirlpool Surface Burner Cap
3	W11435630 Whirlpool Oven Burner Head
3A	W11435659 Whirlpool Burner Head
3B	W11435657 Whirlpool Burner Head
4	W11454367 Whirlpool Cooktop
5	W11159626 Whirlpool Manifold Panel
6	W11620567 Whirlpool Knob
7	W11252165 Whirlpool Burner Grate
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	W11475513 Whirlpool Top Burner Assembly
13	W11662402 Whirlpool Range Burner Head
