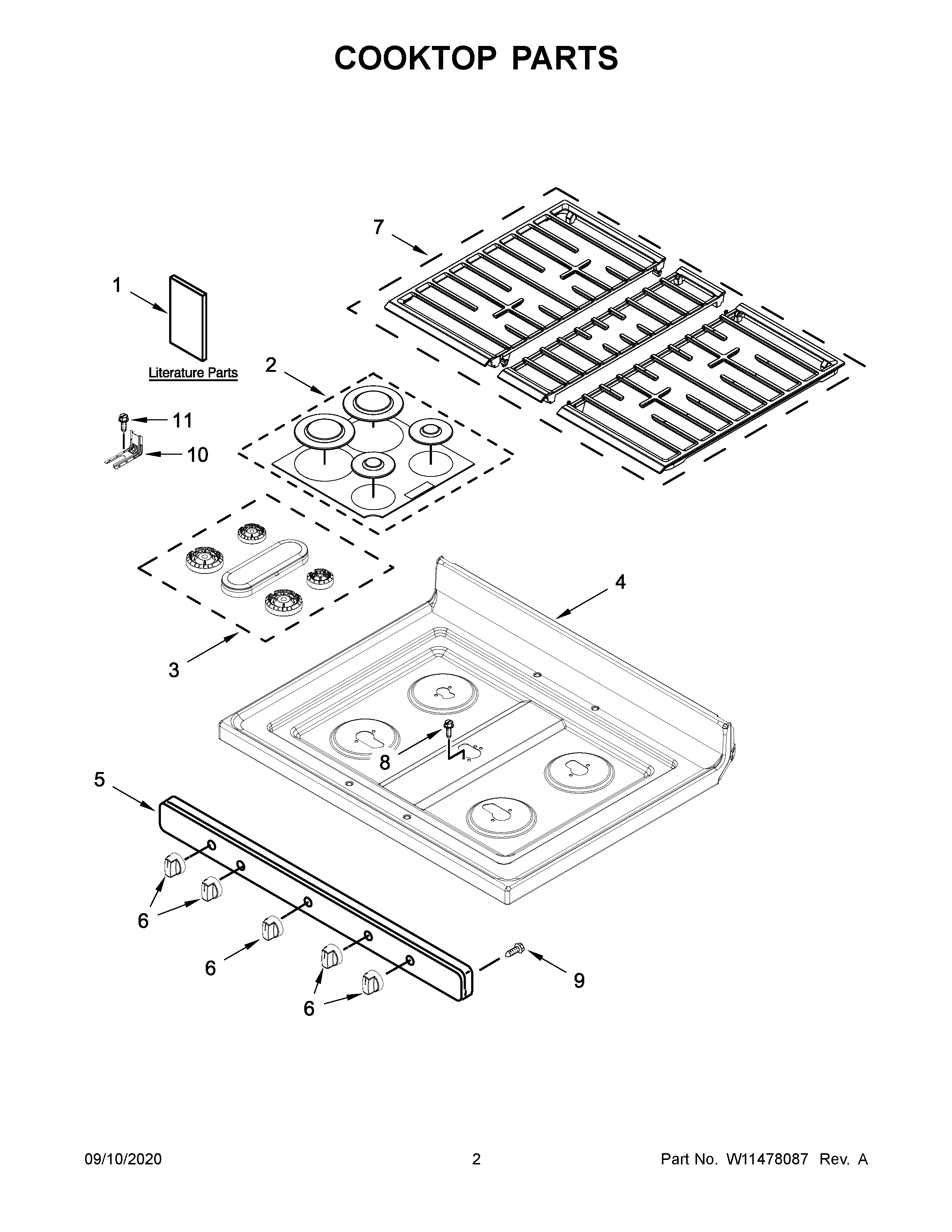

WFG525S0JT1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10842520 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	SCREW, ANTI-TIP KIT
NI	3196896 Whirlpool Clip
NI	W11244557 Whirlpool Screw
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11161843 Whirlpool Wire Harness
1C	DIAGRAM, WIRING
1B	SHEET, TECH
1	INSTALLATION INSTRUCTIONS
1A	USE AND CARE GUIDE
2	W11455147 Whirlpool Surface Burner Cap
3	W11662402 Whirlpool Range Burner Head
4	W11478145 Whirlpool Cooktop
5	W11165123 Whirlpool Molded Panel
6	W11023143 Whirlpool Knob
7	W11252165 Whirlpool Burner Grate
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
