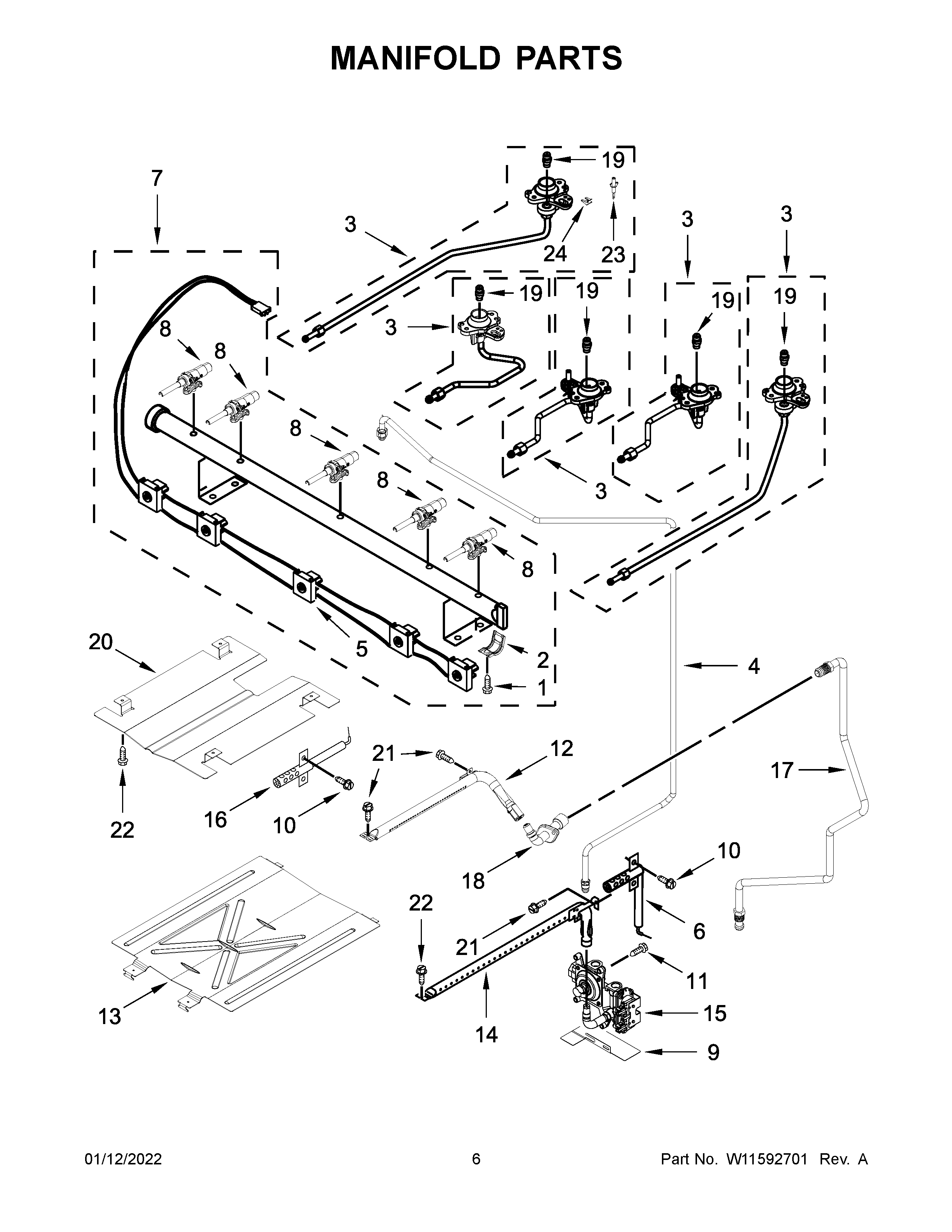

WFG525S0JT2 04 – MANIFOLD PARTS

Products

Position	Product
NI	W11560165 Whirlpool Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10758273 Whirlpool Orifice
NI	W11126051 Whirlpool Conversion Kit
NI	WPW10400495 Whirlpool Orifice Assembly
1	W10295997 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3	W11562501 Whirlpool Orifice Holder
3D	W11557818 Whirlpool Range Orifice Holder
3B	W11557816 Whirlpool Orifice Holder
3C	W11557817 Whirlpool Orifice Holder
3A	W11557815 Whirlpool Orifice Holder
4	W11680399 Whirlpool Gas Tubing
5	W11233074 Whirlpool Wire Harness
6	W11524031 Whirlpool Oven Igniter
7	W11347745 Whirlpool Manifold
8B	W11352015 Whirlpool Range Burner Valve
8	W11628784 Whirlpool Burner Valve
8A	W11699929 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11684507 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W11449506 Whirlpool Gas Valve
16	WPW10333842 Whirlpool Oven Igniter
17	W10420040 Whirlpool Gas Tubing
18	W11435700 Whirlpool Fitting Component
19C	W11485874 Whirlpool Orifice
19B	W11712434 Whirlpool Orifice
19A	W11485873 Whirlpool Orifice
19	W11700316 Whirlpool Orifice
20	W10137062 Whirlpool Burner Baffle
21	3196265 Whirlpool Oven Screw
22	SCREW
23A	W11453920 Whirlpool Surface Igniter
23	W11453940 Whirlpool Surface Igniter
24	W11684564 Whirlpool Clip Assembly
