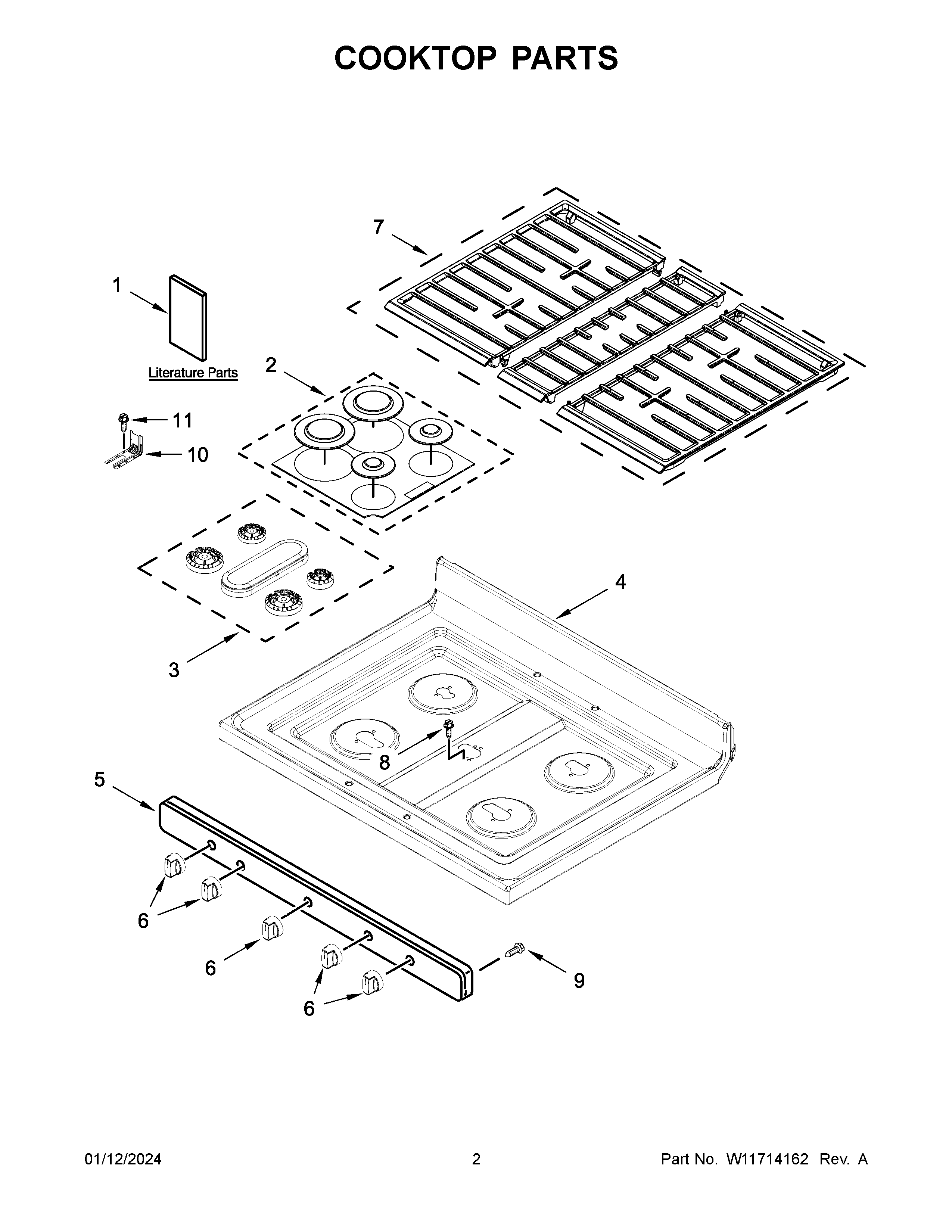

WFG525S0JT6 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11645866 Whirlpool Wire Harness
NI	W11457167 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11244557 Whirlpool Screw
1B	WIRING DIAGRAM
1	QUICK START GUIDE
1A	OWNER'S MANUAL
2	W11455147 Whirlpool Surface Burner Cap
3	W11662402 Whirlpool Range Burner Head
4	W11478145 Whirlpool Cooktop
5	W11165123 Whirlpool Molded Panel
6	KNOB, CONTROL (BISCUIT)
7	W11252165 Whirlpool Burner Grate
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
