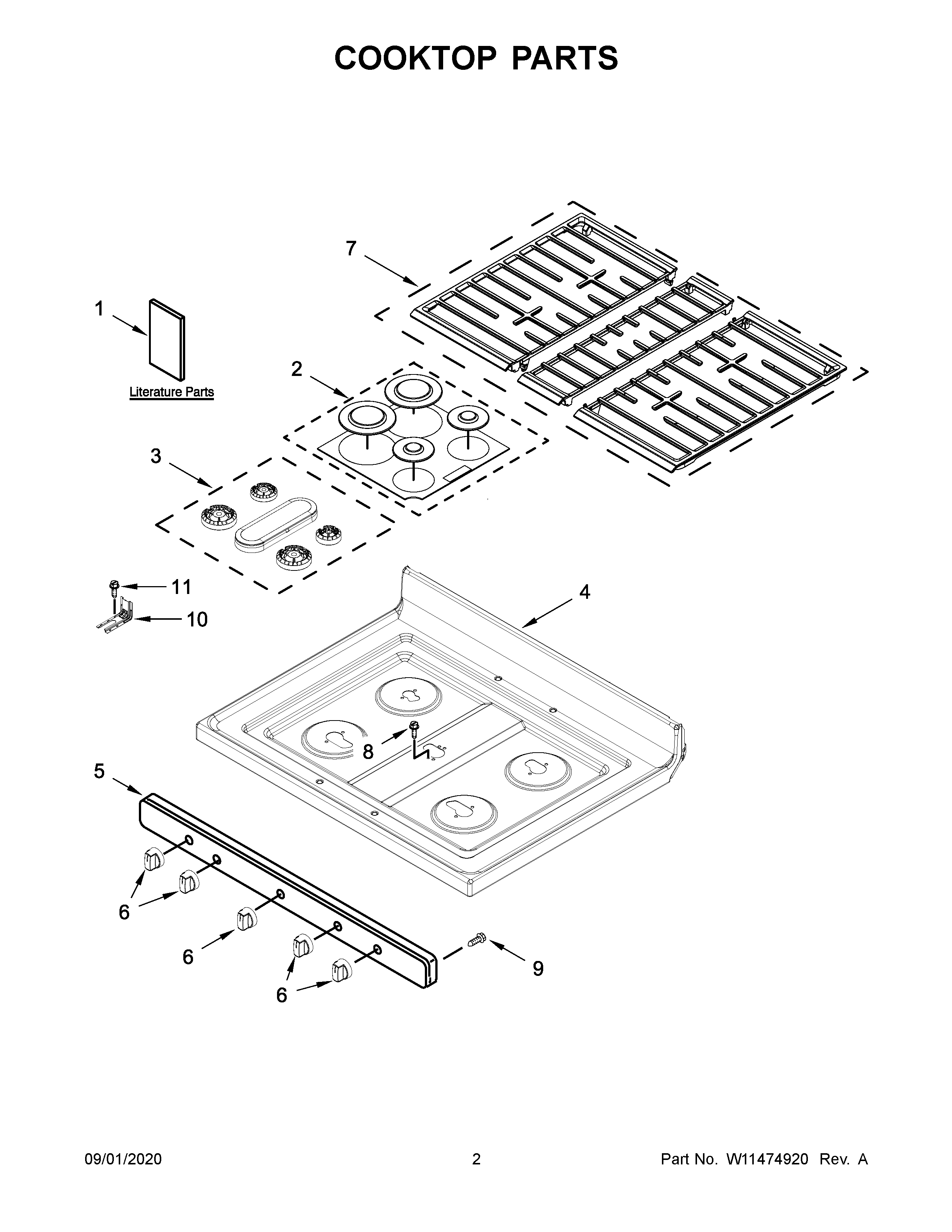

WFG525S0JV1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	3196896 Whirlpool Clip
NI	W11161843 Whirlpool Wire Harness
NI	W10842520 Whirlpool Wire Harness
NI	W11244557 Whirlpool Screw
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W10334923 Whirlpool Clip
1C	DIAGRAM, WIRING
1B	SHEET, TECH
1	INSTALLATION INSTRUCTIONS
1A	USE AND CARE GUIDE
2	W11455147 Whirlpool Surface Burner Cap
3	W11662402 Whirlpool Range Burner Head
4	W11454367 Whirlpool Cooktop
5	W11165142 Whirlpool Manifold Panel
6	KNOB
7	W11252165 Whirlpool Burner Grate
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
