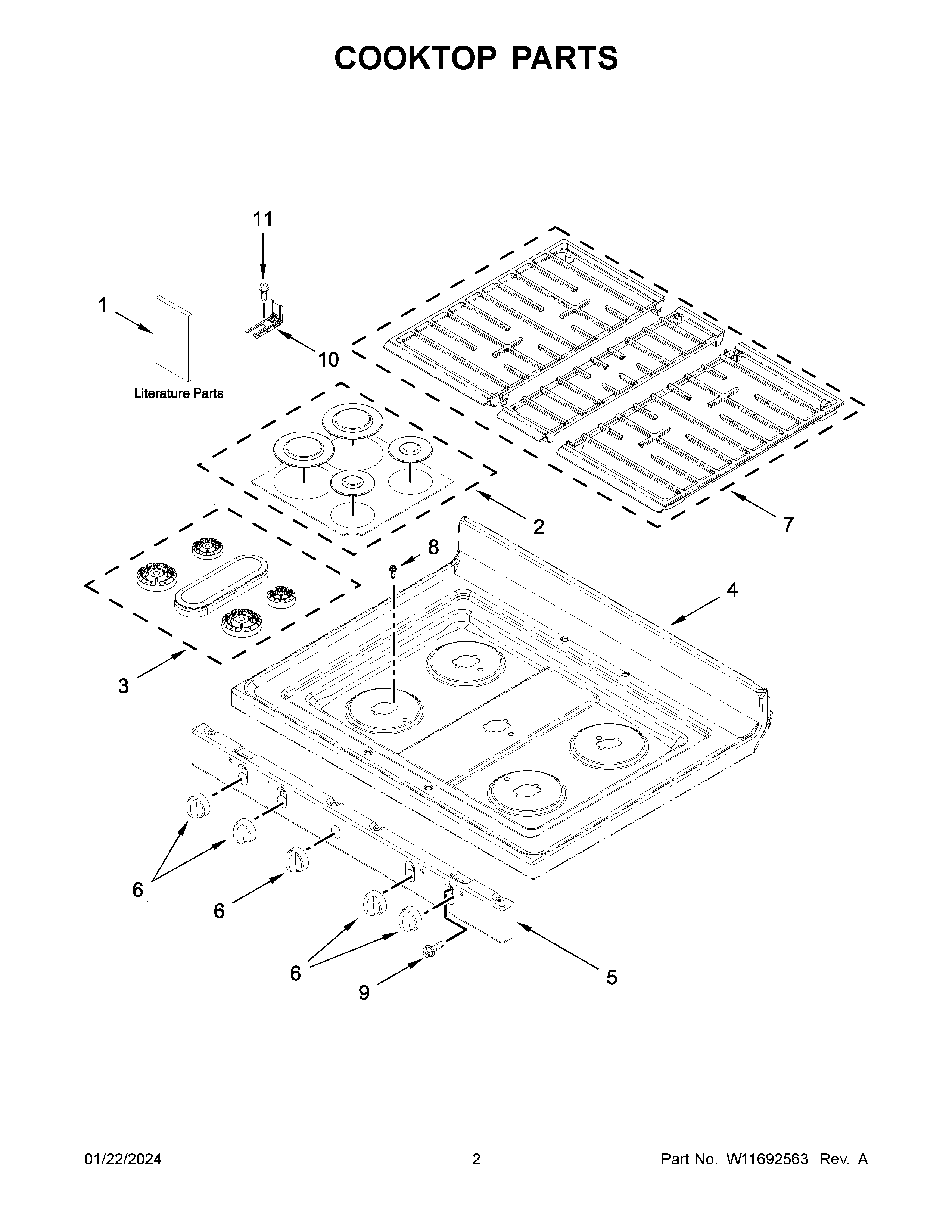

WFG525S0JV6 02 – COOKTOP PARTSadmin2025-04-26T11:16:49+00:00WFG525S0JV6 02 – COOKTOP PARTS ProductsPositionProductNIFOLLOWING PARTS NOT ILLUSTRATEDNIW11645866 Whirlpool Wire HarnessNIW11457167 Whirlpool Wire HarnessNIW10334923 Whirlpool ClipNI3196896 Whirlpool ClipNI16515 Whirlpool ClipNI3400964 Whirlpool Oven Clip1AOWNER'S MANUAL1WIRING DIAGRAM2W11455147 Whirlpool Surface Burner Cap3W11662402 Whirlpool Range Burner Head4W11454367 Whirlpool Cooktop5AW11165142 Whirlpool Manifold Panel5W11165140 Whirlpool Manifold Panel6W11620567 Whirlpool Knob6AW11620736 Whirlpool Knob7W11252165 Whirlpool Burner Grate8W11241230 Whirlpool Screw9WP3196557 Whirlpool Screw10W11447673 Whirlpool Range Tip Anchor11SCREW, ANTI-TIP KIT
