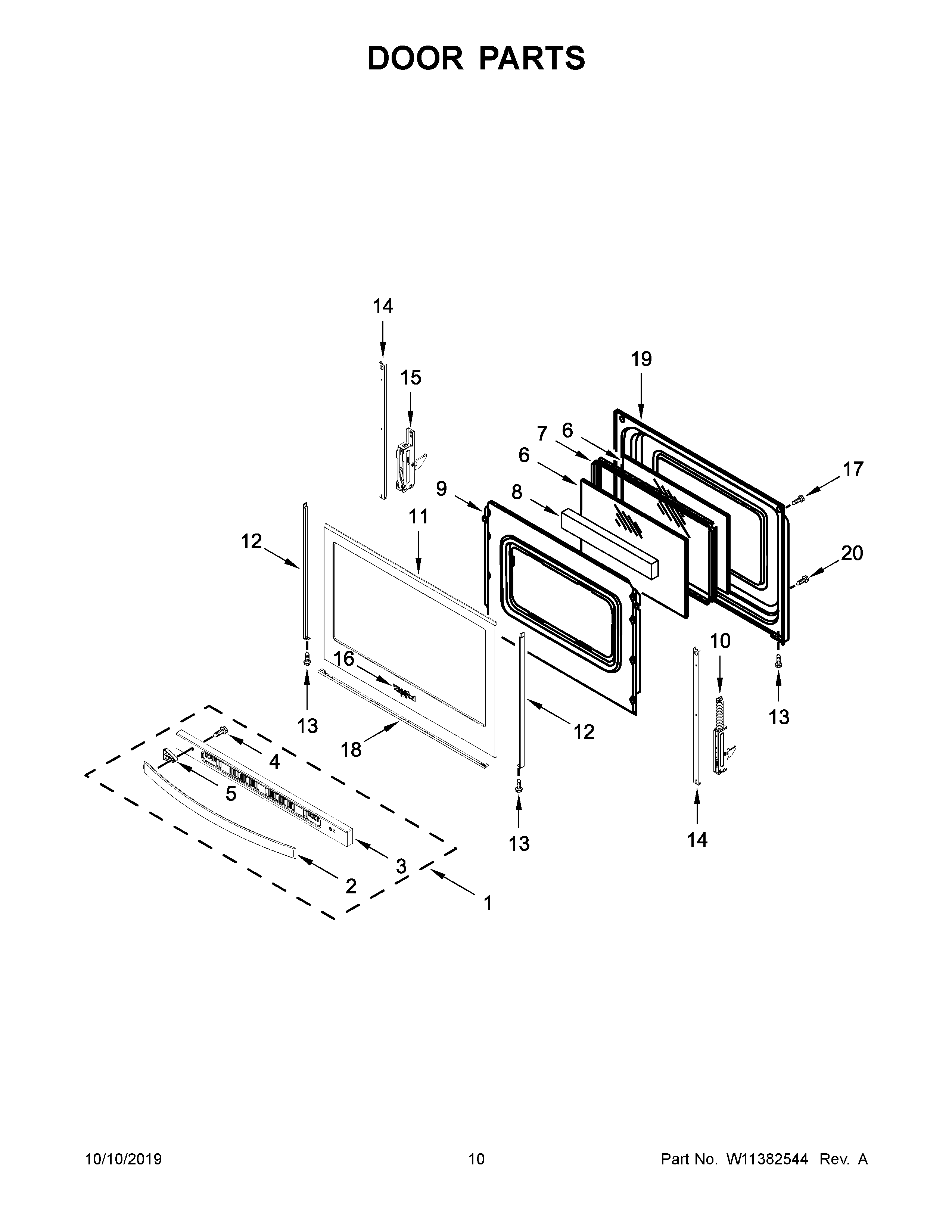

WFG525S0JW0 06 – DOOR PARTS

WFG525S0JW0 06 – DOOR PARTS

Written by

in

WFG525S0JW0 06 – DOOR PARTS

Products

PositionProduct
1AW11590861 Whirlpool Door Handle
1W11553213 Whirlpool Door Handle
2W11107394 Whirlpool Door Handle
2AW11107407 Whirlpool Door Handle
3TRIM-VENT
3AW10817433 Whirlpool Vent Trim
4W10831019 Whirlpool Stove Door Screw
5CABINET (NOT A SERVICEABLE PART)
6W11159620 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299226 Whirlpool Door Hinge
11W11702167 Whirlpool Door Glass
11AWPW10409945 Whirlpool Glass Door
12CWP8523166 Whirlpool Door Trim
12BWP8523172 Whirlpool Left Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12AW10761014 Whirlpool Right Door Trim
13WP355214 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10299227 Whirlpool Range Door Hinge
16W11178521 Whirlpool Dishwasher Nameplate
17WPW10200660 Whirlpool Range Oven Door Handle Screw
18WP8523177 Whirlpool Door Trim Assembly
18AWP8523175 Whirlpool Door Trim Assembly
19WP9761344 Whirlpool Door Liner
20WPW10031790 Whirlpool Screw
