WFG525S0JW1 06 – DOOR PARTS

Products

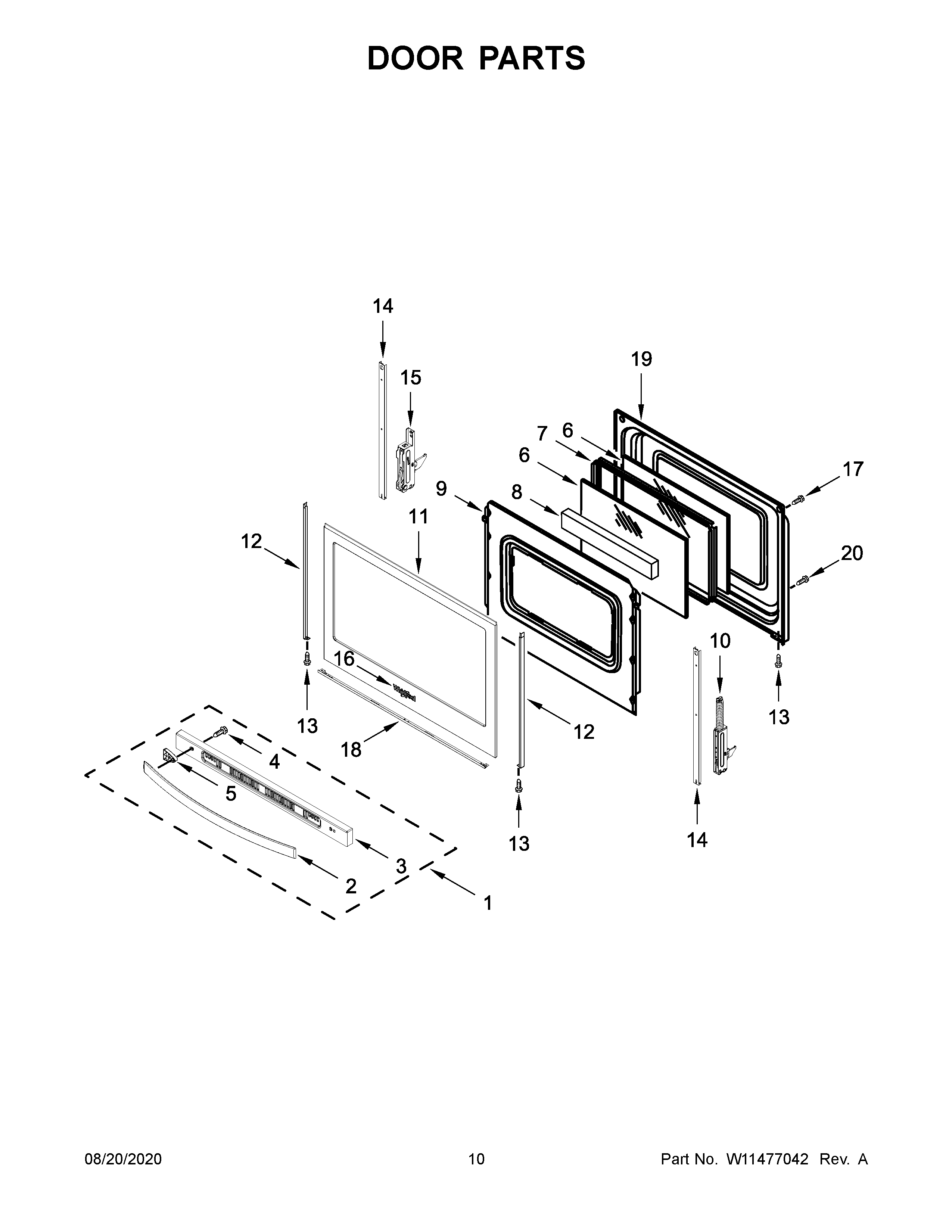

Position	Product
1A	W11590861 Whirlpool Door Handle
1	W11553213 Whirlpool Door Handle
2	W11107394 Whirlpool Door Handle
2A	W11107407 Whirlpool Door Handle
3	TRIM-VENT
3A	W10817433 Whirlpool Vent Trim
4	W10831019 Whirlpool Stove Door Screw
5	CABINET (NOT A SERVICEABLE PART)
6	W11159620 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WPW10299226 Whirlpool Door Hinge
11	W11702167 Whirlpool Door Glass
11A	WPW10409945 Whirlpool Glass Door
12C	WP8523166 Whirlpool Door Trim
12B	WP8523172 Whirlpool Left Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12A	W10761014 Whirlpool Right Door Trim
13	WP355214 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10299227 Whirlpool Range Door Hinge
16	W11178521 Whirlpool Dishwasher Nameplate
17	WPW10200660 Whirlpool Range Oven Door Handle Screw
18	WP8523177 Whirlpool Door Trim Assembly
18A	WP8523175 Whirlpool Door Trim Assembly
19	WP9761344 Whirlpool Door Liner
20	WPW10031790 Whirlpool Screw
