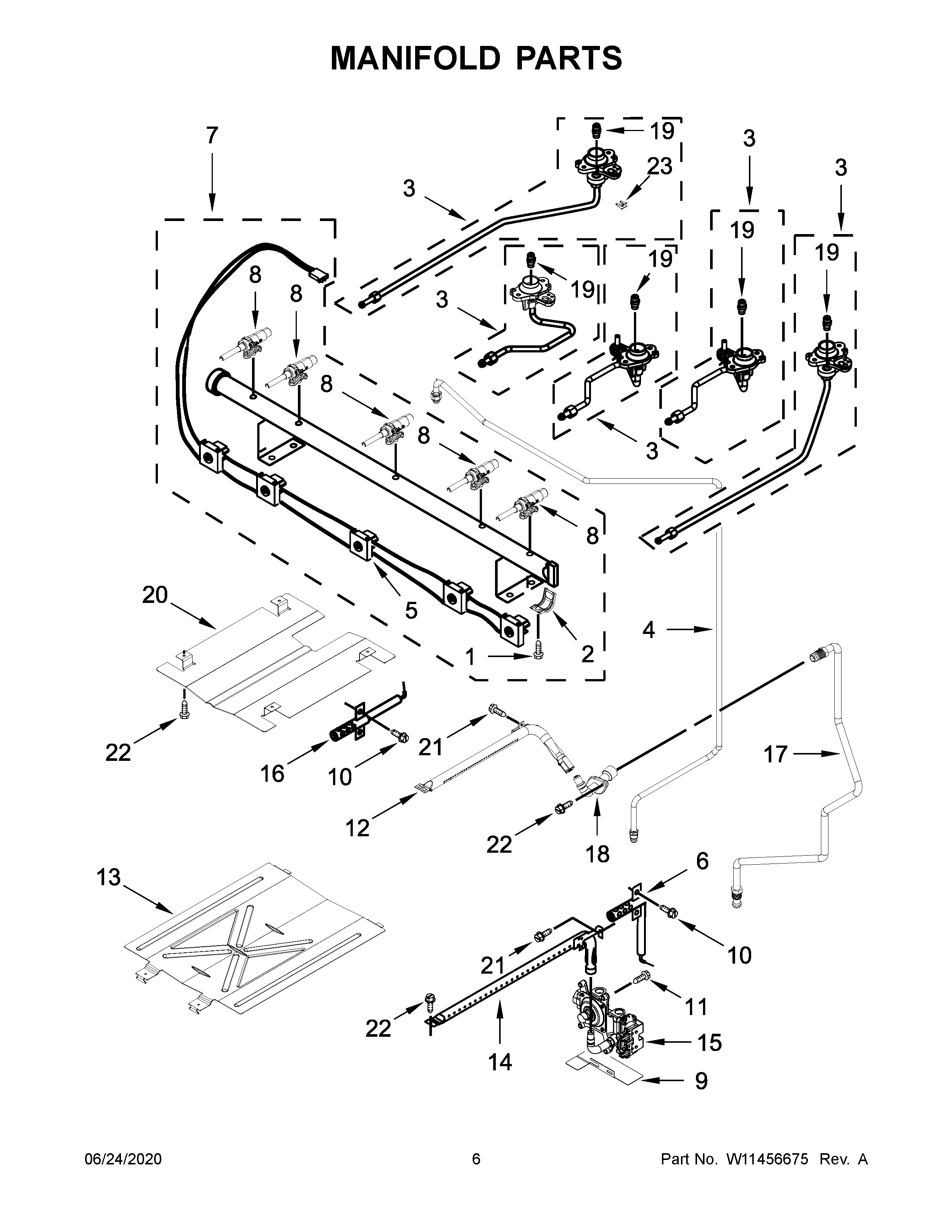

WFG525S0JZ1 04 – MANIFOLD PARTS

Products

Position	Product
NI	W11453918 Whirlpool Gas Range Conversion Kit
NI	WPW10400495 Whirlpool Orifice Assembly
NI	W11126051 Whirlpool Conversion Kit
NI	W10758273 Whirlpool Orifice
NI	CABINET (NOT A SERVICEABLE PART)
1	W10295997 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3D	W11453942 Whirlpool Orifice Holder
3C	W11453921 Whirlpool Orifice Holder
3B	W11453919 Whirlpool Holder Orifice
3A	W11453941 Whirlpool Orifice Holder
3	W11451468 Whirlpool Orifice Holder
4	W11680399 Whirlpool Gas Tubing
5	W11233074 Whirlpool Wire Harness
6	WP9758079 Whirlpool Oven Igniter
7	W11347745 Whirlpool Manifold
8B	W11352015 Whirlpool Range Burner Valve
8	W11628784 Whirlpool Burner Valve
8A	W11699929 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11684507 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W11449506 Whirlpool Gas Valve
16	WPW10333842 Whirlpool Oven Igniter
17	W10420040 Whirlpool Gas Tubing
18	W11435700 Whirlpool Fitting Component
19	W11428753 Whirlpool Orifice
19C	W11429345 Whirlpool Orifice
19B	W11677633 Whirlpool Spud Orifice
19A	W10849720 Whirlpool Orifice Assembly
20	W10137062 Whirlpool Burner Baffle
21	3196265 Whirlpool Oven Screw
22	SCREW
23	W11684564 Whirlpool Clip Assembly
